3rd Row Seat
5.4L Efi Ohc V8 Engine (Std)
3rd Row Seating
New Arrival
MECHANICAL: 5.4L EFI OHC V8 engine
MECHANICAL: Rear-wheel drive
MECHANICAL: 72 amp-hour (650 CCA) maintenance-free battery
MECHANICAL: 130 amp alternator
MECHANICAL: 9100# GVWR
MECHANICAL: 4600# capacity twin I-beam front/6340# capacity semi-floating rear axles
MECHANICAL: 3400# capacity front/6195# capacity rear springs
MECHANICAL: (5) LT245/75R16E all-season SBR BSW tires
MECHANICAL: 16" x 7.0" 8-hole steel wheels w/full sport wheel covers
MECHANICAL: Pwr steering
MECHANICAL: Pwr 4-wheel disc brakes
MECHANICAL: 4-wheel anti-lock braking system (ABS)
MECHANICAL: 35.0 gallon fuel tank
EXTERIOR: Chrome front/rear bumpers
EXTERIOR: Grille w/Ford oval
EXTERIOR: Halogen aero headlights
EXTERIOR: Aerotype pwr mirrors w/RH convex lens
EXTERIOR: Solar tinted glass
EXTERIOR: Interval windshield wipers
EXTERIOR: 60/40 hinged swing-out side cargo door
EXTERIOR: Insulation pkg-inc: dash sound absorber
INTERIOR: 15-passenger seating
INTERIOR: Color-keyed cloth high-back captain chairs
INTERIOR: (3) 3-passenger color-keyed cloth intermediate bench seats
INTERIOR: (1) 4-passenger color-keyed cloth rear bench seat
INTERIOR: Front inboard armrest
INTERIOR: Color-keyed engine cover-inc: dual bin stowage, (4) cup holders
INTERIOR: Color-keyed full-length carpeting
INTERIOR: Front carpeted floor mats
INTERIOR: Black plastic stepwell pads
INTERIOR: Tilt steering wheel
INTERIOR: Pwr door locks
INTERIOR: Pwr windows
INTERIOR: Speed control
INTERIOR: Front/rear high capacity air conditioning w/auxiliary heater, overhead ducts
INTERIOR: Electronic AM/FM stereo radio w/cassette-inc: digital clock, (6) speakers
INTERIOR: Color-keyed instrument panel-inc: 12-volt pwr point, tachometer
INTERIOR: Color-keyed plastic front door trim w/integral map compartments
INTERIOR: Color-keyed side/rear quarter trim panels
INTERIOR: Color-keyed plastic side/rear door trim
INTERIOR: Black cowl side trim panels
INTERIOR: Day/night rearview mirror
INTERIOR: Color-keyed coat hooks
INTERIOR: Color-keyed full-length acoustical cloth headliner
INTERIOR: Color-keyed cloth sun visors w/dual illuminated vanity mirrors
INTERIOR: Dual A-pillar grab handles
INTERIOR: Reading lights
INTERIOR: Illuminated entry
INTERIOR: Rear 12-volt pwr point
INTERIOR: Rear cargo light
INTERIOR: Courtesy light switches for all doors
SAFETY: 4-wheel anti-lock braking system (ABS)
SAFETY: Driver & front passenger airbags
SAFETY: Front height adjustable 3-point safety belts
SAFETY: Rear outboard 3-point safety belts
SAFETY: Electric horn

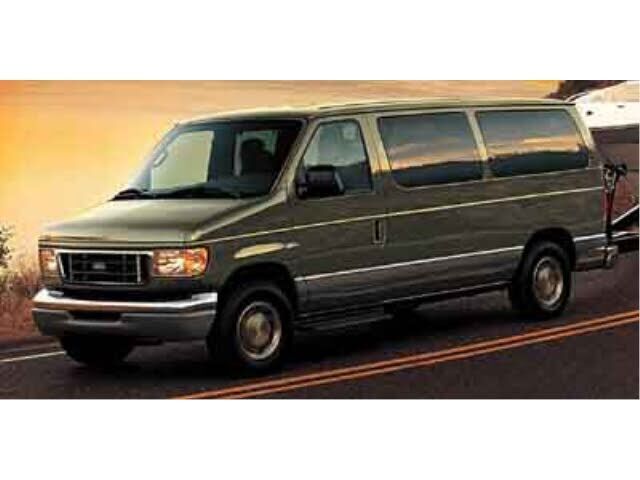

Ford Econoline Wagon
Body Style: Ext Passenger Van
Body Code: 138.0" WB
Drivetrain: Rear Wheel Drive
Trans Order Code: 44E
Trans Type: 4
Trans Description Cont.: Automatic w/OD
First Gear Ratio (:1): 2.71
Second Gear Ratio (:1): 1.54
Third Gear Ratio (:1): 1.00
Fourth Gear Ratio (:1): 0.71
Reverse Ratio (:1): 2.18
Passenger Capacity: 15
Front Head Room (in): 42.5
Front Leg Room (in): 40.0
Front Shoulder Room (in): 68.4
Front Hip Room (in): 65.6
Second Head Room (in): 40.2
Second Leg Room (in): 36.9
Second Shoulder Room (in): 70.5
Second Hip Room (in): 66.5
Third Head Room (in): 40.1
Third Leg Room (in): 41.4
Third Shoulder Room (in): 71.2
Third Hip Room (in): 66.9
Fourth Head Room (in): 39.6
Fourth Leg Room (in): 40.8
Fourth Shoulder Room (in): 69.6
Fourth Hip Room (in): 66.2
Fifth Head Room (in): 38.0
Fifth Leg Room (in): 38.5
Fifth Shoulder Room (in): 68.1
Fifth Hip Room (in): 66.0
Gross Axle Wt Rating - Front (lbs): 4600
Gross Axle Wt Rating - Rear (lbs): 6340
Curb Weight - Front (lbs): 2932
Curb Weight - Rear (lbs): 3254
Gross Vehicle Weight Rating Cap (lbs): 9100
Gross Combined Wt Rating (lbs): 12,000
Dead Weight Hitch - Max Trailer Wt. (lbs): 5,700
Dead Weight Hitch - Max Tongue Wt. (lbs): 570
Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
Engine Order Code: 99L
Engine Type: Gas V8
Displacement: 5.4L/330
Fuel System: EFI
SAE Net Horsepower @ RPM: 255 @ 4500
SAE Net Torque @ RPM: 350 @ 2500
Engine Oil Cooler: Yes
Cold Cranking Amps @ 0° F (Primary): 650
Maximum Alternator Capacity (amps): 130
Maximum Alternator Watts: 1950
Total Cooling System Capacity (qts): 29.8
Frame Type: 1 Channel Ladder
Suspension Type - Front: Coil
Suspension Type - Rear: 2-Stage Multi-Leaf
Spring Capacity - Front (lbs): 3550
Spring Capacity - Rear (lbs): 6195
Axle Type - Front: Twin-I-Beam
Axle Type - Rear: Ford Semi-Floating
Axle Capacity - Front (lbs): 4600
Axle Capacity - Rear (lbs): 6340
Axle Ratio (:1) - Rear: 3.55
Shock Absorber Diameter - Front (mm): 35
Shock Absorber Diameter - Rear (mm): 35
Stabilizer Bar Diameter - Front (in): 1.00
Front Tire Order Code: T38
Rear Tire Order Code: T38
Spare Tire Order Code: T38
Front Tire Size: LT245/75R16E
Rear Tire Size: LT245/75R16E
Spare Tire Size: LT245/75R16E
Front Tire Capacity (lbs): 3042
Rear Tire Capacity (lbs): 3042
Spare Tire Capacity (lbs): 3042
Revolutions/Mile @ 45 mph - Front: 677
Revolutions/Mile @ 45 mph - Rear: 677
Revolutions/Mile @ 45 mph - Spare: 677
Front Wheel Size (in): 16 x 7
Rear Wheel Size (in): 16 x 7
Spare Wheel Size (in): 16 x 7
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Pwr
Steering Ratio (:1), On Center: 17.0
Turning Diameter - Curb to Curb (ft): 48.0
Turning Diameter - Wall to Wall (ft): 50.2
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
Rear Brake Rotor Diam x Thickness (in): 12.9 x 2.36
Fuel Tank Capacity, Approx (gal): 35.0
Fuel Tank Location: Midship
Wheelbase (in): 138.0
Length, Overall w/rear bumper (in): 232.0
Width, Max w/o mirrors (in): 79.3
Height, Overall (in): 84.1
Overhang, Front (in): 30.1
Overhang, Rear w/bumper (in): 63.8
Ground to Top of Load Floor (in): 30.2
Ground Clearance, Front (in): - TBD -
Ground Clearance, Rear (in): - TBD -
Rear Door Opening Height (in): 48.3
Rear Door Opening Width (in): 51.4
Side Door Opening Height (in): 48.3
Side Door Opening Width (in): 47.1
Step Up Height - Front (in): - TBD -
Step Up Height - Side (in): - TBD -
Rear Door Type: Panel
Side Door Type: Hinged
Cargo Area Length @ Floor to Console (in): - TBD -
Cargo Area Length @ Floor to Seat 1 (in): 140.4
Cargo Area Length @ Floor to Seat 2 (in): - TBD -
Cargo Area Length @ Floor to Seat 3 (in): - TBD -
Cargo Area Length @ Floor to Seat 4 (in): - TBD -
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): 51.3
Cargo Box (Area) Height (in): 52.5
Cargo Volume to Seat 1 (ft³): - TBD -
Cargo Volume to Seat 2 (ft³): - TBD -
Cargo Volume to Seat 3 (ft³): - TBD -
Cargo Volume to Seat 4 (ft³): - TBD -
