Voice-Activated Touchscreen Navigation -Inc: Pinch-To-Zoom Capability
SiriusXM Traffic And Travel Link
Note: SiriusXM Traffic And Travel Link Includes A 5-Year Prepaid Subscription
SiriusXM Traffic And Travel Link Service Is Not Available In Alaska Or Hawaii
SiriusXM Audio And Data Services Each Require A Subscription Sold Separately
Or As A Package
By Sirius Xm Radio Inc
If You Decide To Continue Service After Your Trail
The Subscription Plan You Choose Will Automatically Renew Thereafter And You Will Be Charged According To Your Chosen Payment Method At Then-Current Rates
Fees And Taxes Apply
To Cancel You Must Call SiriusXM At 1-866-635-2349
See SiriusXM Customer Agreement For Complete Terms At Www.SiriusXM.Com
All Fees And Programming Subject To Change
Sirius
Xm And All Related Marks And Logos Are The Trademarks Of Sirius Xm Radio Inc *Gross*
Reverse Sensing System
Front License Plate Bracket -Inc: Standard In States Requiring 2 License Plates
Optional To All Others
Twin Panel Moonroof
Xlt Power Equipment Group -Inc: Led Box Lighting
Power-Sliding Rear Window
Privacy Glass
Overhead Console
Dome Lamp Replacement And Front And Back Map Lamps
Rear Window Defroster
110V/400W Outlet *Gross*
Panoramic Roof
Max Trailer Tow Package -Inc: Max Towing Capability Up To Tbd And Upgraded Rear Bumper
Pro Trailer Backup Assist
Integrated Trailer Brake Controller
Electronic Locking W/3.55 Axle Ratio
Class Iv Trailer Hitch Receiver
Towing Capability Up To 6
000 Lbs On 3.3L V6 Pfdi Engine (99B) And 2.7L Ecoboost Engine (99P) Or Up To 7
000 Lbs On 3.5L Ecoboost Engine (994)
3.5L Ecoboost High Output Engine (99G) And 5.0L V8 Engine (995)
Smart Trailer Tow Connector And 4-Pin/7-Pin Wiring Harness
Extended Range 36 Gallon Fuel Tank
Engine Oil Cooler
Upgraded Front Stabilizer Bar Ordering The Max Trailer Tow Package Does Not Include Trailer Tow Mirrors. Trailer Tow Mirrors Are A Standalone Option And Must Be Ordered Separately. (Option Code: 54Y/59S). Max Gcwr/Max Tow Only Achieved On Supercrew Equipped With 20" Wheels. These Trucks Will Also Come Equipped With Max Springs
Steering Gear And Upgraded Stabilizer Bar For This Configuration.
Fx4 Off-Road Package -Inc: Off-Road Tuned Front Shock Absorbers
Skid Plates (Fleet)
Fuel Tank
Transfer Case And Front Differential
4X4 Fx4 Off-Road Bodyside Decal
Hill Descent Control
Tray Style Floor Liner
Medium Earth Gray
Cloth 40/Console/40 Front Seats -Inc: 4-Way Adjustable Driver/Passenger Headrests
Flow-Through Console W/Column Shift And 2Nd Outlet In Console When Ordered W/110V/400W Outlet (91V) W/302A-Inc: Power Driver/Passenger Lumbar W/(954
(!301A))&(!302A)-Inc: Manual Driver/Passenger Lumbar W/Paint&301A-Inc: Power Driver/Manual Passenger Lumbar
Navigation System
Magnetic Metallic
Tires: P275/55R20 Bsw At -Inc: 275/65R18 Owl All-Season/All-Terrain Spare Tire
Wheels: 20" Chrome-Like Pvd
Transmission: Electronic 10-Speed Automatic -Inc: Selectable Drive Modes: Normal/Tow-Haul/Snow-Wet/Ecoselect/Sport
Engine: 3.5L V6 Ecoboost -Inc: Auto Start-Stop Technology
Gvwr: 7
000 Lbs Payload Package
3.31 Axle Ratio
Chrome Wheels
FX4 OFF-ROAD PACKAGE
VOICE-ACTIVATED TOUCHSCREEN NAVIGATION
XLT POWER EQUIPMENT GROUP
Turbocharged
Dual Clutch
New Arrival
auto start-stop technology, GVWR: 7,000 lbs Payload Package, 3.31 Axle Ratio: 994-R
XL9-R
64L-R
4-way adjustable driver/passenger headrests, flow-through console w/column shift and 2nd outlet in console when ordered w/110V/400W outlet (91V) w/302Apower driver/passenger lumbar w/(954,(!301A))&(!302A)manual driver/passenger lumbar w/PAINT&301Apower driver/manual passenger lumbar: UG-I-R
Off-Road Tuned Front Shock Absorbers, Skid Plates (Fleet), fuel tank, transfer case and front differential, 4x4 FX4 Off-Road Bodyside Decal, Hill Descent Control, Tray Style Floor Liner: 55A-R
max towing capability up to TBD and upgraded rear bumper, Pro Trailer Backup Assist, Integrated Trailer Brake Controller, Electronic Locking w/3.55 Axle Ratio, Class IV Trailer Hitch Receiver, towing capability up to 6,000 lbs on 3.3L V6 PFDI engine (99B) and 2.7L EcoBoost engine (99P) or up to 7,000 lbs on 3.5L EcoBoost engine (994), 3.5L EcoBoost High Output engine (99G) and 5.0L V8 engine (995), smart trailer tow connector and 4-pin/7-pin wiring harness, Extended Range 36 Gallon Fuel Tank, Engine Oil Cooler, Upgraded Front Stabilizer Bar Ordering the does not include Trailer Tow Mirrors. Trailer Tow Mirrors are a standalone option and must be ordered separately. (Option Code: 54Y/59S). Max GCWR/max tow only achieved on SuperCrew equipped with 20" wheels. These trucks will also come equipped with max springs, steering gear and upgraded stabilizer bar for this configuration.: 53C-B-0-R
LED Box Lighting, Power-Sliding Rear Window, privacy glass, overhead console, dome lamp replacement and front and back map lamps, Rear Window Defroster, 110V/400W Outlet *GROSS*: 68X-0-R
43V-0
76R-R
pinch-to-zoom capability, SiriusXM Traffic and Travel Link, Note: SiriusXM Traffic and Travel Link includes a 5-year prepaid subscription, SiriusXM Traffic and Travel Link service is not available in Alaska or Hawaii, SiriusXM audio and data services each require a subscription sold separately, or as a package, by Sirius XM Radio Inc, If you decide to continue service after your trail, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates, Fees and taxes apply, To cancel you must call SiriusXM at 1-866-635-2349, See SiriusXM customer agreement for complete terms at www.siriusxm.com, All fees and programming subject to change, Sirius, XM and all related marks and logos are the trademarks of Sirius XM Radio Inc *GROSS*: 50N-0-R
MECHANICAL: 3.73 Axle Ratio
MECHANICAL: GVWR: 6,500 lbs Payload Package
MECHANICAL: Transmission w/Driver Selectable Mode and SelectShift Sequential Shift Control
MECHANICAL: Electronic Transfer Case
MECHANICAL: Part-Time Four-Wheel Drive
MECHANICAL: 70-Amp/Hr 610CCA Maintenance-Free Battery w/Run Down Protection
MECHANICAL: 200 Amp Alternator
MECHANICAL: Towing Equipment -inc: Trailer Sway Control
MECHANICAL: Trailer Wiring Harness
MECHANICAL: 1680# Maximum Payload
MECHANICAL: HD Gas-Pressurized Shock Absorbers
MECHANICAL: Front Anti-Roll Bar
MECHANICAL: Electric Power-Assist Speed-Sensing Steering
MECHANICAL: Single Stainless Steel Exhaust
MECHANICAL: 26 Gal. Fuel Tank
MECHANICAL: Auto Locking Hubs
MECHANICAL: Double Wishbone Front Suspension w/Coil Springs
MECHANICAL: Solid Axle Rear Suspension w/Leaf Springs
MECHANICAL: 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
EXTERIOR: Regular Box Style
EXTERIOR: Steel Spare Wheel
EXTERIOR: Full-Size Spare Tire Stored Underbody w/Crankdown
EXTERIOR: Chrome Rear Step Bumper
EXTERIOR: Chrome Front Bumper w/Body-Colored Rub Strip/Fascia Accent and 2 Tow Hooks
EXTERIOR: Black Side Windows Trim
EXTERIOR: Black Door Handles
EXTERIOR: Fixed Rear Window
EXTERIOR: Variable Intermittent Wipers
EXTERIOR: Aluminum Panels
EXTERIOR: Chrome Grille
EXTERIOR: Tailgate Rear Cargo Access
EXTERIOR: Auto On/Off Reflector Halogen Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off
EXTERIOR: Cargo Lamp w/High Mount Stop Light
EXTERIOR: Headlights-Automatic Highbeams
EXTERIOR: Perimeter/Approach Lights
ENTERTAINMENT: Radio: AM/FM Stereo w/6 Speakers
ENTERTAINMENT: Fixed Antenna
ENTERTAINMENT: Streaming Audio
ENTERTAINMENT: 6 Speakers
ENTERTAINMENT: 2 LCD Monitors In The Front
INTERIOR: 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
INTERIOR: 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
INTERIOR: 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
INTERIOR: Manual Tilt/Telescoping Steering Column
INTERIOR: Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp and Trip Odometer
INTERIOR: Front Cupholder
INTERIOR: Rear Cupholder
INTERIOR: Compass
INTERIOR: Keypad
INTERIOR: Manual Air Conditioning
INTERIOR: HVAC -inc: Underseat Ducts
INTERIOR: Illuminated Locking Glove Box
INTERIOR: Full Cloth Headliner
INTERIOR: Urethane Gear Shifter Material
INTERIOR: Interior Trim -inc: Metal-Look Instrument Panel Insert, Cabback Insulator and Chrome Interior Accents
INTERIOR: Day-Night Rearview Mirror
INTERIOR: 3 12V DC Power Outlets
INTERIOR: Fade-To-Off Interior Lighting
INTERIOR: Cab Mounted Cargo Lights
INTERIOR: Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 1st Row Underseat Storage
INTERIOR: Delayed Accessory Power
INTERIOR: Outside Temp Gauge
INTERIOR: Analog Appearance
INTERIOR: Front Center Armrest w/Storage
INTERIOR: 2 Seatback Storage Pockets
INTERIOR: Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints
INTERIOR: Securilock Anti-Theft Ignition (pats) Immobilizer
INTERIOR: Air Filtration
SAFETY: Electronic Stability Control (ESC) And Roll Stability Control (RSC)
SAFETY: ABS And Driveline Traction Control
SAFETY: Side Impact Beams
SAFETY: Dual Stage Driver And Passenger Seat-Mounted Side Airbags
SAFETY: Ford Co-Pilot360 - Pre-Collision Assist with Automatic Emergency Braking (AEB)
SAFETY: Collision Mitigation-Front
SAFETY: Tire Specific Low Tire Pressure Warning
SAFETY: Dual Stage Driver And Passenger Front Airbags
SAFETY: Airbag Occupancy Sensor
SAFETY: Safety Canopy System Curtain 1st And 2nd Row Airbags
SAFETY: Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
SAFETY: Rear Child Safety Locks
SAFETY: Back-Up Camera

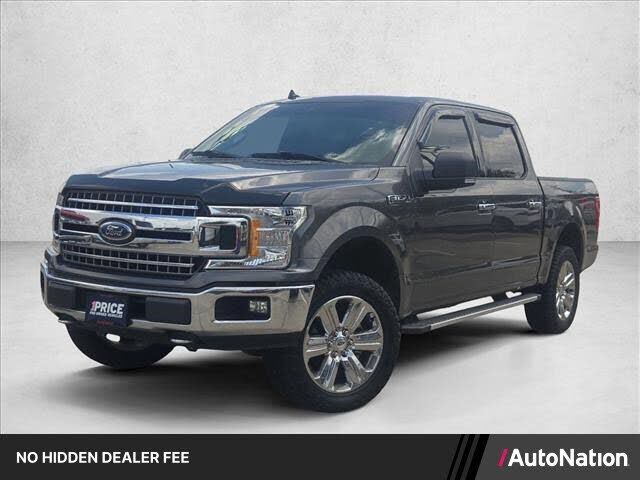

Ford F-150
Body Style: SuperCrew Cab Styleside
Body Code: T
Drivetrain: Four Wheel Drive
Trans Order Code: 44G
Trans Type: 10
Trans Description Cont.: Automatic w/OD
First Gear Ratio (:1): 4.70
Second Gear Ratio (:1): 2.98
Third Gear Ratio (:1): 2.15
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.27
Reverse Ratio (:1): 4.87
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Passenger Capacity: 5
Front Head Room (in): 40.8
Front Leg Room (in): 43.9
Front Shoulder Room (in): 66.7
Front Hip Room (in): 62.5
Second Head Room (in): 40.4
Second Leg Room (in): 43.6
Second Shoulder Room (in): 65.9
Second Hip Room (in): 64.7
Base Curb Weight (lbs): 4804
Gross Axle Wt Rating - Front (lbs): 3525
Gross Axle Wt Rating - Rear (lbs): 3350
Curb Weight - Front (lbs): 2826
Curb Weight - Rear (lbs): 1944
Gross Vehicle Weight Rating Cap (lbs): 6500
Gross Combined Wt Rating (lbs): 18200
Fuel Economy Est-Combined (MPG): 19
EPA Fuel Economy Est - City (MPG): 17
EPA Fuel Economy Est - Hwy (MPG): 23
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 12700
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1270
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10000
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2500
Maximum Trailering Capacity (lbs): 12700
Engine Order Code: 994
Engine Type: Twin Turbo Regular Unleaded V-6
Displacement: 3.5 L/213
Fuel System: Port/Direct Injection
SAE Net Horsepower @ RPM: 375 @ 5000
SAE Net Torque @ RPM: 470 @ 3500
Engine Oil Cooler: Regular Duty
Cold Cranking Amps @ 0° F (Primary): 610
Cold Cranking Amps @ 0° F (2nd): 610
Maximum Alternator Capacity (amps): 200
Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Leaf
Spring Capacity - Front (lbs): 3525
Spring Capacity - Rear (lbs): 3350
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Capacity - Front (lbs): 3750
Axle Capacity - Rear (lbs): 4800
Axle Ratio (:1) - Front: 3.55
Axle Ratio (:1) - Rear: 3.55
Front Tire Order Code: T2P
Rear Tire Order Code: T2P
Spare Tire Order Code: T2P
Front Tire Size: P275/55SR20
Rear Tire Size: P275/55SR20
Spare Tire Size: Full-Size
Front Tire Capacity (lbs): 3650
Rear Tire Capacity (lbs): 4056
Front Wheel Size (in): 20 X 8.5
Rear Wheel Size (in): 20 X 8.5
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 47.8
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.8
Rear Brake Rotor Diam x Thickness (in): 13.7
Fuel Tank Capacity, Approx (gal): 36
Wheelbase (in): 145
Length, Overall (in): 231.9
Width, Max w/o mirrors (in): 79.9
Height, Overall (in): 77.2
Overhang, Front (in): 37.8
Ground to Top of Load Floor (in): 34.6
Ground Clearance, Front (in): 9.3
Ground Clearance, Rear (in): 9.3
Cargo Box Length @ Floor (in): 66
Cargo Box Width @ Top, Rear (in): 65.2
Cargo Box Width @ Floor (in): 65.2
Cargo Box Width @ Wheelhousings (in): 50.6
Cargo Box (Area) Height (in): 21.4
Tailgate Width (in): 60.3
Cargo Volume (ft³): 52.8
