Upfitter Switches (6) -Inc: Located In Overhead Console W/O 99T
43C
99N-Inc: 200 Amp Alternator W/99T-Inc: 240 Amp Alternator (67D) W/O 99T
99N
Requires Extra Extra Heavy-Duty Alternator (67E) When Ordered With 110V/400W Outlet (43C) And Snow Plow Pkg. (473) Or Snow Plow/Camper Pkg. (47B). W/43C&!(99T
99N)
Requires Extra Extra Heavy-Duty Alternator (67E) When Ordered With 110V/400W Outlet (43C) And Snow Plow Pkg. (473) Or Snow Plow/Camper Pkg. (47B) And 6.2L Gas Engine (996); Or Dual Alternators (67A) When Ordered With 110V/400W Outlet (43C) And Snow Plow Pkg. (473) Or Snow Plow/Camper Pkg. (47B) And Diesel Engine (99T); Or Dual Extra Heavy-Duty Alternator (67B) When Ordered With 110V/400W Outlet (43C) And Snow Plow Pkg. (473) Or Snow Plow/Camper Pkg. (47B) And 7.3L Gas Engine (99N). W/99N
Requires Dual Extra Heavy-Duty Alternator (67B) When Ordered With 110V/400W Outlet (43C) And Snow Plow Pkg. (473) Or Snow Plow/Camper Pkg. (47B).
Center High-Mounted Stop Lamp (Chmsl) -Inc: Chmsl Is Deleted From Vehicles Over 10
000 Lbs Gvwr W/66D Pickup Box Delete; Replaced W/A Black Cover; To Add Chmsl W/66D Pickup Box Delete Select 59H
Chmsl Is Standard Under All Other Conditions
Platform Running Boards
Spare Tire
Wheel
Carrier & Jack Spare Tire Is Standard Equipment; Becomes Optional When (66D) Pickup Box Delete Is Ordered.
Trailer Brake Controller -Inc: Verified To Be Compatible W/Select Electric Over Hydraulic Brakes
Smart Trailer Tow Connector
240 Amp Alternator W/473
Required When Snow Plow Pkg. (473) Or Snow Plow/Camper Pkg. (47B). Upfitter Switches (66S) And 110V/400W Outlet (43C) Are Ordered Together.
Dual 78 Ah Battery
Stx Appearance Package -Inc: Stx Fender Vent Badge
Bright Chrome Hub Covers & Center Ornaments
Chrome Front Bumper
Chrome Rear Step Bumper
Steering Wheel-Mounted Cruise Control
Tires: Lt275/65Rx18E Bsw A/S
Spare May Not Be The Same As Road Tire
Wheels: 18" Sparkle Silver Painted Cast Aluminum
Bright Hub Covers/Center Ornaments
Bright Chrome Grille
Snow Plow/Camper Package -Inc: Computer Selected Springs For Snowplow Application And Heavy Service Front Springs (1 Up Upgrade Above The Spring Computer Selected As A Consequence Of Options Chosen
Not Included If Maximum Springs Have Been Computer Selected As Standard Equipment) And Slide-In Camper Certification
Note 1: Salesperson'S Source Book Or Ford Rv Trailer Towing Guide Should Be Consulted For Specific Trailer Towing Or Camper Limits And Corresponding Required Equipment
Axle Ratios And Model Availability
Restrictions Apply; See Supplemental Reference Or Body Builders Layout Book For Details
Expect Firmer Ride When Vehicle Is Not Equipped W/Snowplow And/Or Camper
Note 2: May Result In Deterioration Of Ride Quality When Vehicle Is Not Equipped W/Snowplow And/Or Camper
Note 3: Dual Battery (86M) Recommended W/6.2L Or 7.3L Gasoline Engines; See Body Builders Layout Book For Details
Rear Stabilizer Bar W/O 99N
99T-Inc: 200 Amp Alternator W/99T-Inc: 240 Amp Alternator (67D) W/O 99N
99T
Requires Extra Extra Heavy-Duty Alternator (67E) When Ordered With Upfitter Switches (66S) And 110V/400W Outlet (43C). W/99T
Requires Dual Alternators (67A) When Ordered With Upfitter Switches (66S) And 110V/400W Outlet (43C). W/99N
Requires Dual Extra Heavy-Duty Alternator (67B) When Ordered With Upfitter Switches (66S) And 110V/400W Outlet (43C).
Power Equipment Group -Inc: Deletes Passenger-Side Lock Cylinder
Upgraded Door Trim Panel
Accessory Delay
Advanced Security Pack
Securilock Passive Anti-Theft System (Pats) And Inclination/Intrusion Sensors
Power Locks
Remote Keyless Entry
Trailer Tow Mirrors W/Power Heated Glass
Manual Folding
Manually Telescoping
Heated Convex Spotter Mirror And Integrated Clearance Lamps/Turn Signals
Power Front Seat Windows
1-Touch Up/Down Driver/Passenger Window
Power Tailgate Lock
Medium Earth Gray
Hd Vinyl 40/20/40 Split Bench Seat -Inc: Center Armrest
Cupholder
Storage And Driver'S Side Manual Lumbar
Oxford White
Tires: Lt275/65Rx18E Bsw A/S -Inc: Spare May Not Be The Same As Road Tire
Electronic-Locking W/3.73 Axle Ratio
Order Code 610A
Transmission: Torqshift 10-Speed Automatic -Inc: Selectshift And Selectable Drive Modes: Normal
Tow/Haul
Eco
Deep Sand/Snow And Slippery (Std)
Engine: 6.2L 2-Valve Sohc Efi Na V8 Flex-Fuel (Std)
HandsFree/Bluetooth
Keyless Entry
Tow-Package
POWER EQUIPMENT GROUP
SNOW PLOW/CAMPER PACKAGE
UPFITTER SWITCHES (6)
Smart Device Integration
WiFi Hotspot
Dual Clutch
all new tires
X3E
Deletes passenger-side lock cylinder, upgraded door trim panel, Accessory Delay, Advanced Security Pack, SecuriLock Passive Anti-Theft System (PATS) and inclination/intrusion sensors, Power Locks, Remote Keyless Entry, Trailer Tow Mirrors w/Power Heated Glass, manual folding, manually telescoping, heated convex spotter mirror and integrated clearance lamps/turn signals, Power Front Seat Windows, 1-touch up/down driver/passenger window, Power Tailgate Lock: 90L
computer selected springs for snowplow application and heavy service front springs (1 up upgrade above the spring computer selected as a consequence of options chosen, Not included if maximum springs have been computer selected as standard equipment) and slide-in camper certification, NOTE 1: Salesperson's Source Book or Ford RV Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, Restrictions apply; see Supplemental Reference or Body Builders Layout Book for details, Expect firmer ride when vehicle is not equipped w/snowplow and/or camper, NOTE 2: May result in deterioration of ride quality when vehicle is not equipped w/snowplow and/or camper, NOTE 3: Dual battery (86M) recommended w/6.2L or 7.3L gasoline engines; See Body Builders Layout Book for details, Rear Stabilizer Bar w/o 99N,99T200 Amp Alternator w/99T240 Amp Alternator (67D) w/o 99N,99T, Requires Extra Extra Heavy-Duty Alternator (67E) when ordered with Upfitter Switches (66S) and 110V/400W Outlet (43C). w/99T, Requires Dual Alternators (67A) when ordered with Upfitter Switches (66S) and 110V/400W Outlet (43C). w/99N, Requires Dual Extra Heavy-Duty Alternator (67B) when ordered with Upfitter Switches (66S) and 110V/400W Outlet (43C).: 47B
STX fender vent badge, Bright Chrome Hub Covers & Center Ornaments, Chrome Front Bumper, Chrome Rear Step Bumper, Steering Wheel-Mounted Cruise Control, Tires: LT275/65Rx18E BSW A/S, Spare may not be the same as road tire, Wheels: 18" Sparkle Silver Painted Cast Aluminum, bright hub covers/center ornaments, Bright Chrome Grille: 17S-R
86M
w/473, Required when Snow Plow Pkg. (473) or Snow Plow/Camper Pkg. (47B). Upfitter Switches (66S) and 110V/400W Outlet (43C) are ordered together.: 67E
Verified to be compatible w/select electric over hydraulic brakes, smart trailer tow connector: 52B
Spare tire is standard equipment; becomes optional when (66D) Pickup Box Delete is ordered.: 512-R
18B
Located in overhead console w/o 99T,43C,99N200 Amp Alternator w/99T240 Amp Alternator (67D) w/o 99T,43C,99N, Requires Extra Extra Heavy-Duty Alternator (67E) when ordered with 110V/400W Outlet (43C) and Snow Plow Pkg. (473) or Snow Plow/Camper Pkg. (47B). w/43C&!(99T,99N), Requires Extra Extra Heavy-Duty Alternator (67E) when ordered with 110V/400W Outlet (43C) and Snow Plow Pkg. (473) or Snow Plow/Camper Pkg. (47B) and 6.2L Gas engine (996); or Dual Alternators (67A) when ordered with 110V/400W Outlet (43C) and Snow Plow Pkg. (473) or Snow Plow/Camper Pkg. (47B) and Diesel engine (99T); or Dual Extra Heavy-Duty Alternator (67B) when ordered with 110V/400W Outlet (43C) and Snow Plow Pkg. (473) or Snow Plow/Camper Pkg. (47B) and 7.3L Gas engine (99N). w/99N, Requires Dual Extra Heavy-Duty Alternator (67B) when ordered with 110V/400W Outlet (43C) and Snow Plow Pkg. (473) or Snow Plow/Camper Pkg. (47B).: 66S
MECHANICAL: Engine: 6.2L 2-Valve SOHC EFI NA V8 Flex-Fuel
MECHANICAL: Transmission: TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, tow/haul, eco, deep sand/snow and slippery
MECHANICAL: 3.73 Axle Ratio
MECHANICAL: GVWR: 10,400 lb Payload Package
MECHANICAL: 50-State Emissions System
MECHANICAL: Transmission w/Driver Selectable Mode and Oil Cooler
MECHANICAL: Electronic Transfer Case
MECHANICAL: Part-Time Four-Wheel Drive
MECHANICAL: 72-Amp/Hr 650CCA Maintenance-Free Battery w/Run Down Protection
MECHANICAL: 157 Amp Alternator
MECHANICAL: Class V Towing Equipment -inc: Hitch and Trailer Sway Control
MECHANICAL: Trailer Wiring Harness
MECHANICAL: 4030# Maximum Payload
MECHANICAL: HD Gas-Pressurized Shock Absorbers
MECHANICAL: Front Anti-Roll Bar
MECHANICAL: Firm Suspension
MECHANICAL: Hydraulic Power-Assist Steering
MECHANICAL: 34 Gal. Fuel Tank
MECHANICAL: Single Stainless Steel Exhaust
MECHANICAL: Auto Locking Hubs
MECHANICAL: Front Suspension w/Coil Springs
MECHANICAL: Solid Axle Rear Suspension w/Leaf Springs
MECHANICAL: 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
EXTERIOR: Tires: LT245/75Rx17E BSW A/S (4) -inc: Spare may not be the same as road tire
EXTERIOR: Regular Box Style
EXTERIOR: Wheels w/Hub Covers
EXTERIOR: Steel Spare Wheel
EXTERIOR: Full-Size Spare Tire Stored Underbody w/Crankdown
EXTERIOR: Black Front Bumper w/Black Rub Strip/Fascia Accent and 2 Tow Hooks
EXTERIOR: Black Rear Step Bumper
EXTERIOR: Black Side Windows Trim and Black Front Windshield Trim
EXTERIOR: Black Door Handles
EXTERIOR: Black Manual Side Mirrors w/Manual Folding
EXTERIOR: Manual Extendable Trailer Style Mirrors
EXTERIOR: Fixed Rear Window
EXTERIOR: Light Tinted Glass
EXTERIOR: Variable Intermittent Wipers
EXTERIOR: Aluminum Panels
EXTERIOR: Black Grille
EXTERIOR: Tailgate Rear Cargo Access
EXTERIOR: Manual Tailgate/Rear Door Lock
EXTERIOR: Autolamp Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off
EXTERIOR: Cargo Lamp w/High Mount Stop Light
ENTERTAINMENT: Radio: AM/FM Stereo w/MP3 Player -inc: 4 speakers
ENTERTAINMENT: Radio w/Seek-Scan and Clock
ENTERTAINMENT: 4 Speakers
ENTERTAINMENT: Fixed Antenna
ENTERTAINMENT: SYNC Communications & Entertainment System -inc: enhanced voice recognition w/911 Assist, 4.2" LCD center stack screen, AppLink and 1 smart-charging USB-C port
ENTERTAINMENT: Wireless Phone Connectivity
ENTERTAINMENT: 2 LCD Monitors In The Front
INTERIOR: 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
INTERIOR: 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
INTERIOR: Manual Tilt/Telescoping Steering Column
INTERIOR: Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp, Engine Hour Meter, Trip Odometer and Trip Computer
INTERIOR: FordPass Connect 4G Mobile Hotspot Internet Access
INTERIOR: Front Cupholder
INTERIOR: Compass
INTERIOR: Manual Air Conditioning
INTERIOR: Locking Glove Box
INTERIOR: Interior Trim -inc: Chrome Interior Accents
INTERIOR: Full Cloth Headliner
INTERIOR: Urethane Gear Shifter Material
INTERIOR: HD Vinyl 40/20/40 Split Bench Seat -inc: center armrest, cupholder, storage and driver's side manual lumbar
INTERIOR: Day-Night Rearview Mirror
INTERIOR: Passenger Visor Vanity Mirror
INTERIOR: 2 12V DC Power Outlets
INTERIOR: Front Map Lights
INTERIOR: Fade-To-Off Interior Lighting
INTERIOR: Full Vinyl/Rubber Floor Covering
INTERIOR: Cab Mounted Cargo Lights
INTERIOR: Smart Device Remote Engine Start
INTERIOR: Smart Device Integration
INTERIOR: Instrument Panel Covered Bin and Dashboard Storage
INTERIOR: Manual 1st Row Windows
INTERIOR: Driver Information Center
INTERIOR: Trip Computer
INTERIOR: Outside Temp Gauge
INTERIOR: Analog Appearance
INTERIOR: Seats w/Vinyl Back Material
INTERIOR: Manual Adjustable Front Head Restraints
INTERIOR: Front Center Armrest w/Storage
INTERIOR: Securilock Anti-Theft Ignition (pats) Immobilizer
INTERIOR: Air Filtration
SAFETY: AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
SAFETY: ABS And Driveline Traction Control
SAFETY: Side Impact Beams
SAFETY: Dual Stage Driver And Passenger Seat-Mounted Side Airbags
SAFETY: Emergency Sos Capability
SAFETY: Tire Specific Low Tire Pressure Warning
SAFETY: Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
SAFETY: Safety Canopy System Curtain 1st Row Airbags
SAFETY: Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
SAFETY: Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
SAFETY: Back-Up Camera

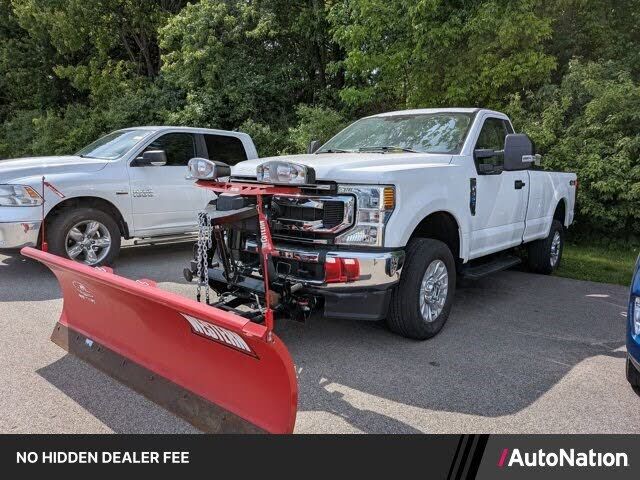

Ford Super Duty F-350 SRW
Body Style: SD Regular Cab
Body Code: T
Drivetrain: Four Wheel Drive
Trans Order Code: 44G
Trans Type: 10
Trans Description Cont.: Automatic w/OD
First Gear Ratio (:1): 4.62
Second Gear Ratio (:1): 2.92
Third Gear Ratio (:1): 2.13
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.28
Reverse Ratio (:1): 4.70
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Passenger Capacity: 3
Front Head Room (in): 40.8
Front Leg Room (in): 43.9
Front Shoulder Room (in): 66.7
Front Hip Room (in): 62.5
Base Curb Weight (lbs): 6318
Gross Axle Wt Rating - Front (lbs): 5600
Gross Axle Wt Rating - Rear (lbs): 6780
Curb Weight - Front (lbs): 3711
Curb Weight - Rear (lbs): 2594
Gross Vehicle Weight Rating Cap (lbs): 10900
Gross Combined Wt Rating (lbs): 19500
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 12600
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1260
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12600
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3150
Maximum Trailering Capacity (lbs): 12600
Engine Order Code: 996
Engine Type: Regular Unleaded V-8
Displacement: 6.2 L/379
Fuel System: Sequential MPI
SAE Net Horsepower @ RPM: 385 @ 5750
SAE Net Torque @ RPM: 430 @ 3800
Engine Oil Cooler: None
Cold Cranking Amps @ 0° F (Primary): 750
Cold Cranking Amps @ 0° F (2nd): 750
Maximum Alternator Capacity (amps): 240 & 0
Suspension Type - Front: Other
Suspension Type - Rear: Leaf
Spring Capacity - Front (lbs): 5600
Spring Capacity - Rear (lbs): 6780
Axle Type - Front: Non-Independent
Axle Type - Rear: Rigid Axle
Axle Capacity - Front (lbs): 6000
Axle Capacity - Rear (lbs): 7280
Axle Ratio (:1) - Front: 3.73
Axle Ratio (:1) - Rear: 3.73
Front Tire Order Code: TCH
Rear Tire Order Code: TCH
Spare Tire Order Code: TCH
Front Tire Size: LT275/65SR18
Rear Tire Size: LT275/65SR18
Spare Tire Size: Full-Size
Front Tire Capacity (lbs): 6830
Rear Tire Capacity (lbs): 6830
Revolutions/Mile @ 45 mph - Front: 652
Revolutions/Mile @ 45 mph - Rear: 652
Front Wheel Size (in): 17 X 7.5
Rear Wheel Size (in): 17 X 7.5
Spare Wheel Size (in): Full-Size
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Re-Circulating Ball
Turning Diameter - Curb to Curb (ft): 47.6
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 14.3
Rear Brake Rotor Diam x Thickness (in): 14.3
Fuel Tank Capacity, Approx (gal): 34
Wheelbase (in): 142
Length, Overall (in): 231.8
Width, Max w/o mirrors (in): 80
Height, Overall (in): 81.2
Overhang, Front (in): 38.2
Cab to Axle (in): 56.1
Ground to Top of Load Floor (in): 37.4
Ground Clearance, Front (in): 8.5
Ground Clearance, Rear (in): 8.5
Cargo Box Length @ Floor (in): 98.1
Cargo Box Width @ Top, Rear (in): 66.9
Cargo Box Width @ Floor (in): 66.9
Cargo Box Width @ Wheelhousings (in): 50.5
Cargo Box (Area) Height (in): 21.1
Tailgate Width (in): 60.5
Cargo Volume (ft³): 78.5
