3 Years Of Onstar & Connected Services Plan See Onstar.Com For Information. (Available With Fleet Or Government Order Types. Beginning With June Production
Most Retail And Sold (Tre/Sre) Orders Will Require Option (R9M) 3 Years Of Onstar Safety And Security.)
Not Equipped With Steering Column Lock
See Dealer For Details (Certain Vehicles Built On Or After 4-4-2022 Will Be Forced To Include (R7N) Not Equipped With Steering Column Lock
Which Removes Steering Column Lock. See Dealer For Details.) *Credit*
Leather Seats
Gmc Multipro Power Steps
Rearward Articulating (Providing Bed Access). Foot Activated Running Side Board. (Included With (Pec) Denali Reserve Package Or (Rfp) Denali Reserve Super Cruise Package. Not Available With Any Other Rpo Or Lpo Assist Step.)
Lpo
22" (55.9Cm) High Gloss Black Wheels Lpo Wheels Will Come With 4 Steel 22" Wheels From The Factory With Alignment Specs Set To 22" Lpo Wheel Selected (Dealer-Installed)
Audio System
13.4 " Diagonal Premium Gmc Infotainment System With Google Built In
Includes Color Touch-Screen
Multi-Touch Display
AM/FM Stereo Bluetooth Streaming Audio For Music And Most Phones; Featuring Wireless Android Auto And Apple Carplay Capability For Compatible Phones
Advanced Voice Recognition
In-Vehicle Apps
Personalized Profiles For Infotainment And Vehicle Settings (Std)
Jet Black
Forge Perforated Leather Seat Trim
Seats
Front Bucket With Center Console (Std)
Summit White (Not Available On Denali Ultimate.)
Tires
275/50R22Sl All-Season
Blackwall (Required With (Pec) Denali Reserve Package Or (Rfp) Denali Reserve Super Cruise Package. Required With 22" Lpo Wheels Or With (Sh0) 22" X 9" (55.9 Cm X 22.9 Cm) Painted Aluminum Wheel With Machining & Bright Chrome Inserts.)
Wheels
22" Transit Steel Wheels For Lpo 22" Wheels And Tires (Included And Only Available With 22" Lpo Wheels.)
Denali Preferred Equipment Group Includes Standard Equipment
Rear Axle
3.23 Ratio
Lane Keeping Assist
Keyless Start
Gvwr
6900 Lbs. (3130 Kg) (Std) (Requires 2Wd Model And (L84) 5.3L Ecotec3 V8 Engine.)
Transmission
10-Speed Automatic With Electronic Precision Shift
Electronically Controlled With Overdrive
And Tow/Haul Mode And Steering Column Paddle Shifters. Includes Cruise Grade Braking And Powertrain Grade Braking (Std)
Engine
5.3L Ecotec3 V8 (355 Hp [265 Kw] @ 5600 Rpm
383 Lb-Ft Of Torque [518 Nm] @ 4100 Rpm); Featuring Dynamic Fuel Management (Note: Certain Vehicles May Be Forced To Include (Yk9) Not Equipped With Dynamic Fuel Management And (00G) Not Equipped With Heated Steering Wheel
Which Removes The Heated Steering Wheel. See Dealer For Details.) (Std)
Cooled Front Seat(S)
Emissions
Federal Requirements
HandsFree/Bluetooth
Keyless Entry
Satellite Radio
Tow-Package
Smart Device Integration
WiFi Hotspot
LED Headlights
Dual Clutch
Heated Seats
Cooled Seats
all new tires
LPO wheels will come with 4 steel 22" wheels from the factory with alignment specs set to 22" LPO wheel selected (dealer-installed): SGM
(providing bed access). Foot activated running side board. (Included with (PEC) Denali Reserve Package or (RFP) Denali Reserve Super Cruise Package. Not available with any other RPO or LPO assist step.): BRS
see onstar.com for information. (Available with Fleet or Government order types. Beginning with June production, most Retail and Sold (TRE/SRE) orders will require option (R9M) 3 years of OnStar Safety and Security.): R9M
PACKAGE: Trailering Package includes trailer hitch, 7-pin and 4-pin connectors and (CTT) Hitch Guidance
PACKAGE: GMC Pro Safety includes (UEU) Forward Collision Alert, (UE4) Following Distance Indicator, (UKJ) Front Pedestrian Braking, (TQ5) IntelliBeam, (UHX) Lane Keep Assist with Lane Departure Warning, and (UHY) Automatic Emergency Braking (Includes (T8Z) Buckle to Drive and (HS1) Safety Alert Seat.)
MECHANICAL: Engine, 5.3L EcoTec3 V8 (355 hp [265 kW] @ 5600 rpm, 383 lb-ft of torque [518 Nm] @ 4100 rpm); featuring Dynamic Fuel Management (NOTE: Certain vehicles may be forced to include (YK9) Not Equipped with Dynamic Fuel Management and (00G) Not Equipped with Heated Steering Wheel, which removes the heated steering wheel. See dealer for details.)
MECHANICAL: Transmission, 10-speed automatic with Electronic Precision shift, electronically controlled with overdrive, and tow/haul mode and steering column paddle shifters. Includes Cruise Grade Braking and Powertrain Grade Braking
MECHANICAL: Rear axle, 3.23 ratio
MECHANICAL: Pickup bed
MECHANICAL: GVWR, 6900 lbs. (3130 kg) (Requires 2WD model and (L84) 5.3L EcoTec3 V8 engine.)
MECHANICAL: Push Button Start
MECHANICAL: Air filter, heavy-duty
MECHANICAL: Electronic Precision Shift and steering column paddle shifters
MECHANICAL: Automatic Stop/Start
MECHANICAL: Auto-locking rear differential
MECHANICAL: Denali Premium Suspension with Adaptive Ride Control
MECHANICAL: Rear wheel drive
MECHANICAL: Cooling, external engine oil cooler (Not available with (LM2) Duramax 3.0L Turbo-Diesel I6 engine.)
MECHANICAL: Cooling, auxiliary external transmission oil cooler (Not available with (LM2) Duramax 3.0L Turbo-Diesel I6 engine.)
MECHANICAL: Alternator, 170 amps (Included and only available with (L84) 5.3L EcoTec3 V8 engine or (L87) 6.2L EcoTec3 V8 engine. Not available with (LM2) Duramax 3.0L Turbo-Diesel I6 engine.)
MECHANICAL: Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power (Included and only available with (L84) 5.3L EcoTec3 V8 engine and (L87) 6.2L EcoTec3 V8 engine.)
MECHANICAL: Frame, fully-boxed, hydroformed front section
MECHANICAL: Trailer brake controller, integrated
MECHANICAL: Recovery hooks, chrome
MECHANICAL: Cargo tie downs (12), fixed
MECHANICAL: Steering, Electric Power Steering (EPS) assist, rack-and-pinion
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
MECHANICAL: Capless Fuel Fill
MECHANICAL: Exhaust, dual system (Includes chrome exhaust tips.)
MECHANICAL: Exhaust, aluminized stainless-steel muffler and tailpipe
EXTERIOR: Wheels, 20" x 9" (50.8 cm x 22.9 cm) multi-dimensional polished aluminum
EXTERIOR: Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
EXTERIOR: Wheelhouse liners, rear (Certain vehicles built prior to 3-21-2022 and after 4-7-2022 will include rear wheelhouse liners. Certain vehicles built on 3-21-2022 thru 4-7-2022 will be forced to include (RFZ) Not Equipped with Rear Wheelhouse liners, which removes Rear Wheelhouse liners. See dealer for details or the window label for the features on a specific vehicle. Deleted with (PCP) Denali CarbonPro Edition.)
EXTERIOR: Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
EXTERIOR: Bumper, front, body-color lower
EXTERIOR: Bumper, rear body-color with corner steps
EXTERIOR: CornerStep, rear bumper
EXTERIOR: Assist steps, Chrome wheel to wheel
EXTERIOR: Moldings, window surround, Chrome
EXTERIOR: Grille (Signature Denali grille Chrome header with Signature Chrome Denali Grille.)
EXTERIOR: Headlamps, LED projectors with Fade-on/Fade-off animation, LED turn signals and Daytime Running Lamps
EXTERIOR: IntelliBeam, automatic high beam on/off (Included and only available with (PDI) GMC Pro Safety.)
EXTERIOR: Fog lamps, LED
EXTERIOR: Lighting, perimeter
EXTERIOR: Taillamps, LED LED signature taillight with LED stop, turn & reverse and Fade-on/Fade-off animation
EXTERIOR: Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming puddle lamps, side perimeter lighting and memory
EXTERIOR: Mirror caps, chrome
EXTERIOR: Wipers, front rain-sensing
EXTERIOR: Window, power, rear sliding with rear defogger
EXTERIOR: Glass, deep-tinted
EXTERIOR: Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
EXTERIOR: LED Cargo Area Lighting located in cargo bed activated with switch on center switch bank or key fob
EXTERIOR: Tailgate, GMC MultiPro Tailgate with six functional load/access features
EXTERIOR: Tailgate, gate function manual with EZ Lift includes power lock and release, includes hitch area light
EXTERIOR: Tailgate and bed rail protection caps, top
EXTERIOR: Door handles, chrome
EXTERIOR: Bed Liner, Spray-on Pickup bedliner with GMC logo (does not include spray-on liner on tailgate due to Black composite inner panel) (Denali logo replaces GMC logo. Deleted with (PCP) Denali CarbonPro Edition. Available with Ship Thru codes (VBE), (VCO), (VDT), (VYC) or (VYS).)
EXTERIOR: Hood Insulator
ENTERTAINMENT: Audio System, 13.4 " diagonal Premium GMC Infotainment System with Google built in, includes color touch-screen, multi-touch display, AM/FM stereo Bluetooth streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones, advanced voice recognition, in-vehicle apps, personalized profiles for infotainment and vehicle settings
ENTERTAINMENT: SiriusXM Radio
ENTERTAINMENT: SiriusXM with 360L Equipped with SiriusXM with 360L. Enjoy a trial subscription of the Platinum Plan for the full 360L experience, with a greater variety of SiriusXM content, a more personalized experience and easier navigation. With the Platinum Plan you can also enjoy your favorites everywhere you go, with the SiriusXM app, online and at home on compatible connected devices. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change. GM connected vehicle services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. See onstar.com for details and limitations.)
ENTERTAINMENT: Bose Sound System, premium 7-speaker system with Richbass woofer
ENTERTAINMENT: Bluetooth for phone connectivity to vehicle infotainment system
ENTERTAINMENT: Wireless phone projection, for Apple CarPlay and Android Auto
ENTERTAINMENT: Steering wheel audio controls
ENTERTAINMENT: Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
INTERIOR: Seats, front bucket with center console
INTERIOR: Seat adjuster, driver 10-way power including lumbar
INTERIOR: Seat adjuster, passenger 10-way power including lumbar
INTERIOR: Seating, heated driver and front outboard passenger
INTERIOR: Driver memory recalls driver "presets" for power driver seat and outside mirrors
INTERIOR: Seats, ventilated driver and front passenger
INTERIOR: Seat, Up-level Rear with Storage Package, 60/40 folding bench for Crew Cab models, includes full-length bench seat, seatback storage on left and right side, center fold out armrest with 2 cupholders, full cab width under-seat storage, (includes child seat top tether anchor)
INTERIOR: Seats, heated second row outboard seats (Vehicles built prior to 3-14-2022 and after 4-24-2022 will include heated second row outboard seats. Certain vehicles built on or after 3-14-2022 Through 4-24-2022 will be forced to include (00R) Not Equipped with Heated Rear Outboard Seats, which removes heated second row outboard seats. Feature will not function on certain models without later dealer retrofit. See dealer for details or the window label for the features on a specific vehicle.)
INTERIOR: Center Console, floor-mounted with cup holders, cell phone storage, power cord management, hanging file folder capability
INTERIOR: Floor covering, color-keyed carpeting
INTERIOR: Floor mats, carpeted front (Unique premium carpet. Deleted when LPO floor liners are ordered or (BKF) Premium Floor Liners are ordered.)
INTERIOR: Floor mats, carpeted rear (Unique premium carpet. Deleted when LPO floor liners are ordered or (BKF) Premium Floor Liners are ordered.)
INTERIOR: Steering column, power rake and telescoping
INTERIOR: Steering wheel, leather-wrapped
INTERIOR: Driver Information Center, enhanced, 12.3" diagonal reconfigurable multicolor digital display
INTERIOR: GMC Premium information Display- 13.4" diagonal Multicolor touch screen
INTERIOR: In-Vehicle Trailering App
INTERIOR: Compass, located in instrument cluster
INTERIOR: Exterior Temperature Display, located in radio display
INTERIOR: Brake lining wear indicator
INTERIOR: Windows, power front, drivers express up/down
INTERIOR: Window, power front, passenger express up/down
INTERIOR: Windows, power rear, express down
INTERIOR: Door locks, power
INTERIOR: Keyless Open and Start includes remote keyless entry
INTERIOR: Remote vehicle starter system
INTERIOR: Universal Home Remote
INTERIOR: Cruise control, steering wheel-mounted
INTERIOR: Theft-deterrent system, unauthorized entry
INTERIOR: Wireless Charging
INTERIOR: USB Ports, 2 (first row) located on console
INTERIOR: USB Ports, 2, Charge/Data ports located inside center console
INTERIOR: Power outlet, instrument panel, 120-volt (400 watts shared with (KC9) bed mounted power outlet)
INTERIOR: USB ports, (2) charge-only, rear
INTERIOR: Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) instrument panel mounted power outlet)
INTERIOR: Air conditioning, dual-zone automatic climate control
INTERIOR: Air vents, rear
INTERIOR: Defogger, rear-window electric
INTERIOR: Mirror, inside rearview auto-dimming
INTERIOR: Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
INTERIOR: GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
INTERIOR: 3 years of GMC Connected Services (Includes from time of new vehicle purchase. Connected services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. Does not include emergency or security services. See onstar.com for details and limitations.)
SAFETY: Automatic Emergency Braking (Included and only available with (PDI) GMC Pro Safety. With (CWM) Technology Package on vehicles built on or after 6-13-2022 will include (UHY) Automatic Emergency Braking.)
SAFETY: Front Pedestrian Braking (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
SAFETY: Daytime Running Lamps, LED signature lighting
SAFETY: Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
SAFETY: Hitch Guidance with Hitch View with image adjustment, Pan/Zoom/Tilt
SAFETY: Hitch Guidance
SAFETY: HD Surround Vision provides the driver with an overhead view of the scene around the vehicle on a center stack display. Includes front camera washer.
SAFETY: Bed View Camera camera in the CHMSL to show a view of the cargo bed, display located in infotainment screen, includes Two Trailer Camera Provisions (Includes Trailer View Camera Provisions and Trailer Assist Guidelines.)
SAFETY: Trailer Camera Provisions and trailer viewing software
SAFETY: Front and Rear Park Assist, ultrasonic (Certain vehicles may be forced to include (00Z) Not Equipped with Front and Rear Park Assist, which removes Front and Rear Park Assist. See dealer for details or the window label for the features on a specific vehicle.)
SAFETY: Following Distance Indicator (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Forward Collision Alert (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Lane Keep Assist with Lane Departure Warning (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Trailer Side Blind Zone Alert
SAFETY: Rear Cross Traffic Braking
SAFETY: Rear Pedestrian Alert
SAFETY: Safety Alert Seat (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Seat Belt Adjustable Guide Loops, front row only
SAFETY: Buckle to Drive (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Tire Pressure Monitor System, auto learn includes Tire Fill Alert (does not apply to spare tire)
SAFETY: Rear Seat Reminder

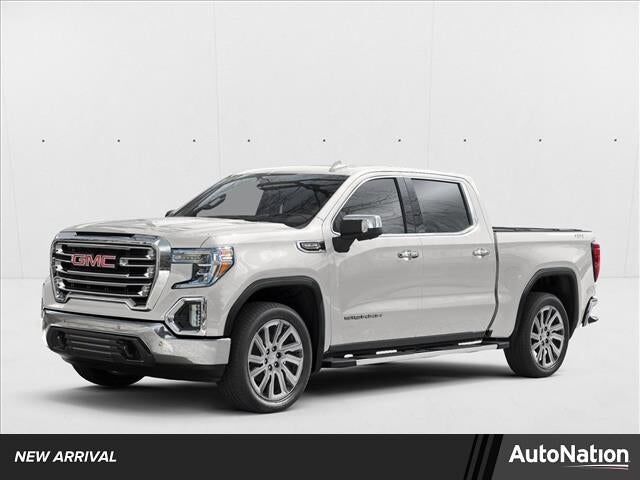

GMC Sierra 1500
Body Style: Crew Cab Pickup
Body Code: E63
Drivetrain: Rear Wheel Drive
Trans Order Code: MHS
Trans Type: 10
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.69
Second Gear Ratio (:1): 2.98
Third Gear Ratio (:1): 2.15
Fourth Gear Ratio (:1): 1.8
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.28
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Ninth Gear Ratio (:1): 0.69
Tenth Gear Ratio (:1): 0.63
Reverse Ratio (:1): 4.86
Passenger Capacity: 5
Front Head Room (in): 43.03
Front Leg Room (in): 44.53
Front Shoulder Room (in): 66.02
Front Hip Room (in): 61.18
Second Head Room (in): 40.12
Second Leg Room (in): 43.4
Second Shoulder Room (in): 65.16
Second Hip Room (in): 60.24
Gross Axle Wt Rating - Front (lbs): 3700
Gross Axle Wt Rating - Rear (lbs): 3800
Curb Weight - Front (lbs): 2720
Curb Weight - Rear (lbs): 1894
Gross Vehicle Weight Rating Cap (lbs): 6900
Gross Combined Wt Rating (lbs): 15000
Fuel Economy Est-Combined (MPG): 18
EPA Fuel Economy Est - City (MPG): 16
EPA Fuel Economy Est - Hwy (MPG): 21
Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8000
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2000
Maximum Trailering Capacity (lbs): 9300
Engine Type: Gas V8
Fuel System: Direct Injection
Engine Order Code: L84
Displacement: 5.3L/325
SAE Net Horsepower @ RPM: 355 @ 5600
SAE Net Torque @ RPM: 383 @ 4100
Engine Oil Cooler: Yes
Cold Cranking Amps @ 0° F (Primary): 730
Maximum Alternator Capacity (amps): 170
Total Cooling System Capacity (qts): - TBD -
Frame Type: Hydroformed
Suspension Type - Front: Independent
Suspension Type - Rear: Solid Axle
Spring Capacity - Front (lbs): 3700
Spring Capacity - Rear (lbs): 3850
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): 3700
Axle Capacity - Rear (lbs): 3800
Axle Ratio (:1) - Rear: 3.23
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): 1.30
Front Tire Order Code: XCE
Rear Tire Order Code: XCE
Spare Tire Order Code: QAQ
Front Tire Size: 275/50R22SL
Rear Tire Size: 275/50R22SL
Spare Tire Size: 255/80R17SL
Front Tire Capacity (lbs): 3700
Rear Tire Capacity (lbs): 3800
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: N/A
Revolutions/Mile @ 45 mph - Rear: N/A
Revolutions/Mile @ 45 mph - Spare: N/A
Front Wheel Size (in): 22 x 9
Rear Wheel Size (in): 22 x 9
Spare Wheel Size (in): 17 x 8
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb (ft): 46.9
Turning Diameter - Wall to Wall (ft): N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
Fuel Tank Capacity, Approx (gal): 24
Fuel Tank Location: - TBD -
Wheelbase (in): 147.43
Length, Overall (in): 231.92
Width, Max w/o mirrors (in): 81.24
Height, Overall (in): 75.49
Overhang, Front (in): - TBD -
Overhang, Rear w/o bumper (in): - TBD -
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): - TBD -
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 7.89
Ground Clearance, Rear (in): 7.89
Cargo Box Length @ Floor (in): 69.92
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 71.4
Cargo Box Width @ Wheelhousings (in): 50.63
Cargo Box (Area) Height (in): 22.4
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 62.9
Ext'd Cab Cargo Volume (ft³): - TBD -
