SiriusXM delete
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system
Audio system Chevrolet Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps; USB ports; auxiliary jack. (Includes (UQ3) 6-speaker audio system.
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted (STD)
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Paint solid
Work light circuit provides additional wire for utility light at end of frame
Tires front 225/70R19.5G traction blackwall Pirelli Max Axle Load: 7940 lbs.
Grille chrome
Bumper front chrome
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Auxiliary harness 3' for headlamps and turn signals
Tires rear 225/70R19.5G traction blackwall Pirelli Max Axle Load: 15000 lbs.
Summit White
License plate kit front
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Visors driver and front passenger vinyl
Driver Information Center 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
Seat trim Vinyl
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane
Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Key system 2 spare keys
Seats front 40/20/40 split-bench cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
Remote Keyless Entry
Seat adjuster driver 10-way power
Windows power with driver express up and down and express down on all other windows
Emissions 50 state certification
Exhaust system right side exit behind rear wheels (Requires (ED9) 165" wheelbase.)
Front suspension 7500 lbs. (3402 kg) multi-leaf includes shock absorbers
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Emissions USA 50 State certified
Incomplete vehicle
Fuel diesel B20
Wheelbase 165" (419.1 cm) 84" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust behind the rear wheels.) (STD)
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.30 ratio Max road speed: 79 MPH
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Front axle 7500 lbs Dana Spicer 60-256 single-reduction front driving
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake
Four wheel drive
Trailer brake controller integrated
Recovery hooks front frame-mounted Black
Rear axle 15500 lb. (7031 kg)
Axle to End of Frame 63"
Rear suspension 15500 lbs. (7031 kg) multi-leaf vari-rate
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Tool kit Rim Wrench and handle only
34000 lbs. GCWR (15422 kg)
Wheelbase 165" (419.1 cm) 84" CA (STD)
GVWR 19500 lbs. (8845 kg)

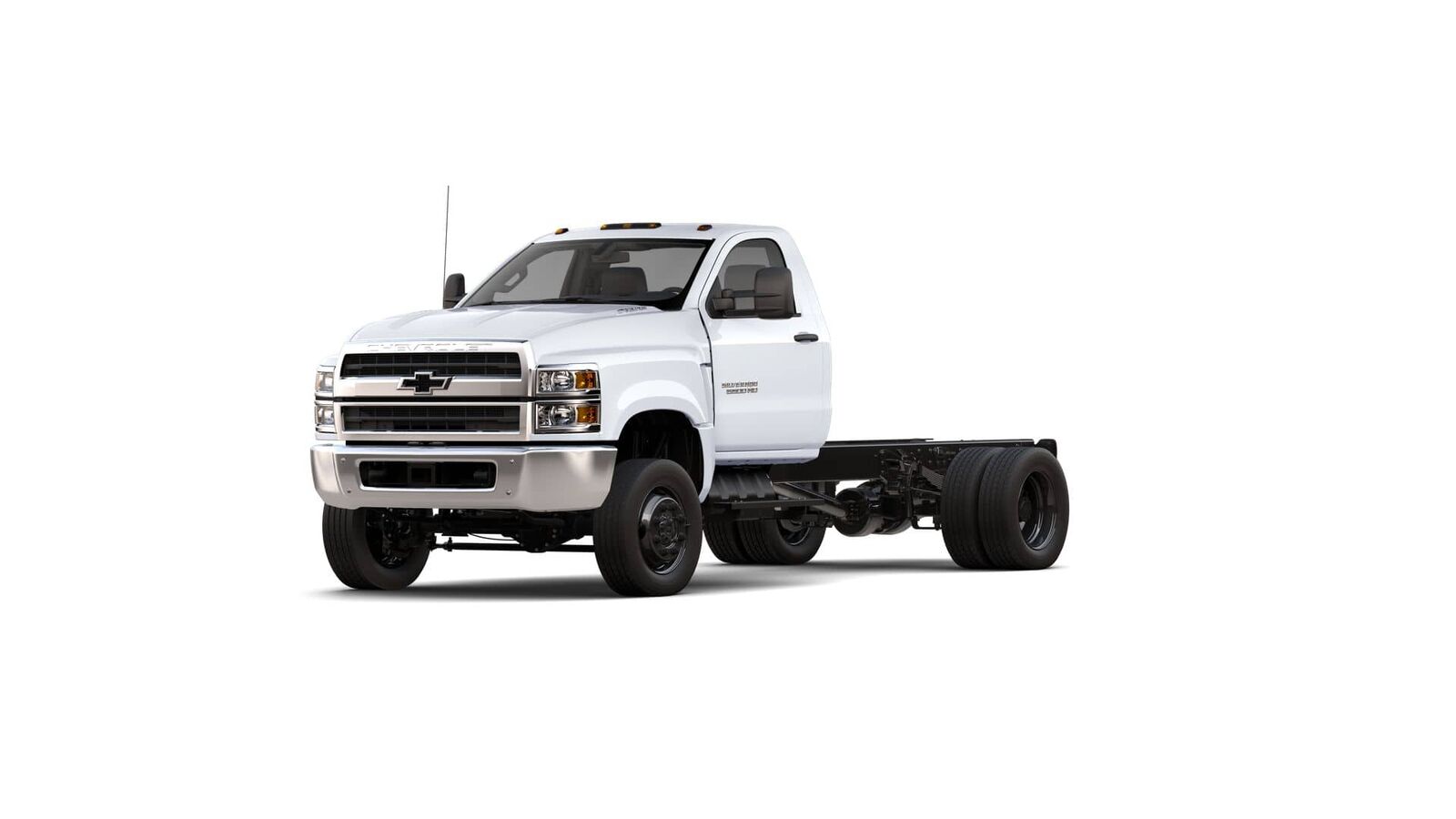

5500 HD Series
Alternator 220 amps
Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
WT Preferred Equipment Group includes standard equipment
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
Horn Trumpet Style dual-note
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
Snow Plow Prep Package
