SiriusXM delete
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system
Audio system Chevrolet Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps; USB ports; auxiliary jack. (Includes (UQ3) 6-speaker audio system.
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Grille base molded in color Black
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Bumper front Black
Paint solid
Red Hot
Tires front 225/70R19.5H traction blackwall Continental Max Axle Load: 8000 lbs.
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Tires rear 225/70R19.5H traction blackwall Continental Max Axle Load: 16000 lbs.
Auxiliary harness 3' for headlamps and turn signals
Mirrors outside heated power-adjustable vertical trailering upper glass manual-folding and extending black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
Wheels 19.5" x 6.75" 4-aluminum wheels 8-holes hub piloted Dura-Bright finish is on the outside of the wheel
Visors driver and front passenger vinyl
Driver Information Center 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
Seat trim Vinyl
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane
Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Power outlet 120-volt AC
Seats front 40/20/40 split-bench cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
Seat adjuster driver 10-way power
Windows power with driver express up and down and express down on all other windows
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" or (ER2) 189". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Emissions 50 state certification
Exhaust system right side exit behind rear wheels (Requires (ED9) 165" wheelbase.)
Front suspension 7500 lbs. (3402 kg) multi-leaf includes shock absorbers
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Emissions USA 50 State certified
Incomplete vehicle
Fuel diesel B20
Wheelbase 165" (419.1 cm) 84" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust behind the rear wheels.) (STD)
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.30 ratio Max road speed: 79 MPH
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Front axle 7500 lbs Dana Spicer 60-256 single-reduction front driving
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake
Four wheel drive
Trailer brake controller integrated
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
Recovery hooks front frame-mounted Black
Rear axle 15500 lb. (7031 kg)
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Rear suspension 15500 lbs. (7031 kg) multi-leaf vari-rate
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
30000 lbs. GCWR (13607 kg)
Wheelbase 165" (419.1 cm) 84" CA (STD)
GVWR 23000 lbs. (10433 kg)

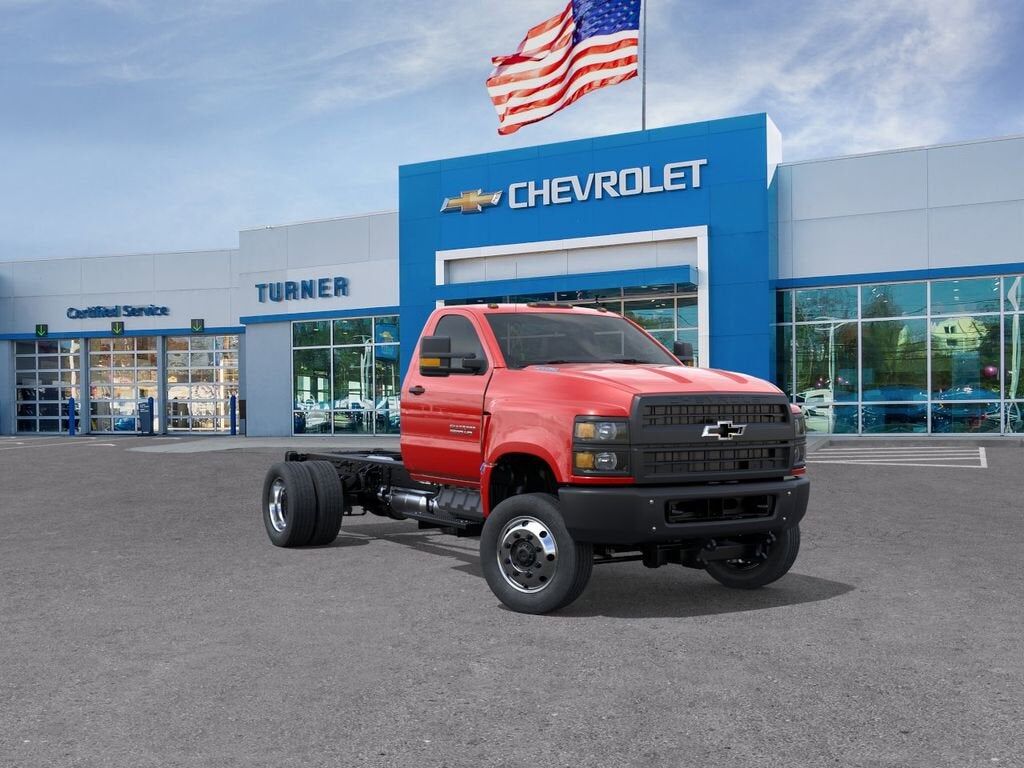

6500 HD Series
Alternator 220 amps
Vocational Specific Heavy Suspension Package Allows the selection of 7000 lbs. 8000 lbs. front axles and/or 15500 lbs. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies Aerial Lift/Bucket bodies Front Plow/Rear Spreader Applications and Landscape Dump Bodies.
Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
WT Preferred Equipment Group includes standard equipment
Fleet Processing Option
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Horn Trumpet Style dual-note
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
Snow Plow Prep Package
WINDOWS
POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
SEAT ADJUSTER
DRIVER 10-WAY POWER
GVWR
23
000 LBS. (10
433 KG)
FRONT AXLE
7
500 LBS
DANA SPICER 60-256
SINGLE-REDUCTION
FRONT DRIVING
REAR SUSPENSION
15
500 LBS. (7
031 KG) MULTI-LEAF
VARI-RATE
SHOCK ABSORBERS
REAR
AXLE
LIMITED SLIP
DANA SPICER TRUETRAC
TORQUE PROPORTIONING LIMITED SLIP
DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS
VINYL SEAT TRIM
REAR AXLE
500 LB. (7
031 KG)
POWER OUTLET
120-VOLT AC
ALTERNATOR
220 AMPS
30
000 LBS. GCWR (13
607 KG)
HORN
TRUMPET STYLE
DUAL-NOTE
AUXILIARY HARNESS
3' FOR HEADLAMPS AND TURN SIGNALS
RECOVERY HOOKS
FRONT
FRAME-MOUNTED
BLACK
PAINT
SOLID
Unknown
Automatic
4WD
Diesel
V-Shaped
Unknown
Pickup
