Monotone Paint (Std)
Cloth High-Back Front Bucket Seats (Std)
P225/75R16 All-Season Owl Tires (Std)
29X Renegade Customer Preferred Order Selection Pkg -Inc: 3.7L V6 Engine
4-Speed Auto Trans *Upon Selection Of This Pkg
The Cost Of Powertrain Components Will Be Added*
4-Speed Automatic Transmission -Inc: Lock-Up Torque Converter
3.7L V6 Engine (Std)
45-State Federal Emissions
Keyless Entry
Luggage Rack
lock-up torque converter: DGV
MECHANICAL: 3.7L V6 engine
MECHANICAL: 3.55 axle ratio
MECHANICAL: All speed traction control
MECHANICAL: Electronic stability control
MECHANICAL: Command-Trac HD part-time shift-on-the-fly 4WD
MECHANICAL: 600-CCA maintenance free battery
MECHANICAL: 160-amp alternator
MECHANICAL: Dana 30/186MM front axle
MECHANICAL: Tow hooks
MECHANICAL: Independent front suspension w/coil springs
MECHANICAL: Corporate 8.25 solid rear axle
MECHANICAL: Front/rear stabilizer bars
MECHANICAL: Front/rear low-pressure gas shock absorbers
MECHANICAL: 5600# GVWR
MECHANICAL: P225/75R16 all-season OWL tires
MECHANICAL: Full size spare tire w/outside carrier
MECHANICAL: (5) 16" x 7.0" aluminum wheels
MECHANICAL: Pwr rack & pinion steering
MECHANICAL: Pwr 4-wheel anti-lock disc brakes w/brake assist
MECHANICAL: 20.5 gallon fuel tank
EXTERIOR: Monotone paint
EXTERIOR: Accent-color body-side molding
EXTERIOR: Accent fender flares
EXTERIOR: Accent color fascias
EXTERIOR: Roof rack
EXTERIOR: Rugged roof side rails
EXTERIOR: Rock protection sill rails
EXTERIOR: Body color grille
EXTERIOR: Halogen headlamps w/time off delay
EXTERIOR: Front door tinted glass
EXTERIOR: Tinted windshield glass
EXTERIOR: Deep tint sunscreen glass
EXTERIOR: Fog lamps
EXTERIOR: Front license plate bracket
EXTERIOR: Fold away pwr mirrors
EXTERIOR: Variable intermittent windshield wipers
EXTERIOR: Rear window wiper/washer
EXTERIOR: Rear swing gate w/flipper glass
INTERIOR: Cloth high-back reclining front bucket seats
INTERIOR: 65/35 split fold down rear seat
INTERIOR: Full length floor console
INTERIOR: Driver & passenger assist handle
INTERIOR: Front/rear floor mats
INTERIOR: Leather-wrapped tilt steering wheel
INTERIOR: Sentry key theft-deterrent system
INTERIOR: Tachometer
INTERIOR: Tire pressure monitoring system
INTERIOR: Pwr driver & front passenger windows w/1-touch
INTERIOR: Speed sensitive pwr locks
INTERIOR: Speed control
INTERIOR: Remote keyless entry
INTERIOR: Illuminated entry
INTERIOR: Pwr accessory delay
INTERIOR: Air conditioning
INTERIOR: Rear window defroster
INTERIOR: AM/FM/CD stereo w/changer control, (6) speakers
INTERIOR: Fixed long mast antenna
INTERIOR: Aux 12-volt pwr outlet
INTERIOR: Illuminated visor vanity mirrors
INTERIOR: Lamps-inc: courtesy, map/reading
INTERIOR: Cargo tie down loops & grocery bag hooks
INTERIOR: Rear aux 12-volt pwr outlet
SAFETY: Pwr 4-wheel anti-lock disc brakes w/brake assist
SAFETY: Driver & front passenger advanced multi-stage airbags w/occupant classification system
SAFETY: 3-point seat belts all seating positions
SAFETY: LATCH-ready child seat anchors
SAFETY: All speed traction control
SAFETY: Electronic stability control
SAFETY: Enhanced accident response system

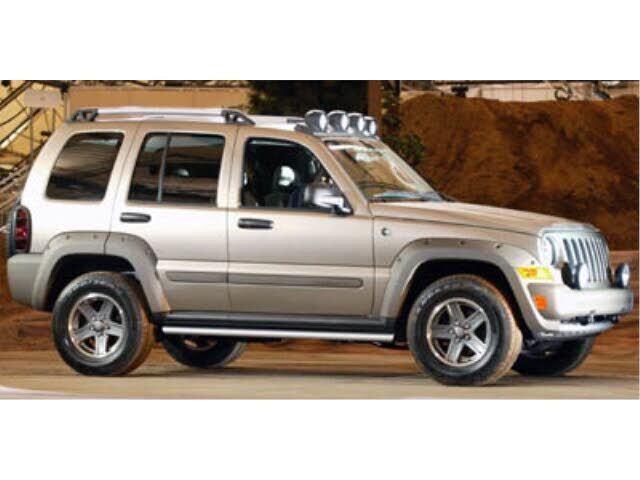

Jeep Liberty
Body Style: 4 Door
Drivetrain: 4-Wheel Drive
Trans Order Code: DGV
Trans Type: 4
Trans Description Cont.: Automatic
First Gear Ratio (:1): 2.84
Second Gear Ratio (:1): 1.57
Third Gear Ratio (:1): 1.00
Fourth Gear Ratio (:1): 0.69
Reverse Ratio (:1): 2.21
Final Drive Axle Ratio (:1): 3.73
Transfer Case Gear Ratio (:1), High: 1.00
Transfer Case Gear Ratio (:1), Low: 2.72
EPA Classification: 4WD Sport Utility Vehicles
Passenger Capacity: 5
Passenger Volume (ft³): 103.7
Front Head Room (in): 40.7
Front Leg Room (in): 40.8
Front Shoulder Room (in): 56.5
Front Hip Room (in): 57.0
Second Head Room (in): 42.1
Second Leg Room (in): 37.2
Second Shoulder Room (in): 56.5
Second Hip Room (in): 47.4
Base Curb Weight (lbs): 4044
EPA Fuel Economy Est - City (MPG): 18
EPA Fuel Economy Est - Hwy (MPG): 22
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 750
Engine Order Code: EKG
Engine Type: Gas V6
Displacement: 3.7L/225
Fuel System: SMPI
SAE Net Horsepower @ RPM: 210 @ 5200
SAE Net Torque @ RPM: 235 @ 4000
Cold Cranking Amps @ 0° F (Primary): 600
Maximum Alternator Capacity (amps): 160
Total Cooling System Capacity (qts): 14.0
Suspension Type - Front: Independent
Suspension Type - Rear: Trailing arm
Suspension Type - Front (Cont.): w/stabilizer bar
Suspension Type - Rear (Cont.): w/stabilizer bar
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Stabilizer Bar Diameter - Rear (in): - TBD -
Front Tire Order Code: TR7
Rear Tire Order Code: TR7
Spare Tire Order Code: TBB
Front Tire Size: P225/75R16
Rear Tire Size: P225/75R16
Spare Tire Size: Full-Size
Front Wheel Size (in): 16 x 7.0
Rear Wheel Size (in): 16 x 7.0
Spare Wheel Size (in): 16 x 7.0
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum
Steering Type: Pwr rack & pinion
Steering Ratio (:1), Overall: 18.2
Lock to Lock Turns (Steering): 3.6
Turning Diameter - Curb to Curb (ft): 35.9
Turning Diameter - Wall to Wall (ft): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 11.3 x 1.1
Rear Brake Rotor Diam x Thickness (in): 11.2 x 0.5
Fuel Tank Capacity, Approx (gal): 20.5
Wheelbase (in): 104.3
Length, Overall (in): 174.4
Width, Max w/o mirrors (in): 71.6
Height, Overall (in): 70.2
Track Width, Front (in): 60.0
Track Width, Rear (in): 59.7
Min Ground Clearance (in): 9.4
Rear Door Opening Height (in): - TBD -
Rear Door Opening Width (in): - TBD -
Liftover Height (in): - TBD -
Cargo Area Length @ Floor to Seat 1 (in): - TBD -
Cargo Area Length @ Floor to Seat 2 (in): - TBD -
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): - TBD -
Cargo Box (Area) Height (in): - TBD -
Cargo Volume to Seat 1 (ft³): 69.0
Cargo Volume to Seat 2 (ft³): 29.0
158,213 km
Automatic
4WD
Gasoline
3.7L V6 Cylinder Engine
6 Cylinder
SUV
Owners
