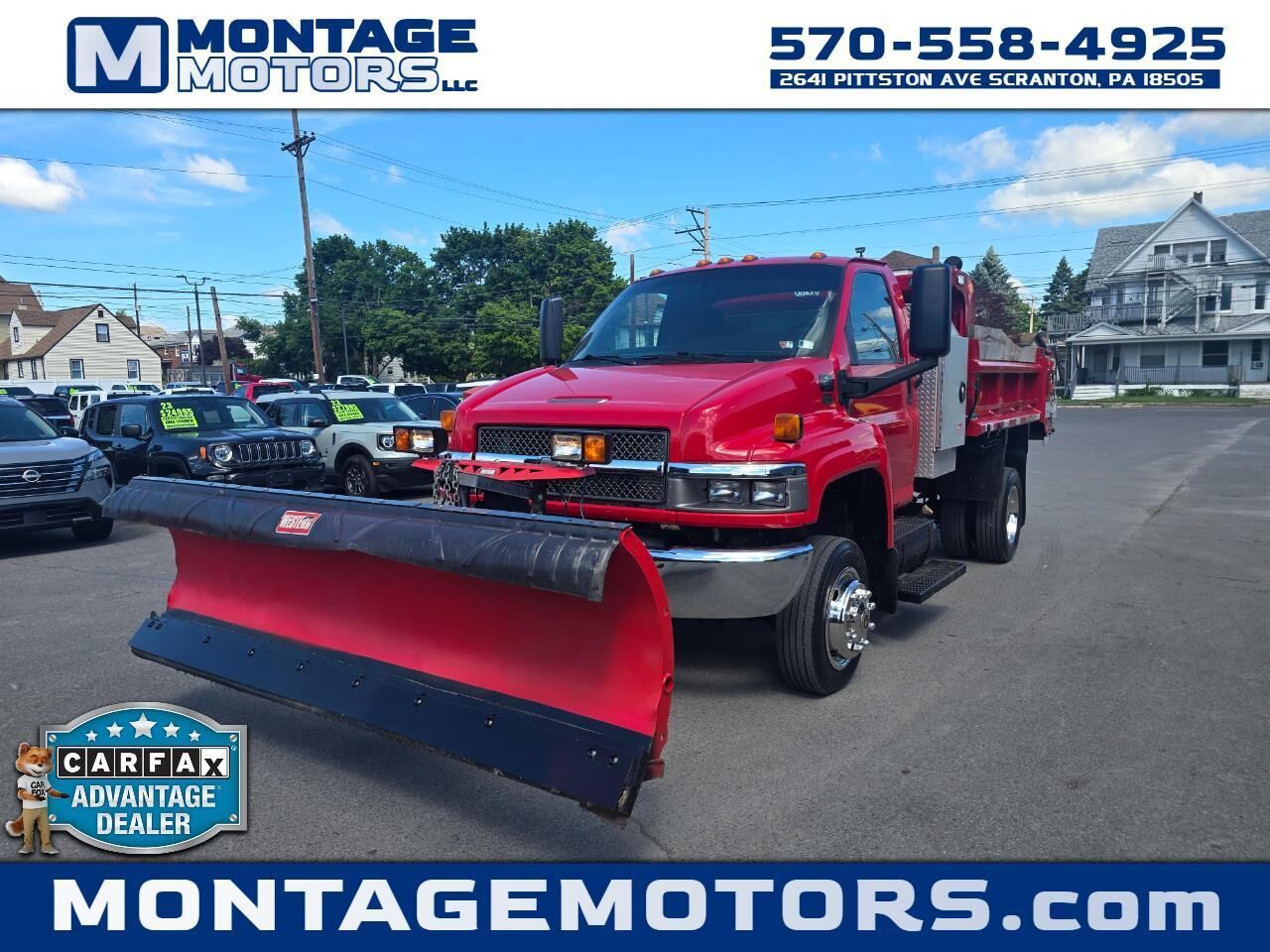

Plow & Spreader
Inspected
One Owner
Clean Car Fax
GVWR, 19,500 lbs. (8845 kg) capacity NOTE: Trucks that are used primarily to tow a trailer may be liable to Federal Excise Tax (FET). A New Law (Highway Transportation Bill HR3) was passed on August 10, 2005 - Check with IRS for guidelines
Air cleaner, dry type
Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
75 mph (120 kph) speed governor - controlled by the speed rating of the tires ordered
Alternator, AD244 Delco-Remy 150-amp maximum
Battery, single 600 CCA Delphi Freedom 12V - 115-minute reserve capacity at 27 degrees C, 600 CCA at -18 degrees C grounded directly to starter, (Requires gasoline engine) (N/A with ANQ Snow Plow Prep package)
Exhaust, single horizontal - passenger side mounted inside frame rail. With Gasoline engines, stainless-steel exhaust. With diesel engines, aluminized steel exhaust, oxidation catalyst, diesel particulate filter and exhaust gas cooler.
TranSynd synthetic automatic transmission fluid
Transfer case, New Venture Gear - model NV273 two-speed, electrically actuated, IP mounted switch. (Includes shield)
Front axle, 8000 lbs. (3628 kg) capacity - solid drive axle. Up to 45 degree turn angle (Includes 4 piston brake apply calipers) Manual Locking Hubs
Front suspension, tapered leaf, 8000 lbs. (3628 kg) capacity
Front shock absorber, diameter 1.375" (35mm)
Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
Rear axle, single speed, Dana S14-110 13,500 lbs. (6123 kg) capacity - full floating, Includes 2-piston brake applied calipers
Four-wheel drive
Rear axle ratio, 5.13:1, (Requires HD2 rear axle)
Rear suspension, multi-leaf, 15,000 lbs. (6804 kg) capacity
Rear suspension brackets are riveted to frame in lieu of bolts
Rear shock absorber not desired (N/A with tapered leaf springs)
Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
Wheelbase, 152" (386.1 cm) - with 84" (213.4 cm) CA and 146" (370.8 cm) CE. Includes a 6mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
Frame, 8mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
Fuel tank, single, 40-gallon (151L) fuel capacity - gas or diesel, located behind rear axle with fuel fill neck through frame rail and a black tethered fuel cap with gasoline engines and a green tethered fuel cap with diesel engines, DRIVER SIDE FILL NECK ONLY. NO AUXILIARY FUEL PORTS MINIMUM OVERHANG = 60" (5 FEET)
Fuel sender assembly. Robust fuel pump
Tethered fuel cap
Parking brake, rear in-wheel park brake - hand lever operated
Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
Windows, Solar-Ray tinted - all windows
Exterior roof drip moldings
Provisions for mounting front license plate
Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
Windshield wipers, 2-speed and intermittent, with pulse washers
Steps under cab doors
Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
Paint scheme, solid, upper color
Paint scheme, solid, lower color
Molded vinyl floor covering
Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
Two sided single common key for doors and ignition
Headlamp warning buzzer
Steering wheel, simulated leather
Sunshades, passenger side and driver side, vinyl-covered
Warning tone, key-in-ignition
Seat belt warning indicator
Trim console - located next to driver's seat, and two cupholder
Coat hooks (2) located on cab back panel
Cloth headliner
Tachometer with automatic and manual transmissions
Electronic engine hour meter
Steering, power - ZF variable ratio power
Gauges, low oil pressure and coolant level, high coolant and engine oil temperature
Engine "Check Gauges" telltale light and buzzer, oil pressure gauge
Provisions for stereo - Includes AM/FM antenna, lead wiring for speakers, and separate door chime module, (N/A with ZQ2 driver convenience package)
Interior trim, Very Dark Pewter (Requires 69U Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
Air bags, Supplemental Inflatable Restraints not included. This vehicle does not include any air bags
