License Plate Bracket
Front (Included For Required States At No Charge.)
Lpo
19" (48.3 Cm) Gloss Black Premium Painted Aluminum Wheels (Includes (Rjp) 19" Y-Rated Summer Performance Tires
Lpo. Not Available When (Q5W) 17" X 8" Premium Painted Aluminum Wheels
(Q5U) 17" X 8" Polished Aluminum Wheels
(Ptw) 18" X 8" Forged Polished Aluminum Wheels
(5Xw) 19" Ultra-Bright Machined Finish Aluminum Wheels With Silver Premium Painted Pockets
Lpo Or (5Xy) 19" Gloss Black Premium Painted Aluminum Wheels
Lpo Are Ordered. )
Audio System AM/FM Stereo
Dual Usb Ports
Sd Card Slot And Auxiliary Audio Port With Color Information Display 4.2" Screen (Std) (Upgradeable To (Io5) Cue Information And Media Control System When (Y24) Cue And Surround Sound Is Ordered.)
Jet Black W/Jet Black Accents
Leatherette Seating Surfaces With Oil-Rubbed Bronze Appearance Trim.
Seats
Front Bucket (Std)
Keyless Start
Black Raven
225/35Zr19 Front And 225/30Zr19 Rear
Y-Rated Summer Performance Tires (Included And Only Available When (5Xw) 19" Ultra-Bright Machined Finish Aluminum Wheels With Silver Premium Panted Pockets
(5Xy) 19" Manoogian Premium Painted Aluminum Wheels
Lpo Or (5Xz) 19" Gloss Black Premium Painted Aluminum Wheels
Lpo Are Ordered.) (Do Not Use Summer Only Tires In Winter Conditions
As It Would Adversely Affect Vehicle Safety
Performance And Durability. Use Only Gm-Approved Tire And Wheel Combinations. Unapproved Combinations May Change The Vehicle'S Performance Characteristics. For Important Tire And Wheel Information
Go To Gmaccessorieszone.Com Or See Your Dealer.)
Wheels
19" X 8" Front
19" X 9" Rear Aluminum
Preferred Equipment Group Includes Standard Equipment
Transmission
6-Speed Automatic (Std)
Engine
2.5L I4
Di
Dohc
Vvt (202 Hp [151 Kw] @ 6300 Rpm
191 Lb-Ft Of Torque [258 N-M] @ 4400 Rpm) (Std)
Emissions
Federal Requirements
HandsFree/Bluetooth
Keyless Entry
Satellite Radio
New Arrival
(Includes (RJP) 19" Y-rated summer performance tires, LPO. Not available when (Q5W) 17" x 8" premium painted aluminum wheels, (Q5U) 17" x 8" polished aluminum wheels, (PTW) 18" x 8" forged polished aluminum wheels, (5XW) 19" ultra-bright machined finish aluminum wheels with silver premium painted pockets, LPO or (5XY) 19" gloss Black premium painted aluminum wheels, LPO are ordered. ): 5XZ
(Included for required states at no charge.): VK3
MECHANICAL: Engine, 2.5L I4, DI, DOHC, VVT (202 hp [151 kW] @ 6300 rpm, 191 lb-ft of torque [258 N-m] @ 4400 rpm)
MECHANICAL: Transmission, 6-speed automatic
MECHANICAL: Rear axle, 3.45 ratio
MECHANICAL: Drivetrain, rear-wheel drive
MECHANICAL: Battery, maintenance free with rundown protection
MECHANICAL: Keyless ignition, push button start
MECHANICAL: Recovery hook, front or rear location
MECHANICAL: Suspension, Sport
MECHANICAL: Steering, ZF premium rack-and-pinion, electric
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc
MECHANICAL: Exhaust, single with bright tip
EXTERIOR: Wheels, 17" x 8" (43.2 cm x 20.3 cm) premium painted aluminum (Upgradable to (Q5U) 17" x 8" (43.2 cm x 20.3 cm) polished aluminum wheels)
EXTERIOR: Tires, P225/45R17 all-season
EXTERIOR: Tire inflation kit (Not available with (RA6) P255/45R17 all-season, blackwall run-flat tires.)
EXTERIOR: Fascias, front and rear body-color
EXTERIOR: Moldings, rocker panel, body-color
EXTERIOR: Grille, Grey premium paint accented
EXTERIOR: Headlamps, projector type halogen, includes flash-to-pass and Twilight Sentinel
EXTERIOR: Lamp, LED center high-mounted stop/brake (CHMSL)
EXTERIOR: Mirrors, outside heated power-adjustable, body-color, manual-folding
EXTERIOR: Glass, Solar-Ray light-tinted
EXTERIOR: Glass, solar absorbing, windshield
EXTERIOR: Wipers, front intermittent
ENTERTAINMENT: Audio system AM/FM stereo, dual USB ports, SD card slot and auxiliary audio port with color information display 4.2" screen (Upgradeable to (IO5) CUE Information and Media Control System when (Y24) CUE and Surround Sound is ordered.)
ENTERTAINMENT: Audio system feature, Bose premium 7-speaker system
ENTERTAINMENT: SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (Not available with (Y24) CUE and Surround Sound.) (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
ENTERTAINMENT: Bluetooth for phone, personal cell phone call connectivity to vehicle audio system
ENTERTAINMENT: Antenna, integral front and rear
INTERIOR: Seats, front bucket
INTERIOR: Leatherette seating surfaces
INTERIOR: Seat adjusters, driver and front passenger 6-way power, plus 2-way power lumbar plus 4-way adjustable head restraints
INTERIOR: Headrests, rear, outboard seats, adjustable 2-way
INTERIOR: Console, front with shifter
INTERIOR: Shift lever, center console mounted
INTERIOR: Armrest, front center
INTERIOR: Armrest, rear center with cupholders
INTERIOR: Floor mats, carpeted front and rear
INTERIOR: Steering wheel, leather-wrapped rim
INTERIOR: Steering wheel controls, mounted controls for audio, phone and cruise
INTERIOR: Steering column, manual rake and telescopic
INTERIOR: Engine oil indicator
INTERIOR: Instrument cluster, electroluminescent
INTERIOR: Driver Information Center, 5.7" color display includes driver personalization, warning messages and vehicle information
INTERIOR: Windows, power with front express-up and down, and rear express-down with passenger lockout feature
INTERIOR: Retained accessory power power windows, sunroof (when equipped) and audio system remain operational for 10 minutes after the ignition is switched off or until the driver's door is opened.
INTERIOR: Door locks, power programmable with lockout protection
INTERIOR: Remote Keyless Entry
INTERIOR: Cruise control, electronic with set and resume speed and with 1 mph and 5 mph increment adjustment
INTERIOR: Trunk release, power, remote
INTERIOR: Theft-deterrent system, vehicle, PASS-Key III+ with immobilizer
INTERIOR: Climate control, dual-zone automatic
INTERIOR: Defogger, rear-window, electric with front and side window outlets for the driver and front passenger
INTERIOR: Air filtration system
INTERIOR: Mirror, inside rearview, frameless
INTERIOR: Console, overhead includes reading lamps and OnStar controls
INTERIOR: Lighting accent, LED spotlights in doors and overhead console
INTERIOR: Coat hooks, driver- and passenger-side rear
INTERIOR: Visors, driver and front passenger illuminated vanity mirrors
INTERIOR: Lighting, interior, front and rear reading lights, and cargo area lamp
SAFETY: StabiliTrak, vehicle stability enhancement system
SAFETY: Traction control, all-speed, brake and engine controlled
SAFETY: Daytime running lamps
SAFETY: Air bags, driver and front passenger frontal (dual stage for passenger), knee and side, front and rear head curtain (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: Air bag, Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: OnStar, 1 year of Directions and Connections plan includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation (Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
SAFETY: Safety belts, 3-point, driver and front passenger
SAFETY: Safety belts, 3-point, rear, all seating positions
SAFETY: Door locks, rear child security
SAFETY: Child seat restraint system
SAFETY: LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
SAFETY: Trunk emergency release handle
SAFETY: Tire Pressure Monitoring System

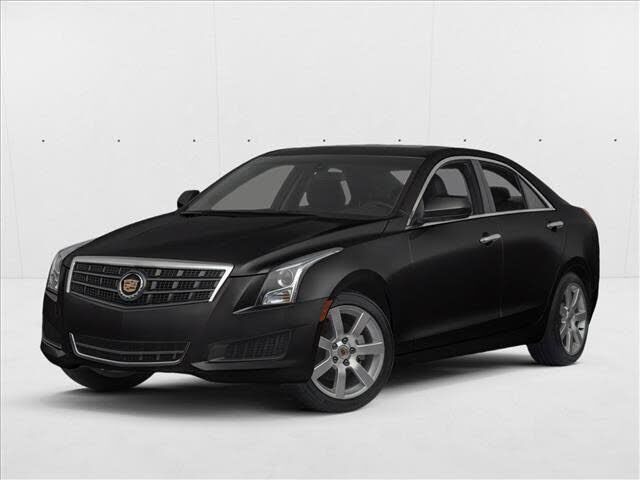

Cadillac ATS
Body Style: Sedan
Drivetrain: Rear Wheel Drive
Trans Order Code: MYA
Trans Type: 6
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.06
Second Gear Ratio (:1): 2.37
Third Gear Ratio (:1): 1.55
Fourth Gear Ratio (:1): 1.16
Fifth Gear Ratio (:1): 0.85
Sixth Gear Ratio (:1): 0.67
Reverse Ratio (:1): 3.20
Final Drive Axle Ratio (:1): 3.45
EPA Classification: Compact
Number of Passenger Doors: 4
Passenger Capacity: 5
Passenger Volume (ft³): 90.9
Front Head Room (in): 38.60
Front Leg Room (in): 42.50
Front Shoulder Room (in): 55.20
Front Hip Room (in): 53.00
Second Head Room (in): 36.80
Second Leg Room (in): 33.50
Second Shoulder Room (in): 53.90
Second Hip Room (in): 52.30
Base Curb Weight (lbs): 3319
Tons/yr of CO2 Emissions @ 15K mi/year: 7.0
EPA Fuel Economy Est - City (MPG): 22
EPA Fuel Economy Est - Hwy (MPG): 33
Fuel Economy Est-Combined (MPG): 26
Engine Order Code: LCV
Engine Type: Gas I4
Displacement: 2.5L/150
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 202 @ 6300
SAE Net Torque @ RPM: 191 @ 4400
Cold Cranking Amps @ 0° F (Primary): - TBD -
Maximum Alternator Capacity (amps): - TBD -
Total Cooling System Capacity (qts): 7.1
Suspension Type - Front: MacPherson Strut
Suspension Type - Rear: Five-Link
Suspension Type - Front (Cont.): w/Coil Springs
Suspension Type - Rear (Cont.): w/Coil Springs
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Front Tire Order Code: RJP
Rear Tire Order Code: RJP
Front Tire Size: 225/35ZR19
Rear Tire Size: 225/30ZR19
Front Wheel Size (in): 19 x 8.0
Rear Wheel Size (in): 19 x 9.0
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Steering Type: Electric Rack-&-Pinion
Steering Ratio (:1), Overall: 16.8
Lock to Lock Turns (Steering): 3.16
Turning Diameter - Curb to Curb (ft): 36.38
Turning Diameter - Wall to Wall (ft): N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 11.80 x 1.02
Rear Brake Rotor Diam x Thickness (in): 12.40 x 0.90
Fuel Tank Capacity, Approx (gal): 16.0
Wheelbase (in): 109.30
Length, Overall (in): 182.80
Width, Max w/o mirrors (in): 71.10
Height, Overall (in): 55.90
Track Width, Front (in): 59.50
Track Width, Rear (in): 60.90
Min Ground Clearance (in): - TBD -
Liftover Height (in): - TBD -
Trunk Volume (ft³): 10.4
