Leather Seats
Navigation System
Rear Vision Camera (Requires (A60) Locking Tailgate Or (Pdf) Ltz Plus Package. Includes (Drc) Inside Rearview Mirror With Camera Display Unless (Uys) Audio System With Navigation
AM/FM Stereo With CD Player And MP3 Playback Is Ordered. Not Available With (Zw9) Pickup Box Delete.) (Note: Images Appear On Navigation Screen For Units Equipped With (Uys) AM/FM Stereo With MP3 Compatible CD/Dvd Player And Navigation. For Units Not Equipped With Navigation Systems Images Will Appear Within Rearview Mirror.)
Rear Parking Assist
Ultrasonic With Audible Warning (Included And Only Available With (Pdf) Ltz Plus Package.)
Air Bags
Seat-Mounted Side-Impact
Driver And Right-Front Passenger For Thorax And Pelvic Protection Always Use Safety Belts And The Correct Child Restraints For Your Child'S Age And Size
Even In Vehicles Equipped With Air Bags. Children Are Safer When Properly Secured In A Rear Seat In The Appropriate Infant
Child Or Booster Seat. See The Owner'S Manual And Child Safety Seat Instructions For More Safety Information.) (Included And Only Available With (Asf) Head Curtain Side-Impact Air Bags.
Head Curtain Side-Impact
Front Outboard Seating Positions With Rollover Sensor Head Curtain Side Air Bags Are Designed To Help Reduce The Risk Of Head And Neck Injuries To Front And Rear Seat Outboard Occupants On The Near Side Of Certain Side-Impact Collisions. Always Use Safety Belts And The Correct Child Restraints For Your Child'S Age And Size
Child Or Booster Seat. See The Owner'S Manual And Child Safety Seat Instructions For More Safety Information.) (Available On Single Rear Wheel Models Only. Requires (Kb6) Heated And Cooled Driver And Front Passenger Seats.
Stabilitrak
Stability Control System With Proactive Roll Avoidance And Traction Control Includes Electronic Trailer Sway Control And Hill Start Assist (Standard On Single Rear Wheel Gvwr Only.)
Universal Home Remote (Included And Only Available With (Pdf) Ltz Plus Package Or (Cf5) Power Sunroof. Not Available With (Vyu) Snow Plow Prep Package.)
Pedals
Power-Adjustable For Accelerator And Brake (Included And Only Available With (Pdf) Ltz Plus Package.)
Lpo
All-Weather Floor Mats Ebony Deep Ribbed Rubber (Crew Cab Models Also Include Rear Floor Mats)
Seats
Heated And Cooled Driver And Front Passenger Front Bucket Includes 12-Way Power Driver And Front Passenger Seat Adjusters Including 4-Way Power Lumbar Control
2-Position Driver Memory
Adjustable Head Restraints
Floor Console And Storage Pockets (Requires Interior Trim (196) Ebony
(336) Light Cashmere/Dark Cashmere Or (836) Light Titanium/Dark Titanium. On Single Rear Wheel Models
Requires (Asf) Head Curtain Side-Impact Air Bags.)
Navtraffic Is Available In Over 130 Markets And Works With Your Vehicle'S Navigation System To Give You Detailed Traffic Data Right When You Need It Most - While You'Re Driving. You'Ll Avoid Traffic Tie-Ups
Save Time And Gas By Getting Alternate Routes
And
In Some Cases
Receive Traffic Speed And Drive-Time Information. Plus
You Can Use Navtraffic At The Same Time You'Re Enjoying SiriusXM Satellite Radio. You'Ll Find That Once You Start Using Navtraffic
You Won'T Want To Drive Without It. (Included And Only Available With (Uys) AM/FM Stereo With MP3 Compatible CD/Dvd Player And Navigation. If You Decide To Continue Your Service At The End Of Your Trial Subscription
The Plan You Choose Will Automatically Renew And Bill At Then-Current Rates Until You Call 1-866-635-2349 To Cancel. See SiriusXM Customer Agreement For Complete Terms At SiriusXM.Com. Other Fees And Taxes Will Apply. All Fees And Programming Subject To Change.)
Tailgate
Ez-Lift (Included And Only Available With (A60) Locking Tailgate.)
Locking (Included With (Pdf) Ltz Plus Package. Available To Order As A Free Flow Option And Requires (Uvc) Rear Vision Camera.)
License Plate Front Mounting Package (Will Be Forced On Orders With Ship-To States That Require A Front License Plate)
Rear Wheelhouse Liner (Included And Only Available With (Pdf) Ltz Plus Package.)
Exhaust Brake (Included And Only Available With (Lml) Duramax 6.6L Turbo Diesel V8 Engine.)
Brakes
4-Wheel Antilock
4-Wheel Disc With Single Rear Wheels
Skid Plate Package
Frame-Mounted Shields Includes Front Underbody Shield Starting Behind Front Bumper And Running To First Cross-Member
Protecting Front Underbody
Oil Pan
Differential Case And Transfer Case (Not Available With 2Wd Models Unless (Z71) Off-Road Suspension Package Is Ordered. Included With (Z71) Off-Road Suspension Package Or (Vyu) Snow Plow Prep Package.)
Trailering Wiring Provisions
For Camper
Fifth Wheel And Gooseneck Trailer Includes Additional 7-Way Wiring Harness Routed To Front Of Pickup Box (Requires (Z82) Heavy-Duty Trailering Equipment)
Battery
Heavy-Duty Dual 730 Cold-Cranking Amps
Maintenance-Free With Rundown Protection And Retained Accessory Power (Included And Only Available With (Lml) Duramax 6.6L Turbo Diesel V8 Engine.)
Engine Block Heater
Ltz Plus Package Includes (Ug1) Universal Home Remote
(A60) Locking Tailgate
(Ppa) Ez-Lift Tailgate
(Jf4) Power-Adjustable Pedals
(Ud7) Rear Parking Assist And (S41) Rear Wheelhouse Liner
Lpo. (Not Available With (Zw9) Pickup Box Delete Or (Vqg) Protection Package
Lpo. When (Vyu) Snow Plow Prep Package Or (Trw) Provision For Cab Roof-Mounted Lamp/Beacon Is Ordered
Does Not Include (Ug1) Universal Home Remote.)
Audio System With Navigation
AM/FM/SiriusXM Stereo With CD Player 7-Inch Touchscreen Color Interface Display (Cid)
30 Gig Usable Hard Drive Storage Space
With Navigation And Voice Recognition
Usb Port
MP3 Playback Capability
Radio Data System (Rds)
Speed-Compensated Volume
Time Shift Recording Capability (Requires (Pdf) Ltz Plus Package And (Uvc) Rear Vision Camera. Includes (Ubs) Navtraffic. Not Available With (Zw9) Pickup Box Delete.)
Ebony
Custom Leather-Appointed Front Seat Trim (Requires (Kb6) Heated And Cooled Driver And Front Passenger Seats.)
Front Bucket Includes 10-Way Power Driver And Front Passenger Seat Adjusters Including 2-Way Power Lumbar Control
Heated Seat Cushions And Seatbacks
Adjustable Outboard Head Restraints
Floor Console And Storage Pockets (Std)
Silver Ice Metallic
Paint
Solid
Tire
Spare Lt265/70R18E All-Season
Blackwall (Included And Only Available With (Qwf) Lt265/70R18E All-Terrain Tires Or (Qgm) Lt265/70R18E All-Terrain Tires. Available To Order When (Zw9) Pick-Up Box Delete Is Ordered.)
Tires
Lt265/70R18E All-Season
Blackwall (Not Available With (9F6) 12
800 Lbs. Gvwr Or (Chx) 13
025 Lbs. Gvwr (Dual Rear Wheel). Included With (Pyv) 18" (45.7 Cm) Forged Polished Aluminum Wheels.)
Wheels
18" (45.7 Cm) Forged Polished Aluminum Includes Painted Center Caps And A Steel Spare. (Not Available With (9F6) 12
025 Lbs. Gvwr (Dual Rear Wheel). Included With (Wea) Z71 Appearance Package.) Spare Not Included With (Zw9) Pickup Box Delete Unless A Spare Tire Is Ordered
Gvwr
11
600 Lbs. (5262 Kg) With Single Rear Wheels (Requires Ck30943 With (Lml) Duramax 6.6L Turbo Diesel V8 Engine.)
Ltz Preferred Equipment Group Includes Standard Equipment
Cooled Front Seat(S)
Rear Axle
3.73 Ratio
Transmission
Allison 1000 6-Speed Automatic
Electronically Controlled With Overdrive
Electronic Engine Grade Braking And Tow/Haul Mode (Requires (Lml) Duramax 6.6L Turbo Diesel V8 Engine.)
Engine
Duramax 6.6L Turbo Diesel V8
B20-Diesel Compatible (397 Hp [296.0 Kw] @ 3000 Rpm
765 Lb-Ft Of Torque [1032.8 N-M] @ 1600 Rpm) Includes (K40) Exhaust Brake
(Tuv) Heavy-Duty Dual
730 Cold-Cranking-Amp Battery And (K05) Engine Block Heater.) (Requires (Mw7) Allison 1000 6-Speed Automatic Transmission.
Emissions
California State Requirements
Suspension Package
Handling/Trailering
Heavy-Duty Includes 35Mm Monotube Shocks And 34Mm Front Stabilizer Bar (Std)
Pickup Box
Fleetside (Std)
Chassis
Single Rear Wheel
HandsFree/Bluetooth
Keyless Entry
Satellite Radio
Tow-Package
SEATS, HEATED AND COOLED DRIVER AND FRONT PASSENGER FRONT BUCKET
AIR BAGS, HEAD CURTAIN SIDE-IMPACT, FRONT OUTBOARD SEATING POSITIONS WITH ROLLOVER SENSOR
SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS
Turbocharged
Heated Seats
Cooled Seats
New Arrival
(397 hp [296.0 kW] @ 3000 rpm, 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake, (TUV) heavy-duty dual, 730 cold-cranking-amp battery and (K05) engine block heater.) (Requires (MW7) Allison 1000 6-speed automatic transmission.: LML
with overdrive, electronic engine grade braking and tow/haul mode (Requires (LML) Duramax 6.6L Turbo Diesel V8 engine.): MW7
GT4
(Included and only available with (QWF) LT265/70R18E all-terrain tires or (QGM) LT265/70R18E all-terrain tires. Available to order when (ZW9) pick-up box delete is ordered.): ZWF
7-inch touchscreen Color Interface Display (CID), 30 gig usable Hard Drive storage space, with navigation and voice recognition, USB port, MP3 playback capability, Radio Data System (RDS), speed-compensated volume, time shift recording capability (Requires (PDF) LTZ Plus Package and (UVC) Rear Vision Camera. Includes (UBS) NavTraffic. Not available with (ZW9) pickup box delete.): UYS
includes (UG1) Universal Home Remote, (A60) locking tailgate, (PPA) EZ-Lift tailgate, (JF4) power-adjustable pedals, (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner, LPO. (Not available with (ZW9) pickup box delete or (VQG) Protection Package, LPO. When (VYU) Snow Plow Prep Package or (TRW) provision for cab roof-mounted lamp/beacon is ordered, does not include (UG1) Universal Home Remote.): PDF
K05
includes additional 7-way wiring harness routed to front of pickup box (Requires (Z82) heavy-duty trailering equipment): UY2
includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case (Not available with 2WD models unless (Z71) Off-Road Suspension Package is ordered. Included with (Z71) Off-Road Suspension Package or (VYU) Snow Plow Prep Package.): NZZ
(Included with (PDF) LTZ Plus Package. Available to order as a Free Flow option and requires (UVC) Rear Vision Camera.): A60-R
includes 12-way power driver and front passenger seat adjusters including 4-way power lumbar control, 2-position driver memory, adjustable head restraints, floor console and storage pockets (Requires interior trim (196) Ebony, (336) Light Cashmere/Dark Cashmere or (836) Light Titanium/Dark Titanium. On single rear wheel models, requires (ASF) head curtain side-impact air bags.): KB6
Ebony deep ribbed rubber (Crew Cab models also include rear floor mats): VAV
Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.) (Available on single rear wheel models only. Requires (KB6) heated and cooled driver and front passenger seats.: ASF
(Requires (A60) Locking tailgate or (PDF) LTZ Plus Package. Includes (DRC) inside rearview mirror with camera display unless (UYS) audio system with navigation, AM/FM stereo with CD player and MP3 playback is ordered. Not available with (ZW9) pickup box delete.) (Note: images appear on Navigation screen for units equipped with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation. For units not equipped with Navigation systems images will appear within rearview mirror.): UVC
MECHANICAL: Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (Requires (L96) Vortec 6.0L V8 SFI engine.)
MECHANICAL: Rear axle, 4.10 ratio (Requires (L96) Vortec 6.0L V8 SFI engine.)
MECHANICAL: Suspension Package, Handling/Trailering, heavy-duty includes 35mm monotube shocks and 34mm front stabilizer bar
MECHANICAL: Pickup box, Fleetside
MECHANICAL: Air cleaner, high-capacity
MECHANICAL: Transfer case, electronic shift with rotary dial controls (Requires 4WD models)
MECHANICAL: Differential, heavy-duty automatic locking rear
MECHANICAL: Four wheel drive
MECHANICAL: Trailering equipment, heavy-duty includes trailering hitch platform and 2.5- inch receiver with 2" adapter, 7-wire harness (harness includes wires for: park lamps, backup lamps, right turn, left turn, electric brake lead, battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector, wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller (Will be deleted if (ZW9) pickup box delete is ordered.)
MECHANICAL: Cooling, external engine oil cooler, heavy-duty air-to-oil integral to driver side of radiator tank
MECHANICAL: Cooling, auxiliary external transmission oil cooler, heavy-duty air-to-oil
MECHANICAL: Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
MECHANICAL: Alternator, 125 amps
MECHANICAL: Frame, fully boxed, hydroformed front section
MECHANICAL: Trailer brake controller, integrated
MECHANICAL: Suspension, front independent, torsion bar
MECHANICAL: Suspension, rear 4+1+2 multi-leaf springs for single rear wheel and 3+1+2 multi-leaf springs for dual rear wheel
MECHANICAL: Steering, power, recirculating ball
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with dual rear wheels
MECHANICAL: Exhaust, aluminized stainless-steel muffler and tailpipe
EXTERIOR: Wheels, 17" (43.2 cm) forged polished aluminum (Included on Crew Cab models only. Requires (CHX) 13,025 lbs. GVWR (dual rear wheel).)
EXTERIOR: Tires, LT235/80R17E all-season highway, blackwall (Requires (9F6) 12,800 lbs. GVWR or (CHX) 13,025 lbs. GVWR (dual rear wheel). Includes 7 tires with (E63) Fleetside pickup box. Includes 6 tires with (ZW9) pickup box delete.)
EXTERIOR: Recovery hooks, front, frame-mounted
EXTERIOR: Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
EXTERIOR: Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
EXTERIOR: Bumper, front chrome
EXTERIOR: Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
EXTERIOR: Moldings, bodyside, body-colored
EXTERIOR: Grille, chrome surround
EXTERIOR: Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
EXTERIOR: Fog lamps, front, halogen
EXTERIOR: Lamps, dual cargo area lamps
EXTERIOR: Mirrors, outside heated power-adjustable vertical camper manual-folding and extension, Black includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
EXTERIOR: Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
EXTERIOR: Wipers, front intermittent wet-arm with pulse washers
EXTERIOR: Door handles, color-keyed
ENTERTAINMENT: SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (Not available with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UE0) OnStar, delete. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change. IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use.)
ENTERTAINMENT: Audio system feature, Bose premium speaker system with sub-woofer in center console
ENTERTAINMENT: Bluetooth for phone personal cell phone connectivity to vehicle audio system
INTERIOR: Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
INTERIOR: Seats, Leather-appointed front seats
INTERIOR: Seat adjuster, driver 10-way power
INTERIOR: Seat adjuster, front passenger 10-way power
INTERIOR: Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
INTERIOR: Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
INTERIOR: Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Crew Cab models also include rear floor mats)
INTERIOR: Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock
INTERIOR: Steering wheel, leather-wrapped with theft-deterrent locking feature
INTERIOR: Steering wheel controls, mounted audio controls
INTERIOR: Instrumentation, analog with speedometer, fuel level, engine temperature, tachometer, voltmeter and oil pressure indicators
INTERIOR: Driver Information Center with odometer, trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification) (Driver Information Center controls are operated through the trip button unless (UK3) steering wheel mounted audio controls is ordered. On 1LT and 1LZ, includes 8-point compass and outside temperature.)
INTERIOR: Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
INTERIOR: Windows, power with driver Express-Down (Includes front passenger Express-down.)
INTERIOR: Door locks, power includes Remote Keyless Entry
INTERIOR: Remote vehicle starter system includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (Remote Keyless Entry does not lock/unlock tailgate.)
INTERIOR: Cruise control, electronic with set and resume speed, located on steering wheel
INTERIOR: Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
INTERIOR: Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
INTERIOR: Cup holders, front (Also includes rear cup holders on Crew Cab models.)
INTERIOR: Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
INTERIOR: Mirror, inside rearview auto-dimming
INTERIOR: Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
INTERIOR: Assist handle, front passenger (Also includes rear assist handles in the headliner on Crew Cab models.)
INTERIOR: Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
INTERIOR: Coat hooks, rear driver and passenger side
SAFETY: Daytime Running Lamps with automatic exterior lamp control
SAFETY: Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
SAFETY: OnStar, 6 months of Directions and Connections plan "includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation". Also, updated footnote 1 to now read "Retail orders require (AU3) power door locks and (AU0) Remote Keyless Entry. Also includes Stolen Vehicle Slowdown when (LML) Duramax 6.6L Turbo Diesel V8 engine is not ordered. Not available with a ship-to of Puerto Rico or the Virgin Islands. Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions. (Also includes Stolen Vehicle Slowdown when (LML) Duramax 6.6L Turbo Diesel V8 engine is not ordered. Not available with a ship-to of Puerto Rico or the Virgin Islands. Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
SAFETY: Door locks, rear child security (Crew Cab models only.)

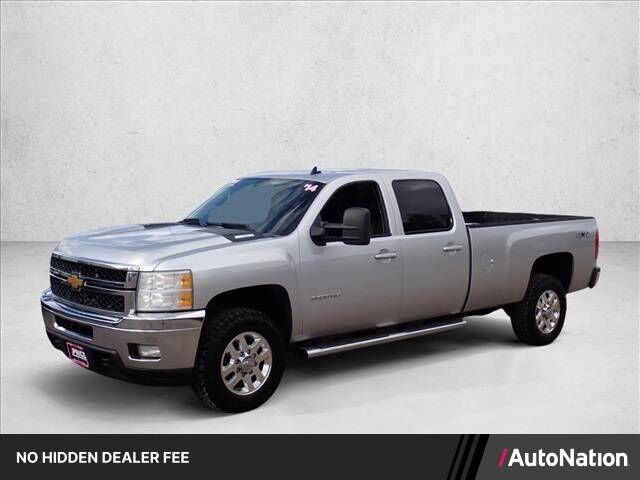

Chevrolet Silverado 3500HD
Body Style: Crew Cab Pickup
Body Code: E63
Drivetrain: 4-Wheel Drive
Trans Order Code: MW7
Trans Type: 6
Trans Description Cont.: Automatic
First Gear Ratio (:1): 3.10
Second Gear Ratio (:1): 1.81
Third Gear Ratio (:1): 1.41
Fourth Gear Ratio (:1): 1.00
Fifth Gear Ratio (:1): 0.71
Sixth Gear Ratio (:1): 0.61
Reverse Ratio (:1): 4.49
Transfer Case Model: Magna MP1625/6
Transfer Case Gear Ratio (:1), High: 1.00
Transfer Case Gear Ratio (:1), Low: 2.69
Passenger Capacity: 5
Front Head Room (in): 41.30
Front Leg Room (in): 41.30
Front Shoulder Room (in): 65.20
Front Hip Room (in): 60.30
Second Head Room (in): 40.60
Second Leg Room (in): 39.00
Second Shoulder Room (in): 65.20
Second Hip Room (in): 65.50
Gross Axle Wt Rating - Front (lbs): 5600
Gross Axle Wt Rating - Rear (lbs): 7050
Curb Weight - Front (lbs): 3816
Curb Weight - Rear (lbs): 2919
Gross Vehicle Weight Rating Cap (lbs): 11600
Gross Combined Wt Rating (lbs): - TBD -
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1365
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16800
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4200
Maximum Trailering Capacity (lbs): 22300
Engine Order Code: LML
Engine Type: Turbocharged Diesel V8
Displacement: 6.6L/403
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 397 @ 3000
SAE Net Torque @ RPM: 765 @ 1600
Engine Oil Cooler: Yes
Cold Cranking Amps @ 0° F (Primary): 730
Maximum Alternator Capacity (amps): 125
Total Cooling System Capacity (qts): - TBD -
Frame Type: Hydroformed
Suspension Type - Front: Independent
Suspension Type - Rear: Multi-Leaf
Spring Capacity - Front (lbs): 5600
Spring Capacity - Rear (lbs): 7050
Axle Type - Front: Independent
Axle Type - Rear: Full-Floating
Axle Capacity - Front (lbs): 5600
Axle Capacity - Rear (lbs): 7050
Axle Ratio (:1) - Rear: 3.73
Shock Absorber Diameter - Front (mm): 35.00
Shock Absorber Diameter - Rear (mm): 35.00
Stabilizer Bar Diameter - Front (in): 1.32
Front Tire Order Code: QWF
Rear Tire Order Code: QWF
Front Tire Size: LT265/70R18E
Rear Tire Size: LT265/70R18E
Front Tire Capacity (lbs): 2860
Rear Tire Capacity (lbs): 3525
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 18 x 8.0
Rear Wheel Size (in): 18 x 8.0
Spare Wheel Size (in): 17 x 6.5
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Pwr Recirculating Ball
Steering Ratio (:1), On Center: 16.00
Steering Ratio (:1), At Lock: N/A
Turning Diameter - Curb to Curb (ft): 50.5
Turning Diameter - Wall to Wall (ft): N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
Fuel Tank Capacity, Approx (gal): 36.0
Fuel Tank Location: - TBD -
Wheelbase (in): 167.70
Length, Overall w/o rear bumper (in): 259.10
Width, Max w/o mirrors (in): 95.90
Height, Overall (in): 77.90
Overhang, Front (in): 38.80
Overhang, Rear w/o bumper (in): 52.60
Front Bumper to Back of Cab (in): 150.90
Cab to Axle (in): 56.00
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): 37.90
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 9.60
Ground Clearance, Rear (in): 8.40
Cargo Box Length @ Floor (in): 97.80
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 62.50
Cargo Box Width @ Wheelhousings (in): 50.60
Cargo Box (Area) Height (in): 21.00
Tailgate Width (in): 61.60
Cargo Volume (ft³): 75.5
Ext'd Cab Cargo Volume (ft³): - TBD -
