Rear Vision Camera (Included And Only Available With (Pdd) Sierra Convenience Package Or (Pef) Sierra Convenience Plus Package. Not Included When (Zw9) Pickup Box Delete Is Ordered.)
Onstar Guidance Plan For 3 Months
Including Automatic Crash Response
Stolen Vehicle Assistance
Roadside Assistance
Turn-By-Turn Navigation And More (Trial Excludes Hands-Free Calling) (Included And Only Available With (Iob) 7" Diagonal Color Touch Screen With Intellilink. Fleet Orders Receive A 6-Month Trial. Visit Www.Onstar.Com For Coverage Map
Details And System Limitations. Services Vary By Model. Onstar Acts As A Link To Existing Emergency Service Providers. Not All Vehicles May Transmit All Crash Data.)
Mirror
Inside Rearview Auto-Dimming (Included And Only Available With (Dpn) Outside Heated Power-Adjustable Camper Mirrors.)
Power Outlet
110-Volt Ac (Included And Only Available With (Pdd) Sierra Convenience Package Or (Pef) Sierra Plus Convenience Package.)
Remote Keyless Entry (Included And Only Available With (Pdd) Sierra Convenience Package Or (Pef) Sierra Plus Convenience Package.)
Onstar With 4G Lte And Built-In Wi-Fi Hotspot Connects To The Internet At 4G Lte Speeds; Includes Onstar Data Trial For 3 Months Or 3Gb (Whichever Comes First) (Included And Only Available With (Iob) 7" Diagonal Color Display Radio With Intellilink. Visit Www.Onstar.Com For Coverage Map
Details And System Limitations. Services Vary By Model. Onstar Acts As A Link To Existing Emergency Service Providers. Not All Vehicles May Transmit All Crash Data. Available Wi-Fi Requires Compatible Mobile Device
Active Onstar Service And Data Plan. Data Plans Provided By At&t.)
Remote Locking Tailgate (Included And Only Available With (Aqq) Remote Keyless Entry
(Pdd) Sierra Convenience Package Or (Pef) Sierra Convenience Plus Package.)
License Plate Kit
Front Note: (Vk3) Deletes Center Lower Bumper Filler Panel. (Will Be Forced On Orders With Ship-To States That Require Front License Plate)
Glass
Deep-Tinted (Included And Only Available With (Pdd) Sierra Convenience Package Or (Pef) Sierra Plus Convenience Package.)
Mirrors
Outside Heated Power-Adjustable Vertical Trailering
Upper Glass
Manual-Folding And Extending
Black; Includes Integrated Turn Signal Indicators Consisting Of 51 Square Inch Flat Mirror Surface Positioned Over A 24.5 Square Inch Convex Mirror Surface With A Common Head And Lower Convex Spotter Glass (Convex Glass Is Not Heated And Not Power Adjustable) And Addition Of Auxiliary Cargo Lamp For Backing Up (Helps To See Trailer When Backing Up With A Trailer) And Amber Auxiliary Clearance Lamp Includes (Dd8) Auto-Dimming Inside Rearview Mirror.) (Included And Only Available With (Pdd) Sierra Convenience Package Or (Pef) Sierra Convenience Plus Package.
Led Lighting
Cargo Box With Switch On Center Switch Bank (Requires (E63) Pickup Box. Included And Only Available With (Pdd) Sierra Convenience Package Or (Pef) Sierra Convenience Plus Package.)
Wheel
18" X 8" (45.7 Cm X 20.3 Cm) Full-Size
Steel Spare. Spare Not Included With (Zw9) Pickup Box Delete Unless A Spare Tire Is Ordered. (Requires 18" Wheels And Tires And Single Rear Wheels. Included With (E63) Pickup Box. Available To Order When (Zw9) Pick-Up Box Delete Is Ordered.)
Underbody Shield
Frame-Mounted Shields Includes Front Underbody Shield Starting Behind Front Bumper And Running To First Cross-Member
Protecting Front Underbody
Oil Pan
Differential Case And Transfer Case (Included With (Vyu) Snow Plow Prep Package.)
Trailer Brake Controller
Integrated (If (Zw9) Pickup Box Delete Or (9J4) Rear Bumper Delete Is Ordered (Jl1) Trailer Brake Controller Is Deleted And Available To Order As A Free Flow Option.)
Trailering Wiring Provisions
For Camper
Fifth Wheel And Gooseneck Trailer Includes Additional 7-Way Wiring Harness Is Located At The Rear Of The Pickup Box Attached To The Rear Frame Cross Member (Requires (Z82) Trailering Equipment. Not Available With (Zw9) Pickup Box Delete.)
Sierra Convenience Plus Package Includes (Dpn) Outside Heated Power-Adjustable Trailering Mirrors
(Aqq) Remote Keyless Entry
(A91) Remote Locking Tailgate
(Uvc) Rear Vision Camera
(Ki4) 110-Volt Power Outlet
(Uf2) Led Cargo Box Lighting
(Ako) Deep-Tinted Glass
(Iob) 7" Diagonal Color Touch Screen With Intellilink And (Z82) Trailering Equipment (Requires Crew Cab Models. Not Available With (Pdd) Sierra Convenience Package
(Zw9) Pickup Box Delete Or (L5P) Duramax 6.6L Turbo Diesel V8 Engine. No Changes Or Substitutions To The Included Sierra Convenience Plus Package Equipment Will Be Allowed Unless Noted Above.) *Gross*
Audio System
7" Diagonal Color Touch Screen With Intellilink
AM/FM With Usb Ports
Auxiliary Jack
Bluetooth Streaming Audio For Music And Most Phones
Pandora Internet Radio And Voice Command Pass-Through To Phone Includes (Uq3) 6-Speaker Audio System
(Ue1) Onstar
(Vv4) Onstar 4G Lte Wi-Fi Hotspot.) (Included With (Pef) Sierra Convenience Plus Package.
Dark Ash Seats With Jet Black Interior Accents
Cloth Seat Trim
Seats
Front 40/20/40 Split-Bench
3-Passenger
Driver And Front Passenger Recline With Outboard Head Restraints And Center Fold-Down Armrest With Storage. Vinyl Has Fixed Lumbar And Cloth Has Manually Adjustable Driver Lumbar. (Std)
Summit White
Paint
Solid
Tire
Spare Lt265/70R18E All-Season
Blackwall (Included And Only Available With (Qwf) Lt265/70R18E All-Season Tires Or (Qgm) Lt265/70R18E All-Terrain Tires. Available To Order When (Zw9) Pick-Up Box Delete Is Ordered.)
Tires
Lt265/70R18E All-Terrain
Blackwall (Requires Single Rear Wheels.)
Wheels
18" (45.7 Cm) Painted Steel Includes 18" X 8" (45.7 Cm X 20.3 Cm) Steel Spare Wheel. Spare Not Included With (Zw9) Pickup Box Delete Unless A Spare Tire Is Ordered. (Std) (Requires Single Rear Wheels
(Qgm) Lt265/70R18E All-Terrain
Blackwall Tires Or (Qwf) Lt265/70R18E All-Season
Blackwall Tires.)
Work Truck Preferred Equipment Group Includes Standard Equipment
Rear Axle
4.10 Ratio (Requires (L96) Vortec 6.0L V8 Sfi Engine.)
Transmission
6-Speed Automatic
Heavy-Duty
Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std) (Requires (L96) Vortec 6.0L V8 Sfi Engine.)
Engine
Vortec 6.0L Variable Valve Timing V8 Sfi E85-Compatible
Flexfuel Capable Of Running On Unleaded Or Up To 85% Ethanol (360 Hp [268.4 Kw] @ 5400 Rpm
380 Lb-Ft Of Torque [515.0 N-M] @ 4200 Rpm) (Std) (Does Not Include E85 Capability With (Zw9) Pickup Box Delete.)
Emissions
Federal Requirements
Suspension Package
Standard Includes 51Mm Twin Tube Shock Absorbers And 33Mm Front Stabilizer Bar (Std)
Pickup Box (Std)
Gvwr
11
000 Lbs. (4990 Kg) With Single Rear Wheels (Std) (Requires K35943 Or K35953. Requires (L96) Vortec 6.0L V8 Sfi Engine.)
HandsFree/Bluetooth
Keyless Entry
Tow-Package
UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS
WiFi Hotspot
New Arrival
(Requires single rear wheels.): QGM-R
with USB ports, auxiliary jack, Bluetooth streaming audio for music and most phones, Pandora Internet radio and voice command pass-through to phone Includes (UQ3) 6-speaker audio system, (UE1) OnStar, (VV4) OnStar 4G LTE Wi-Fi Hotspot.) (Included with (PEF) Sierra Convenience Plus Package.: IOB-R
includes (DPN) outside heated power-adjustable trailering mirrors, (AQQ) Remote Keyless Entry, (A91) remote locking tailgate, (UVC) Rear Vision Camera, (KI4) 110-volt power outlet, (UF2) LED cargo box lighting, (AKO) deep-tinted glass, (IOB) 7" diagonal Color Touch Screen with IntelliLink and (Z82) Trailering equipment (Requires Crew Cab models. Not available with (PDD) Sierra Convenience Package, (ZW9) pickup box delete or (L5P) Duramax 6.6L Turbo Diesel V8 engine. No changes or substitutions to the included equipment will be allowed unless noted above.) *GROSS*: PEF-R
includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member (Requires (Z82) trailering equipment. Not available with (ZW9) pickup box delete.): UY2
includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case (Included with (VYU) Snow Plow Prep Package.): NZZ
with switch on center switch bank (Requires (E63) pickup box. Included and only available with (PDD) Sierra Convenience Package or (PEF) Sierra Convenience Plus Package.): UF2-R
MECHANICAL: Engine, Vortec 6.0L Variable Valve Timing V8 SFI E85-compatible, FlexFuel capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm, 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (Does not include E85 capability with (ZW9) pickup box delete.)
MECHANICAL: Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (Requires (L96) Vortec 6.0L V8 SFI engine.)
MECHANICAL: Rear axle, 4.10 ratio (Requires (L96) Vortec 6.0L V8 SFI engine.)
MECHANICAL: Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
MECHANICAL: Pickup box
MECHANICAL: GVWR, 11,000 lbs. (4990 kg) with single rear wheels (Requires K35943 or K35953. Requires (L96) Vortec 6.0L V8 SFI engine.)
MECHANICAL: Air cleaner, high-capacity
MECHANICAL: Transfer case, with floor-mounted shifter (Included with 4WD models only.)
MECHANICAL: Differential, heavy-duty locking rear
MECHANICAL: Four wheel drive
MECHANICAL: Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Included with (PEF) Sierra Convenience Plus Package. Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
MECHANICAL: Cooling, external engine oil cooler
MECHANICAL: Cooling, auxiliary external transmission oil cooler
MECHANICAL: Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
MECHANICAL: Capless Fuel Fill (Requires gas engine and (E63) pickup box.)
MECHANICAL: Alternator, 150 amps
MECHANICAL: Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)
MECHANICAL: Recovery hooks, front, frame-mounted, black
MECHANICAL: Frame, fully-boxed, hydroformed front section
MECHANICAL: Chassis, single rear wheel
MECHANICAL: Steering, Recirculating ball with smart flow power steering system
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
MECHANICAL: Exhaust, aluminized stainless-steel muffler and tailpipe
EXTERIOR: Wheels, 18" (45.7 cm) painted steel includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels, (QGM) LT265/70R18E all-terrain, blackwall tires or (QWF) LT265/70R18E all-season, blackwall tires.)
EXTERIOR: Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires 18" wheels and tires and single rear wheels. Included with (E63) Pickup Box. Available to order when (ZW9) pick-up box delete is ordered.)
EXTERIOR: Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
EXTERIOR: Bumper, front chrome
EXTERIOR: Bumper, rear chrome with bumper CornerSteps
EXTERIOR: CornerStep, rear bumper
EXTERIOR: Grille surround, chrome
EXTERIOR: Headlamps, high intensity discharge (HID) projector-beam with GMC signature LED lighting
EXTERIOR: Lamps, cargo area, cab mounted with switch on center switch bank
EXTERIOR: Mirrors, outside high-visibility vertical trailering, Black with manual folding and extension and lower convex spotter glass
EXTERIOR: Glass, solar absorbing, tinted
EXTERIOR: Door handles, Black
EXTERIOR: Tailgate and bed rail protection caps, top
EXTERIOR: Tailgate, locking, utilizes same key as ignition and door (Not available with (AQQ) Remote Keyless Entry.)
EXTERIOR: Cargo ties downs (4), movable upper (Deleted when (ZW9) pickup box delete is ordered.)
ENTERTAINMENT: Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with IntelliLink.)
ENTERTAINMENT: 6-speaker audio system (Standard on Crew Cab and Double Cab models and Included and only available on Regular Cab models with (IOB) 7" diagonal color touch screen display radio with IntelliLink.)
INTERIOR: Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
INTERIOR: Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab models.)
INTERIOR: Floor covering, Graphite-colored rubberized-vinyl
INTERIOR: Steering column, manual Tilt-Wheel
INTERIOR: Steering wheel, base
INTERIOR: Instrumentation, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure
INTERIOR: Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
INTERIOR: Windows, power with driver express up and down and express down on all other windows (Standard on Crew Cab and Double Cab. On Regular Cab, Included and only available with (PCR) Sierra Fleet Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, Included and only available with (PDD) Sierra Convenience Package.)
INTERIOR: Door locks, power
INTERIOR: Cruise control, steering wheel-mounted
INTERIOR: Air conditioning, single-zone
INTERIOR: Assist handle, front passenger and driver on A-pillars
SAFETY: StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
SAFETY: Daytime Running Lamps with automatic exterior lamp control
SAFETY: Airbags, Crew Cab: Single-stage frontal airbags for driver and front outboard passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver

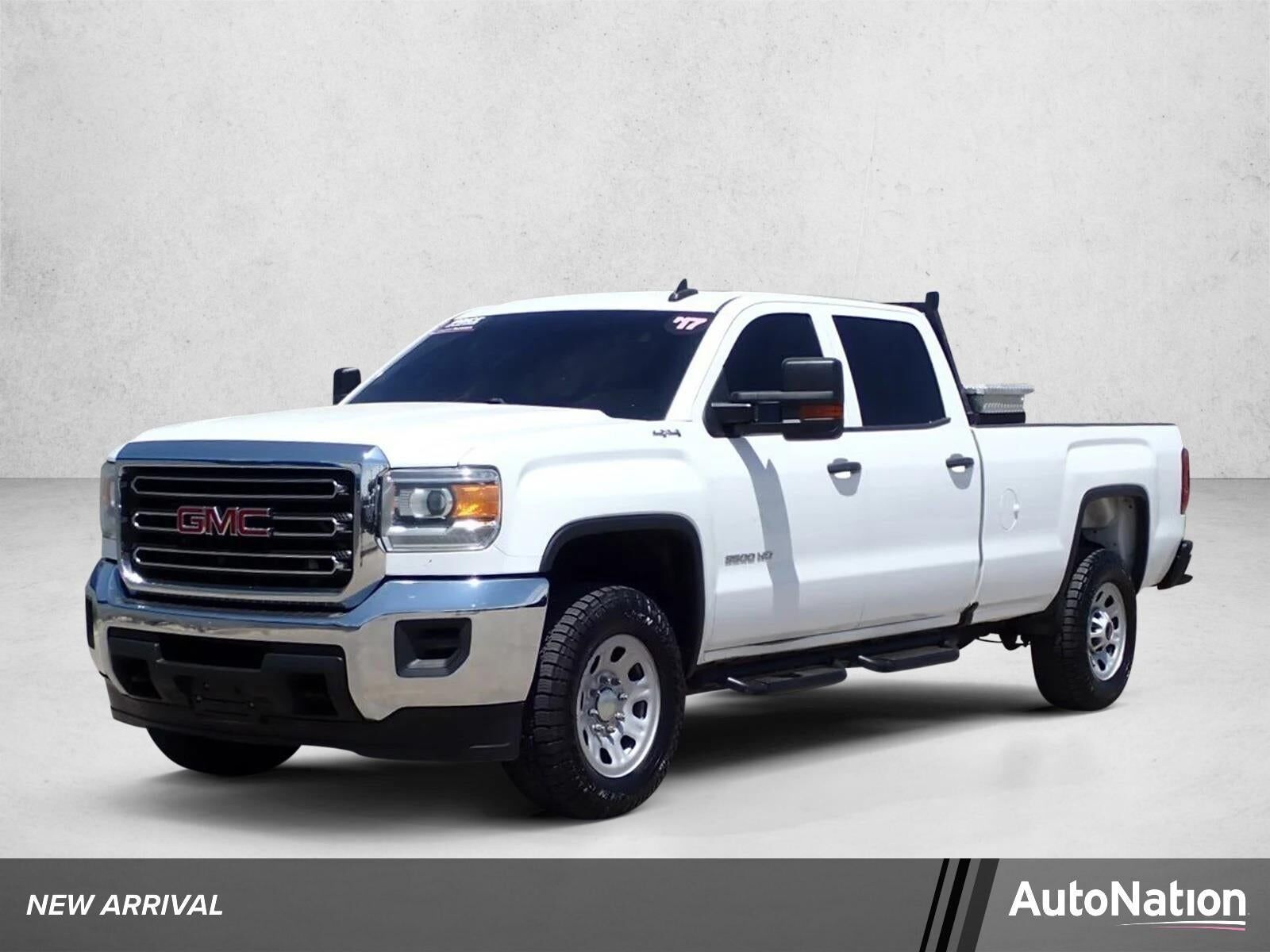

GMC Sierra 3500HD
Body Style: Crew Cab Pickup
Body Code: E63
Drivetrain: Four Wheel Drive
Trans Order Code: MYD
Trans Type: 6
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.03
Second Gear Ratio (:1): 2.36
Third Gear Ratio (:1): 1.53
Fourth Gear Ratio (:1): 1.15
Fifth Gear Ratio (:1): 0.85
Sixth Gear Ratio (:1): 0.67
Reverse Ratio (:1): 3.06
Transfer Case Model: Magna MP1222/5/6
Transfer Case Gear Ratio (:1), High: 1.00
Transfer Case Gear Ratio (:1), Low: 2.72
Passenger Capacity: 6
Front Head Room (in): 42.80
Front Leg Room (in): 45.27
Front Shoulder Room (in): 64.84
Front Hip Room (in): 60.73
Second Head Room (in): 40.50
Second Leg Room (in): 40.93
Second Shoulder Room (in): 64.33
Second Hip Room (in): 60.24
Gross Axle Wt Rating - Front (lbs): 4800
Gross Axle Wt Rating - Rear (lbs): 7050
Curb Weight - Front (lbs): 3934
Curb Weight - Rear (lbs): 2967
Gross Vehicle Weight Rating Cap (lbs): 11000
Gross Combined Wt Rating (lbs): 21100
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13300
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
Maximum Trailering Capacity (lbs): 22700
Engine Order Code: L96
Engine Type: Gas/Ethanol V8
Displacement: 6.0L/366
Fuel System: Electronic Fuel Injection
SAE Net Horsepower @ RPM: 360 @ 5400
SAE Net Torque @ RPM: 380 @ 4200
Engine Oil Cooler: Yes
Cold Cranking Amps @ 0° F (Primary): 720
Maximum Alternator Capacity (amps): 150
Total Cooling System Capacity (qts): - TBD -
Frame Type: Hydroformed
Suspension Type - Front: Independent
Suspension Type - Rear: Multi-Leaf
Spring Capacity - Front (lbs): 4800
Spring Capacity - Rear (lbs): 7050
Axle Type - Front: Independent
Axle Type - Rear: Full-Floating
Axle Capacity - Front (lbs): 4800
Axle Capacity - Rear (lbs): 7050
Axle Ratio (:1) - Front: 4.10
Axle Ratio (:1) - Rear: 4.10
Shock Absorber Diameter - Front (mm): 51.00
Shock Absorber Diameter - Rear (mm): 51.00
Stabilizer Bar Diameter - Front (in): 1.31
Front Tire Order Code: QGM
Rear Tire Order Code: QGM
Spare Tire Order Code: ZWF
Front Tire Size: LT265/70R18E
Rear Tire Size: LT265/70R18E
Spare Tire Size: LT265/70R18E
Front Tire Capacity (lbs): 4800
Rear Tire Capacity (lbs): 7050
Spare Tire Capacity (lbs): - TBD -
Front Wheel Size (in): 18 x 8.0
Rear Wheel Size (in): 18 x 8.0
Spare Wheel Size (in): 18 x 8.0
Front Wheel Material: Steel
Rear Wheel Material: Steel
Steering Type: Pwr Recirculating Ball
Steering Ratio (:1), On Center: 16.00
Steering Ratio (:1), At Lock: N/A
Turning Diameter - Curb to Curb (ft): 56.1
Turning Diameter - Wall to Wall (ft): N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
Fuel Tank Capacity, Approx (gal): 36.0
Fuel Tank Location: - TBD -
Wheelbase (in): 167.70
Length, Overall w/o rear bumper (in): 258.4
Width, Max w/o mirrors (in): 80.51
Height, Overall (in): 78.07
Overhang, Front (in): - TBD -
Overhang, Rear w/o bumper (in): - TBD -
Front Bumper to Back of Cab (in): 151.10
Cab to Axle (in): 55.24
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): 39.41
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): - TBD -
Ground Clearance, Rear (in): 8.53
Cargo Box Length @ Floor (in): 97.76
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): - TBD -
Cargo Box Width @ Wheelhousings (in): 51.02
Cargo Box (Area) Height (in): 21.22
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 76.3
Ext'd Cab Cargo Volume (ft³): - TBD -
