Hitch Guidance (Included And Only Available With (Z82) Trailering Package.)
Steering Column Lock
Electrical (Vehicles Built Prior To 4-4-2022 Will Include Steering Column Lock. Certain Vehicles Built On Or After 4-4-2022 Will Be Forced To Include (R7N) Not Equipped With Steering Column Lock
Which Removes Steering Column Lock. See Dealer For Details.) *No Longer Factory Orderable
See Dealer For Current Availability*
License Plate Kit
Front (Will Be Forced On Orders With Ship-To States That Require Front License Plate)
Alternator
220 Amps (Standard On (L3B) 2.7L Turbo Engine. Included With (Vyu) Snow Plow Prep Package And Available With (L84) 5.3L Ecotec3 V8 Engine. Not Available As Free Flow On Regular Cab Models With (L84) 5.3L Ecotec3 V8 Engine.)
Trailering Package Includes Trailer Hitch
7-Pin And 4-Pin Connectors And (Ctt) Hitch Guidance (Requires (G80) Auto-Locking Rear Differential With (L84) 5.3L Ecotec3 V8 Engine. Not Available With (Zw9) Pickup Bed Delete. Included With (Peb) Pro Value Package.)
Audio System
Gmc Infotainment System With 7" Diagonal Color Touch-Screen
AM/FM Stereo With Seek-And-Scan And Digital Clock
Includes Bluetooth Streaming Audio For Music And Select Phones; Featuring Wired Android Auto And Apple Carplay Capability For Compatible Phones (Std)
Jet Black
Vinyl Seat Trim
Seats
Front 40/20/40 Split-Bench With Covered Armrest Storage And Under-Seat Storage (Lockable) (Std)
Summit White
Tire
Spare 255/70R17 All-Season
Blackwall (Std) (Included With (Qbn) 255/70R17 All-Season
Blackwall Tires.)
Tires
255/70R17 All-Season
Blackwall (Std)
Wheels
17" X 8" (43.2 Cm X 20.3 Cm) Painted Steel
Silver (Std)
Pro Preferred Equipment Group Includes Standard Equipment
Rear Axle
3.42 Ratio (Included And Only Available With (L3B) 2.7L Turbo High-Output Engine.)
Lane Keeping Assist
Gvwr
7000 Lbs. (3175 Kg) (Std) (Requires Crew Cab Or Double Cab 4Wd Model And (L3B) 2.7L Turbo High-Output Engine. Requires Double Cab 4Wd Model And (L84) 5.3L Ecotec3 V8 Engine.)
Keyless Start
Transmission
8-Speed Automatic
(Column Shifter) Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std) (Standard And Only Available With (L3B) 2.7L Turbo High-Output Engine.)
Engine
2.7L Turbo High-Output (310 Hp [231 Kw] @ 5600 Rpm
430 Lb-Ft Of Torque [583 Nm] @ 3000 Rpm) Includes (Kw5) 220-Amp Alternator.) (Std) (Not Available With (Vyu) Snow Plow Prep Package
(Zw9) Pickup Bed Delete
(Kc4) External Engine Oil Cooler Or (X31) X31 Off-Road Package. *Gross*
Emissions
Connecticut
Delaware
Maine
Maryland
Massachusetts
New Jersey
New York
Oregon
Pennsylvania
Rhode Island
Vermont And Washington State Requirements
HandsFree/Bluetooth
Keyless Entry
Tow-Package
Smart Device Integration
LED Headlights
Turbocharged
New Arrival
includes trailer hitch, 7-pin and 4-pin connectors and (CTT) Hitch Guidance (Requires (G80) auto-locking rear differential with (L84) 5.3L EcoTec3 V8 engine. Not available with (ZW9) pickup bed delete. Included with (PEB) Pro Value Package.): Z82
(Standard on (L3B) 2.7L Turbo engine. Included with (VYU) Snow Plow Prep Package and available with (L84) 5.3L EcoTec3 V8 engine. Not available as free flow on Regular Cab models with (L84) 5.3L EcoTec3 V8 engine.): KW5
PACKAGE: GMC Pro Safety includes (UEU) Forward Collision Alert, (UE4) Following Distance Indicator, (UKJ) Front Pedestrian Braking, (TQ5) IntelliBeam, (UHX) Lane Keep Assist with Lane Departure Warning, and (UHY) Automatic Emergency Braking (Includes (T8Z) Buckle to Drive.)
MECHANICAL: Engine, 2.7L Turbo High-Output (310 hp [231 kW] @ 5600 rpm, 430 lb-ft of torque [583 Nm] @ 3000 rpm) (Not available with (VYU) Snow Plow Prep Package, (ZW9) pickup bed delete, (KC4) external engine oil cooler or (X31) X31 Off-Road Package. Includes (KW5) 220-amp alternator.)
MECHANICAL: Transmission, 8-speed automatic, (Column shifter) electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (Standard and only available with (L3B) 2.7L Turbo High-Output engine.)
MECHANICAL: Rear axle, 3.42 ratio (Included and only available with (L3B) 2.7L Turbo High-Output engine.)
MECHANICAL: Pickup bed (Deleted when (ZW9) pickup bed delete is ordered on Regular Cab models.)
MECHANICAL: GVWR, 7000 lbs. (3175 kg) (Requires Crew Cab or Double Cab 4WD model and (L3B) 2.7L Turbo High-Output engine. Requires Double Cab 4WD model and (L84) 5.3L EcoTec3 V8 engine.)
MECHANICAL: Push Button Start
MECHANICAL: Automatic Stop/Start
MECHANICAL: Transfer case, single speed, electronic Autotrac with push button control (4WD models only)
MECHANICAL: Suspension Package, Standard
MECHANICAL: Four wheel drive
MECHANICAL: Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power (Included and only available with (L84) 5.3L EcoTec3 V8 engine or (L3B) 2.7L Turbo High-Output engine.)
MECHANICAL: Frame, fully-boxed, hydroformed front section
MECHANICAL: Recovery hooks, front, frame-mounted, Black (Included with 4WD models or included and only available on 2WD models with (PQA) 1SA Safety Plus Package. Available on 2WD models as an SEO option.) (Included with 4WD models or included on 2WD models with (PQA) 1SA Safety Plus Package. Available on 2WD models as a free flow option.)
MECHANICAL: Cargo tie downs (12), fixed
MECHANICAL: Steering, Electric Power Steering (EPS) assist, rack-and-pinion
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
MECHANICAL: Capless Fuel Fill
MECHANICAL: Exhaust, single outlet
MECHANICAL: Exhaust, aluminized stainless-steel muffler and tailpipe
EXTERIOR: Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel, Silver
EXTERIOR: Tires, 255/70R17 all-season, blackwall
EXTERIOR: Tire, spare 255/70R17 all-season, blackwall (Included with (QBN) 255/70R17 all-season, blackwall tires.)
EXTERIOR: Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
EXTERIOR: Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
EXTERIOR: Bumper, front chrome lower (Requires (VJH) rear chrome bumper and (E63) pickup bed.) (Requires (VJH) rear chrome bumper and (E63) pickup bed. Required with (UD7) Rear Park Assist.)
EXTERIOR: Bumper, rear chrome with bumper CornerSteps (Requires (V46) front chrome bumper and (E63) pickup bed.)
EXTERIOR: CornerStep, rear bumper
EXTERIOR: Grille (Chrome header with flat black grille insert bars)
EXTERIOR: Headlamps, LED projectors with Fade-on/Fade-off animation, LED turn signals and Daytime Running Lamps
EXTERIOR: IntelliBeam, automatic high beam on/off (Included and only available with (PDI) GMC Pro Safety.)
EXTERIOR: Taillamps, LED LED signature taillight and Fade-on/Fade-off animation, incandescent stop, turn and reverse light
EXTERIOR: Mirrors, outside manual, Black (Not available on Regular Cab models.)
EXTERIOR: Glass, solar absorbing, tinted
EXTERIOR: Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
EXTERIOR: Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
EXTERIOR: Tailgate, gate function manual, no lift assist (Deleted with (ZW9) pickup bed delete or (QK2) GMC MultiPro Tailgate.)
EXTERIOR: Tailgate and bed rail protection caps, top
EXTERIOR: Tailgate, locking utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete or (QK2) GMC MultiPro Tailgate.)
EXTERIOR: Door handles, Black grained
ENTERTAINMENT: Audio system, GMC Infotainment System with 7" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
ENTERTAINMENT: Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
ENTERTAINMENT: Bluetooth for phone connectivity to vehicle infotainment system
INTERIOR: Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
INTERIOR: Seat adjuster, driver 4-way manual
INTERIOR: Seat adjuster, passenger 4-way manual
INTERIOR: Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)
INTERIOR: Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
INTERIOR: Steering column, Tilt-Wheel, manual with wheel locking security feature
INTERIOR: Steering wheel, urethane
INTERIOR: Instrument cluster, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure
INTERIOR: Driver Information Center, 3.5" diagonal monochromatic display
INTERIOR: Exterior Temperature Display, located in radio display
INTERIOR: Brake lining wear indicator
INTERIOR: Windows, power front, drivers express up/down
INTERIOR: Window, power front, passenger express down
INTERIOR: Windows, power rear, express down (Not available on Regular Cab models.)
INTERIOR: Door locks, power
INTERIOR: Remote Keyless Entry
INTERIOR: USB Ports, 2, Charge/Data ports located on instrument panel
INTERIOR: Power outlet, front auxiliary, 12-volt
INTERIOR: Air conditioning, single-zone manual
INTERIOR: Air vents, rear (Not available with Regular Cab model.)
INTERIOR: Mirror, inside rearview, manual tilt
INTERIOR: Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
SAFETY: Automatic Emergency Braking (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Front Pedestrian Braking (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
SAFETY: Daytime Running Lamps, LED signature lighting
SAFETY: Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: HD Rear Vision Camera (Not available with (ZW9) pickup bed delete.)
SAFETY: Following Distance Indicator (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Forward Collision Alert (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Lane Keep Assist with Lane Departure Warning (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Seat Belt Adjustable Guide Loops, front row only (Included and only available with Crew Cab or Double Cab models.)
SAFETY: Buckle to Drive (Included and only available with (PDI) GMC Pro Safety.)
SAFETY: Tire Pressure Monitor System, auto learn includes Tire Fill Alert (does not apply to spare tire)
SAFETY: Rear Seat Reminder (Requires Crew Cab or Double Cab model.)

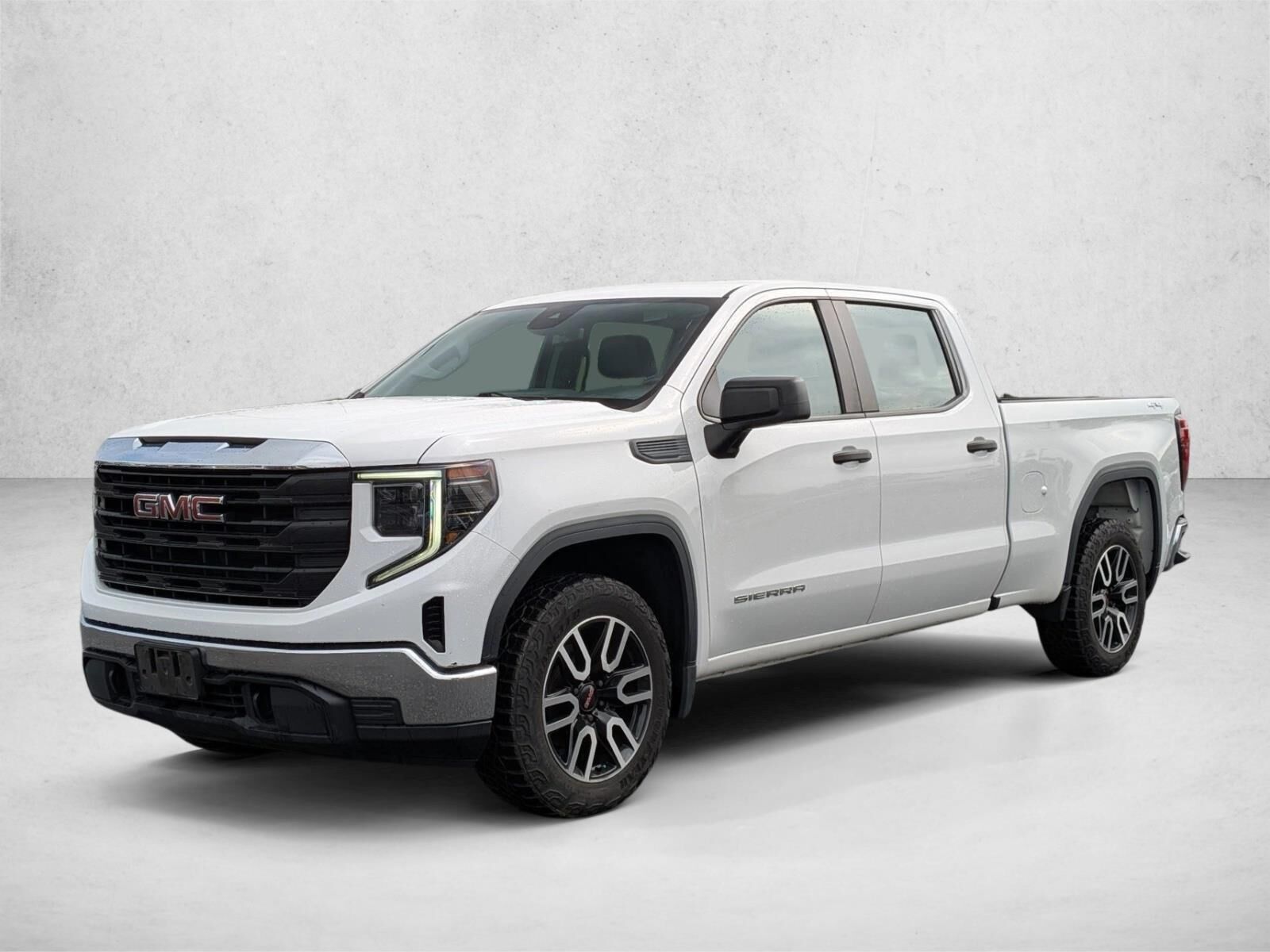

GMC Sierra 1500
Body Style: Crew Cab Pickup
Body Code: E63
Drivetrain: Four Wheel Drive
Trans Order Code: MQE
Trans Type: 8
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.56
Second Gear Ratio (:1): 2.97
Third Gear Ratio (:1): 2.08
Fourth Gear Ratio (:1): 1.69
Fifth Gear Ratio (:1): 1.27
Sixth Gear Ratio (:1): 1.00
Seventh Gear Ratio (:1): 0.85
Eighth Gear Ratio (:1): 0.65
Reverse Ratio (:1): 3.82
Transfer Case Model: Magna
Transfer Case Gear Ratio (:1), High: 1.00
Passenger Capacity: 6
Front Head Room (in): 43.03
Front Leg Room (in): 44.53
Front Shoulder Room (in): 66.02
Front Hip Room (in): 61.18
Second Head Room (in): 40.12
Second Leg Room (in): 43.4
Second Shoulder Room (in): 65.16
Second Hip Room (in): 60.24
Gross Axle Wt Rating - Front (lbs): 3800
Gross Axle Wt Rating - Rear (lbs): 3800
Curb Weight - Front (lbs): 2928
Curb Weight - Rear (lbs): 1957
Gross Vehicle Weight Rating Cap (lbs): 7000
Gross Combined Wt Rating (lbs): 14500
Fuel Economy Est-Combined (MPG): 18
EPA Fuel Economy Est - City (MPG): 17
EPA Fuel Economy Est - Hwy (MPG): 20
Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 8800
Wt Distributing Hitch - Max Tongue Wt. (lbs): 880
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8300
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2075
Maximum Trailering Capacity (lbs): 9400
Engine Type: Turbocharged Gas I4
Fuel System: Direct Injection
Engine Order Code: L3B
Displacement: 2.7L/166
SAE Net Horsepower @ RPM: 310 @ 5600
SAE Net Torque @ RPM: 430 @ 3000
Cold Cranking Amps @ 0° F (Primary): 730
Maximum Alternator Capacity (amps): 220
Total Cooling System Capacity (qts): - TBD -
Frame Type: Hydroformed
Suspension Type - Front: Independent
Suspension Type - Rear: Solid Axle
Spring Capacity - Front (lbs): 3800
Spring Capacity - Rear (lbs): 3850
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): 3800
Axle Capacity - Rear (lbs): 3800
Axle Ratio (:1) - Front: 3.42
Axle Ratio (:1) - Rear: 3.42
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): 1.30
Front Tire Order Code: QBN
Rear Tire Order Code: QBN
Spare Tire Order Code: QBR
Front Tire Size: 255/70R17
Rear Tire Size: 255/70R17
Spare Tire Size: 255/70R17
Front Tire Capacity (lbs): 3800
Rear Tire Capacity (lbs): 3800
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: N/A
Revolutions/Mile @ 45 mph - Rear: N/A
Revolutions/Mile @ 45 mph - Spare: N/A
Front Wheel Size (in): 17 x 8
Rear Wheel Size (in): 17 x 8
Spare Wheel Size (in): 17 x 8
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb (ft): 49.5
Turning Diameter - Wall to Wall (ft): N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
Fuel Tank Capacity, Approx (gal): 24
Fuel Tank Location: - TBD -
Wheelbase (in): 156.98
Length, Overall (in): 241.45
Width, Max w/o mirrors (in): 81.24
Height, Overall (in): 75.4
Overhang, Front (in): - TBD -
Overhang, Rear w/o bumper (in): - TBD -
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): - TBD -
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 7.97
Ground Clearance, Rear (in): 7.97
Cargo Box Length @ Floor (in): 79.44
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 71.4
Cargo Box Width @ Wheelhousings (in): 50.63
Cargo Box (Area) Height (in): 22.4
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 71.7
Ext'd Cab Cargo Volume (ft³): - TBD -
