SiriusXM delete
Single-slot CD/MP3 player
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Bumper front Black
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Door handles Black
Grille base molded in color Black
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted (STD)
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Glass deep-tinted
Fog lamps front halogen
Paint solid
Assist Steps aluminum
Tires rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15000 lb.
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Tires front 225/70R19.5G traction blackwall Goodyear Max Axle Load: 7940 lb.
Auxiliary harness 3' for headlamps and turn signals
Wheel 19.5" x 6.75" spare steel Black 8-holes temporary mounted on frame hub piloted
Sterling Gray Metallic
Paint Scheme Style 1
Tire Spare 225/70R19.5G traction blackwall Goodyear Includes (V33) Rim Wrench and handle only tool kit.)
Steering column manual Tilt-Wheel
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
Mirror inside rearview manual day/night
Seat Belt Black
Visors driver and front passenger vinyl
Seat trim Vinyl
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane
Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Seat adjuster driver 10-way power
Windows power with driver express up and down and express down on all other windows
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Power outlet 110-volt AC
Seats front 40/20/40 split-bench cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
Remote Keyless Entry
Exhaust brake
Trailer brake controller integrated
Wheelbase 165" (419.1 cm) 84" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame. Requires (PCJ) Vocational Specific Heavy Suspension Package when ordering (FTA) 7000 lb. Front axle/(FK6) 7000 lb. Front suspension or (FTL) 8000 lb. Front axle/(FSN) 8000 lb. Front suspension and/or (FU7) 15500 lb. rear suspension.) (STD)
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" or (ER2) 189". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Emissions 50 state certification
Exhaust system right side exit behind rear wheels (Requires (ED9) 165" wheelbase.)
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving (Requires (FTW) 6250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
Steering power (Bosch S2 8014 Plus)
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Emissions USA 50 State certified
Front suspension 6250 lb. (2835 kg) multi-leaf includes shock absorbers (Not available with LiquidSpring prep or rear air suspensions.) (STD)
Rear wheel drive
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.10 ratio Max road speed: 79 MPH
Shock Absorbers rear (Included with (FTC) 6250 lb. front axle.)
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Alternator 220 amps
Recovery hooks front frame-mounted black
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Front suspension 6250 lb. (2835 kg) multi-leaf includes shock absorbers (STD)
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
30000 lb. GCWR (13607 kg)
Tool kit Rim Wrench and handle only
Wheelbase 165" (419.1 cm) 84" CA (STD)
Rear axle 15000 lb. (6804 kg) Dana Spicer S16-130 single reduction

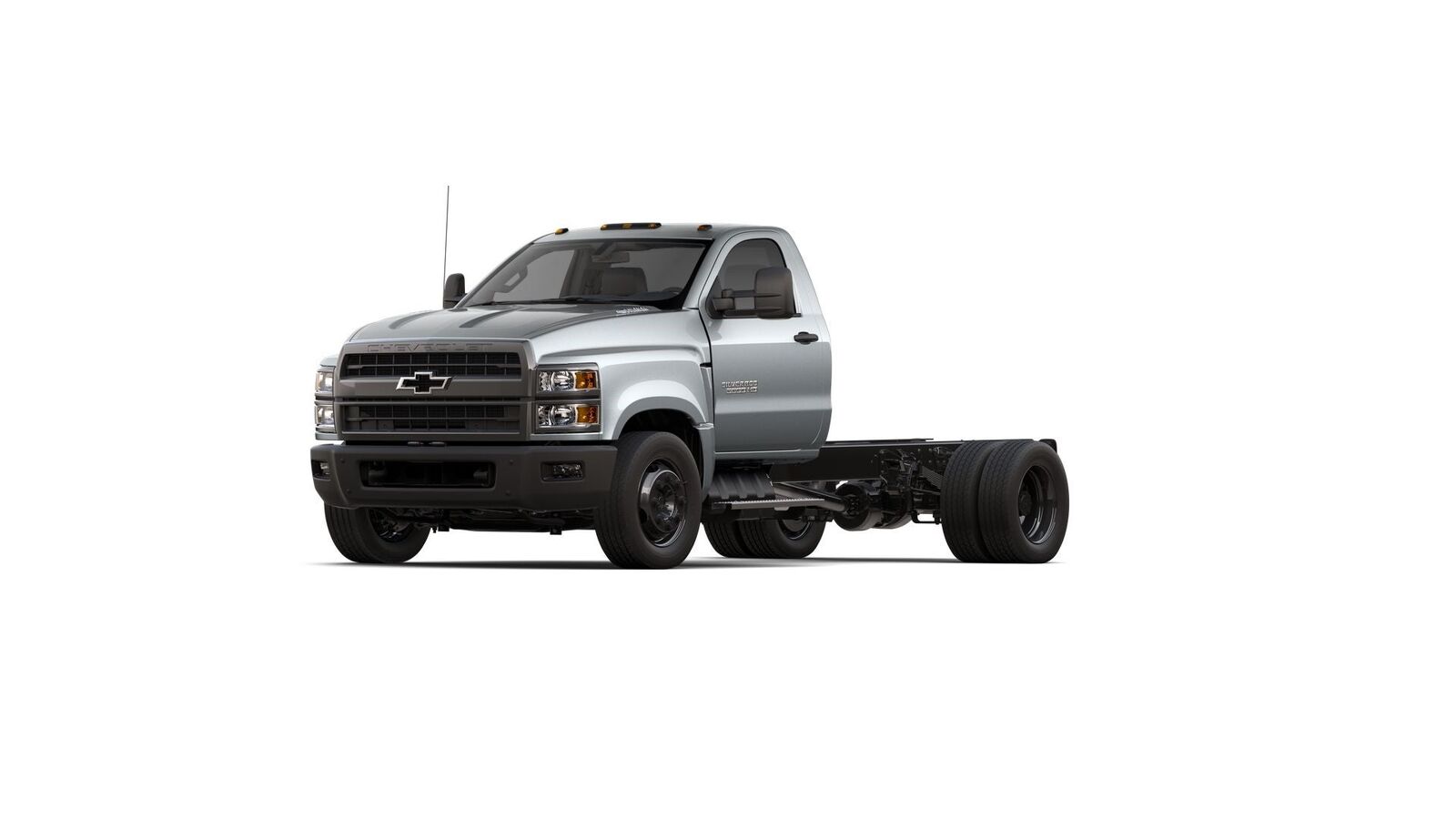

5500 HD Series
Rear suspension 13500 lb. (6123 kg) multi-leaf vari-rate
GVWR 19500 lb. (8845 kg)
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving Includes (G68) rear shock absorbers.
Work Truck Preferred Equipment Group includes standard equipment
Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Horn dual-note
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
Snow Plow Prep Package
PAINT SCHEME
STYLE 1
WINDOWS
POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
SEAT ADJUSTER
DRIVER 10-WAY POWER
GLASS
DEEP-TINTED
ASSIST STEPS
ALUMINUM
SHOCK ABSORBERS
REAR
AXLE
LIMITED SLIP
DANA SPICER TRUETRAC
TORQUE PROPORTIONING LIMITED SLIP
REAR SUSPENSION
13
500 LB. (6
123 KG) MULTI-LEAF
VARI-RATE
GVWR
19
500 LB. (8845 KG)
DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS
VINYL SEAT TRIM
REAR AXLE
15
000 LB. (6
804 KG)
POWER OUTLET
110-VOLT AC
ALTERNATOR
220 AMPS
STEERING WHEEL
LEATHER-WRAPPED WITH AUDIO AND CRUISE CONTROLS
30
000 LB. GCWR (13
607 KG)
FOG LAMPS
FRONT
HALOGEN
HORN
DUAL-NOTE
DRIVER INFORMATION CENTER
4.2-INCH DIAGONAL COLOR DISPLAY
INCLUDES DRIVER PERSONALIZATION
WARNING MESSAGES AND VEHICLE INFORMATION
STEERING WHEEL AUDIO CONTROLS
AUXILIARY HARNESS
3' FOR HEADLAMPS AND TURN SIGNALS
TOOL KIT
RIM WRENCH AND HANDLE ONLY
RECOVERY HOOKS
FRAME-MOUNTED
BLACK
PAINT
SOLID
