Lane Keeping Assist
Lpo
All-Weather Floor Liners
Front And Rear Jet Black. (Not Available With (Vav) All-Weather Floor Mats
Lpo. Replaces Standard Floor Mats. Included With (Pdh) Interior Protection Package
Lpo.)
License Plate Front Mounting Package (Will Be Forced On Orders With Ship-To States That Require A Front License Plate)
Rear Spoiler
Audio System
Chevrolet Infotainment 3 System 8" Diagonal Color Touchscreen
AM/FM Stereo
Bluetooth Audio Streaming For 2 Active Devices
Voice Command Pass-Through To Phone
Wireless Apple Carplay And Wireless Android Auto Compatibility (Std)
Jet Black/Gray With Red Accents
Cloth Seat Trim
Seats
Front Bucket (Std)
Marina Blue Metallic (Extra Cost.)
Wheels
18" (45.7 Cm) Black-Painted Machined Aluminum (Std)
1Rs Preferred Equipment Group Includes Standard Equipment
Axle
3.50 Final Drive Ratio
Transmission
6-Speed Automatic (Std)
Engine
Ecotec 1.2L Turbo Dohc Di With Variable Valve Timing (Vvt) E85-Compatible (137 Hp [102 Kw] @ 5000 Rpm
162 Lb-Ft Torque [219 N-M] @ 2500 Rpm) (Std)
Emissions
Federal Requirements
HandsFree/Bluetooth
Satellite Radio
Smart Device Integration
WiFi Hotspot
Turbocharged
Heated Seats
New Arrival
(Extra cost.): GKN
(will be forced on orders with ship-to states that require a front license plate): VK3
Jet Black. (Not available with (VAV) all-weather floor mats, LPO. Replaces standard floor mats. Included with (PDH) Interior Protection Package, LPO.): RIA
PACKAGE: LS Convenience Package
PACKAGE: Chevy Safety Assist includes (UHY) Automatic Emergency Braking, (UKJ) Front Pedestrian Braking, (UHX) Lane Keep Assist with Lane Departure Warning, (UE4) Following Distance Indicator, (UEU) Forward Collision Alert and (TQ5) IntelliBeam
MECHANICAL: Transmission, 6-speed automatic
MECHANICAL: Axle, 3.50 final drive ratio
MECHANICAL: Engine air filtration monitor
MECHANICAL: Engine control, stop-start system
MECHANICAL: Drivetrain, front-wheel drive
MECHANICAL: Coolant protection, engine
MECHANICAL: Battery, 70AH, 12V, 760 cold-cranking amps
MECHANICAL: Alternator, 130 amps
MECHANICAL: GVWR, 4145 lbs. (1880 kg)
MECHANICAL: Suspension, Ride and Handling
MECHANICAL: Suspension, front MacPherson strut
MECHANICAL: Suspension, rear, compound crank
MECHANICAL: Steering, power, non-variable ratio, electric
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc
MECHANICAL: Braking control, ECM grade
MECHANICAL: Brake, parking, electronic
MECHANICAL: Brake lining, performance
MECHANICAL: Brake rotor, FNC
MECHANICAL: Capless fuel fill
MECHANICAL: Exhaust tip, turned down, hidden
MECHANICAL: Mechanical jack with tools
EXTERIOR: Wheels, 18" (45.7 cm) Black-painted machined aluminum
EXTERIOR: Tires, 225/55R18 all-season, blackwall
EXTERIOR: Wheel, spare, 16" (40.6 cm) steel
EXTERIOR: Tire, spare, compact
EXTERIOR: Fascia, front and rear, inserts (Black-painted inserts.)
EXTERIOR: Spoiler, rear
EXTERIOR: Moldings, Black, side windows surround
EXTERIOR: Moldings, body-side, lower, extra wide, molded in Black
EXTERIOR: Exterior trim, RS, Black front and rear bowties, Black grille insert, Black nameplate
EXTERIOR: Headlamps, LED
EXTERIOR: Headlamp control, automatic on and off
EXTERIOR: IntelliBeam, auto high beam (Included with (PED) Chevy Safety Assist.)
EXTERIOR: Lamp, center high-mounted stop/brake (CHMSL)
EXTERIOR: Mirrors, outside heated power-adjustable, manual-folding
EXTERIOR: Mirror caps, high gloss Black
EXTERIOR: Glass, tinted windshield
EXTERIOR: Glass, deep-tinted
EXTERIOR: Wipers, front intermittent, variable speed
EXTERIOR: Wiper, rear, intermittent
EXTERIOR: Ornamentation, Trax lettering
EXTERIOR: Ornamentation, RS badge
EXTERIOR: Liftgate, manual
EXTERIOR: Door handles, body-color
EXTERIOR: Recovery hook, front
ENTERTAINMENT: Audio system, Chevrolet Infotainment 3 system 8" diagonal color touchscreen, AM/FM stereo, Bluetooth audio streaming for 2 active devices, voice command pass-through to phone, Wireless Apple CarPlay and Wireless Android Auto compatibility
ENTERTAINMENT: Audio system feature, 4-speaker system
ENTERTAINMENT: SiriusXM Trial Subscription (IMPORTANT: The SiriusXM trial subscription is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. Trial subscription is subject to the SiriusXM Customer Agreement and privacy policy, visit www.siriusxm.com which includes full terms and how to cancel. All fees, content, features, and availability are subject to change.)
ENTERTAINMENT: Antenna, roof-mounted
ENTERTAINMENT: Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
ENTERTAINMENT: Wireless Apple CarPlay/Wireless Android Auto
ENTERTAINMENT: Active Noise Cancellation
INTERIOR: Seats, front bucket
INTERIOR: Seat trim, Cloth
INTERIOR: Seats, heated driver and front passenger
INTERIOR: Seat adjuster, driver 6-way manual
INTERIOR: Seat adjuster, front passenger 4-way manual
INTERIOR: Seat, rear 60/40 split-folding
INTERIOR: Head restraints, front, 2-way adjustable
INTERIOR: Head restraints, rear, height adjustable
INTERIOR: Console, floor, with armrest
INTERIOR: Floor mats, carpeted front (Deleted when LPO floor mats or floor liners are ordered.)
INTERIOR: Floor mats, carpeted rear (Deleted when LPO floor mats or floor liners are ordered.)
INTERIOR: Steering wheel, wrapped, flat-bottom
INTERIOR: Steering wheel, heated
INTERIOR: Steering column, tilt and telescoping
INTERIOR: Steering wheel controls, mounted audio, cruise control Driver Information Center, Forward Collision Alert gap adjust and phone interface controls
INTERIOR: Driver Information Center, 3.5" diagonal monochromatic display
INTERIOR: Vehicle health management
INTERIOR: Window, power, driver with express down
INTERIOR: Window, power, front passenger with express down
INTERIOR: Windows, power rear, express down
INTERIOR: Door locks, power
INTERIOR: Keys, 2, foldable
INTERIOR: Remote Start
INTERIOR: Cruise control, electronic with set and resume speed
INTERIOR: Theft-deterrent system
INTERIOR: Theft-deterrent system, immobilizer
INTERIOR: Remote panic alarm
INTERIOR: USB ports, 2, one type-A and one type-C, located within the instrument panel
INTERIOR: Power outlet, 12-volt, located on instrument panel
INTERIOR: Air conditioning, single-zone manual
INTERIOR: Defogger, rear-window electric
INTERIOR: Air filter, pollutant
INTERIOR: Mirror, inside rearview manual day/night
INTERIOR: Visors, driver and front passenger vanity mirrors, covered
INTERIOR: Assist handle, front passenger
INTERIOR: Assist handles, rear outboard
INTERIOR: Shift knob, urethane
INTERIOR: Lighting, interior, overhead courtesy lamp
INTERIOR: Lighting, interior, roof, rear courtesy
INTERIOR: Lighting, rear cargo compartment lamp
SAFETY: Automatic Emergency Braking (Included with (PED) Chevy Safety Assist.)
SAFETY: Front Pedestrian Braking (Included with (PED) Chevy Safety Assist.)
SAFETY: StabiliTrak, stability control system
SAFETY: Daytime Running Lamps, reduced intensity low beam, LED
SAFETY: Airbags, frontal and seat-mounted side-impact for driver and front passenger; roof rail-mounted head-curtain for all outboard seating positions, and Passenger Sensing System for front passenger (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: Knee bolster, driver and front passenger
SAFETY: OnStar Services capable (See onstar.com for details and limitations. Services vary by model. Service plan required.)
SAFETY: Rear Vision Camera (Rear Vision Camera display is not HD with IOR audio system.)
SAFETY: Forward Collision Alert (Included with (PED) Chevy Safety Assist.)
SAFETY: Following Distance Indicator (Included with (PED) Chevy Safety Assist.)
SAFETY: Lane Keep Assist with Lane Departure Warning (Included with (PED) Chevy Safety Assist.)
SAFETY: Seat belts, 3-point, all seating positions with front tensioners
SAFETY: LATCH system (Lower Anchors and Tethers for CHildren), for child restraint seats
SAFETY: Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened, programmable
SAFETY: Rear Seat Reminder
SAFETY: Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
SAFETY: Tire Pressure Monitor, manual learn
SAFETY: Tire Fill Alert
SAFETY: OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. (Requires (UE1) OnStar. OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)

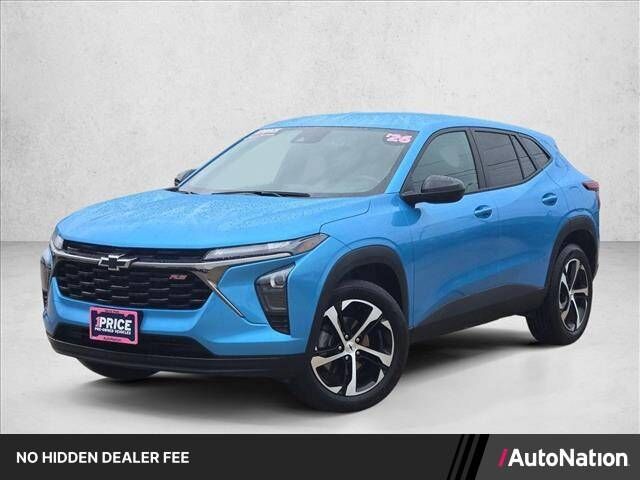

Chevrolet Trax
Body Style: Sport Utility Vehicle
Drivetrain: Front Wheel Drive
Trans Order Code: MNH
Trans Type: 6
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.58
Second Gear Ratio (:1): 2.96
Third Gear Ratio (:1): 1.91
Fourth Gear Ratio (:1): 1.44
Fifth Gear Ratio (:1): 1.00
Sixth Gear Ratio (:1): 0.74
Reverse Ratio (:1): 2.94
Final Drive Axle Ratio (:1): 3.53
EPA Classification: Small Sport Utility Vehicle
Passenger Capacity: 5
Passenger Volume (ft³): 99.8
Front Head Room (in): 39.6
Second Head Room (in): 38.1
Front Leg Room (in): 41.9
Second Leg Room (in): 38.7
Front Shoulder Room (in): 55.7
Second Shoulder Room (in): 54.3
Front Hip Room (in): 52.1
Second Hip Room (in): 45.3
Base Curb Weight (lbs): 3014
EPA Greenhouse Gas Score: 6
Tons/yr of CO2 Emissions @ 15K mi/year: 5.9
Fuel Economy Est-Combined (MPG): 30
EPA Fuel Economy Est - City (MPG): 28
EPA Fuel Economy Est - Hwy (MPG): 32
Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
Engine Order Code: LBP
Engine Type: Turbocharged Gas 3-Cyl
Displacement: 1.2L/- TBD -
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 137 @ 5000
SAE Net Torque @ RPM: 162 @ 2500
Cold Cranking Amps @ 0° F (Primary): 760
Maximum Alternator Capacity (amps): 130
Total Cooling System Capacity (qts): - TBD -
Suspension Type - Front: MacPherson Strut
Suspension Type - Rear: Compound Crank
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Stabilizer Bar Diameter - Rear (in): - TBD -
Front Tire Order Code: QAI
Rear Tire Order Code: QAI
Spare Tire Order Code: ZDC
Front Tire Size: 225/55R18
Rear Tire Size: 225/55R18
Spare Tire Size: Compact
Front Wheel Size (in): 18 x - TBD -
Rear Wheel Size (in): 18 x - TBD -
Spare Wheel Size (in): 16 x - TBD -
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), Overall: - TBD -
Lock to Lock Turns (Steering): - TBD -
Turning Diameter - Curb to Curb (ft): - TBD -
Turning Diameter - Wall to Wall (ft): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): - TBD -
Rear Brake Rotor Diam x Thickness (in): - TBD -
Fuel Tank Capacity, Approx (gal): 13.2
Wheelbase (in): 106.3
Length, Overall (in): 178.6
Width, Max w/o mirrors (in): 71.7
Height, Overall (in): 61.4
Track Width, Front (in): 61.4
Track Width, Rear (in): 62.3
Min Ground Clearance (in): 7.3
Rear Door Opening Height (in): - TBD -
Rear Door Opening Width (in): - TBD -
Liftover Height (in): - TBD -
Cargo Area Length @ Floor to Seat 1 (in): - TBD -
Cargo Area Length @ Floor to Seat 2 (in): - TBD -
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): - TBD -
Cargo Box (Area) Height (in): - TBD -
Cargo Volume to Seat 1 (ft³): 54.1
Cargo Volume to Seat 2 (ft³): 25.6
