License Plate Front Mounting Package (Will Be Forced On Orders With Ship-To States That Require A Front License Plate)
Skid Plate Package
Frame-Mounted Shields Includes Front Underbody Shield Starting Behind Front Bumper And Running To First Cross-Member
Protecting Front Underbody
Oil Pan
Differential Case And Transfer Case (Not Available With 2Wd Models Unless (Z71) Off-Road Suspension Package Is Ordered. Included With (Z71) Off-Road Suspension Package Or (Vyu) Snow Plow Prep Package.)
Audio System
AM/FM Stereo With MP3 Compatible CD Player Seek-And-Scan
Digital Clock
Auto-Tone Control
Radio Data System (Rds)
Speed-Compensated Volume And Theftlock (Std) (Not Available With (U42) Rear Seat Dvd Player Entertainment System.)
Ebony
Premium Cloth Seat Trim
Seats
Front 40/20/40 Split-Bench
3-Passenger
Driver And Front Passenger Manual Reclining Center Fold-Down Armrest With Storage
Lockable Storage Compartment In Seat Cushion (Includes Auxiliary Power Outlet)
Adjustable Outboard Head Restraints And Storage Pockets On Extended And Crew Cab Models (Std)
Summit White
Paint
Solid
Tires
Lt265/70R18E All-Terrain
Blackwall (Not Available With (9F6) 12
800 Lbs. Gvwr Or (Chx) 13
025 Lbs. Gvwr (Dual Rear Wheel).)
Gvwr
10
800 Lbs. (4899 Kg) With Single Rear Wheels (Requires Ck30743 With (L96) Vortec 6.0L V8 Sfi Engine.)
Lt Preferred Equipment Group Includes Standard Equipment
Rear Axle
3.73 Ratio (Not Available With (L96) Vortec 6.0L V8 Sfi Engine On Cc30903 With Single Rear Wheels.)
Transmission
6-Speed Automatic
Heavy-Duty
Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std) (Requires (L96) Vortec 6.0L V8 Sfi Engine.)
Engine
Vortec 6.0L Variable Valve Timing V8 Sfi E85-Compatible
Flexfuel Capable Of Running On Unleaded Or Up To 85% Ethanol (322 Hp [240.1 Kw] @ 4400 Rpm
380 Lb-Ft Of Torque [513.0 N-M] @ 4200 Rpm) (Std) (Does Not Include E85 Capability With (Zw9) Pickup Box Delete.)
Emissions
Federal Requirements
Suspension Package
Off-Road Includes (35Mm) Shocks
Off-Road Jounce Bumpers
(33Mm) Front Stabilizer Bar
(Nzz) Skid Plate Package And Z71 Decals On Rear Quarters (Requires (Z82) Trailering Equipment And (Qgm) Lt265/70R18E All-Terrain Tires. Not Available With (Zw9) Pickup Box Delete
(9F6) 12
Keyless Entry
Satellite Radio
Tow-Package
Smart Device Integration
New Arrival
includes (35mm) shocks, off-road jounce bumpers, (33mm) front stabilizer bar, (NZZ) skid plate package and Z71 decals on rear quarters (Requires (Z82) trailering equipment and (QGM) LT265/70R18E all-terrain tires. Not available with (ZW9) Pickup box delete, (9F6) 12,800 lbs. GVWR or (CHX) 13,025 lbs. GVWR (dual rear wheel).): Z71
(Not available with (9F6) 12,800 lbs. GVWR or (CHX) 13,025 lbs. GVWR (dual rear wheel).): QGM
includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case (Not available with 2WD models unless (Z71) Off-Road Suspension Package is ordered. Included with (Z71) Off-Road Suspension Package or (VYU) Snow Plow Prep Package.): NZZ
MECHANICAL: Engine, Vortec 6.0L Variable Valve Timing V8 SFI E85-compatible, FlexFuel capable of running on unleaded or up to 85% ethanol (322 hp [240.1 kW] @ 4400 rpm, 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) (Does not include E85 capability with (ZW9) pickup box delete.)
MECHANICAL: Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (Requires (L96) Vortec 6.0L V8 SFI engine.)
MECHANICAL: Rear axle, 3.73 ratio (Not available with (L96) Vortec 6.0L V8 SFI engine on CC30903 with Single Rear Wheels.)
MECHANICAL: Suspension Package, Handling/Trailering, heavy-duty includes 35mm monotube shocks and 34mm front stabilizer bar
MECHANICAL: Pickup box, Fleetside
MECHANICAL: GVWR, 10,800 lbs. (4899 kg) with single rear wheels (Requires CK30743 with (L96) Vortec 6.0L V8 SFI engine.)
MECHANICAL: Air cleaner, high-capacity
MECHANICAL: Transfer case, electronic shift with rotary dial controls (Requires 4WD models)
MECHANICAL: Differential, heavy-duty automatic locking rear
MECHANICAL: Four wheel drive
MECHANICAL: Trailering equipment, heavy-duty includes trailering hitch platform and 2.5- inch receiver with 2" adapter, 7-wire harness (harness includes wires for: park lamps, backup lamps, right turn, left turn, electric brake lead, battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector, wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller (Will be deleted if (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
MECHANICAL: Cooling, external engine oil cooler, heavy-duty air-to-oil integral to driver side of radiator tank
MECHANICAL: Cooling, auxiliary external transmission oil cooler, heavy-duty air-to-oil
MECHANICAL: Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
MECHANICAL: Alternator, 125 amps
MECHANICAL: Frame, fully boxed, hydroformed front section
MECHANICAL: Trailer brake controller, integrated (With (E63) fleetside pickup box, included and only available with (Z82) heavy-duty trailering equipment. Available as a free flow option with (ZW9) pickup box delete.)
MECHANICAL: Suspension, front independent, torsion bar
MECHANICAL: Suspension, rear 4+1+2 multi-leaf springs for single rear wheel and 3+1+2 multi-leaf springs for dual rear wheel
MECHANICAL: Steering, power, recirculating ball
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with single rear wheels
MECHANICAL: Exhaust, aluminized stainless-steel muffler and tailpipe
EXTERIOR: Wheels, 18" (45.7 cm) forged polished aluminum includes painted center caps and a steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Not available with (9F6) 12,800 lbs. GVWR or (CHX) 13,025 lbs. GVWR (dual rear wheel). Included with (WEA) Z71 Appearance Package.)
EXTERIOR: Recovery hooks, front, frame-mounted
EXTERIOR: Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
EXTERIOR: Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
EXTERIOR: Bumper, front chrome
EXTERIOR: Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
EXTERIOR: Moldings, bodyside, body-colored (Not available with Regular Cab models. Moldings are deleted if any SEO paint is ordered.)
EXTERIOR: Grille, chrome surround
EXTERIOR: Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
EXTERIOR: Lamps, dual cargo area lamps
EXTERIOR: Mirrors, outside heated power-adjustable vertical camper manual-folding and extension, Black includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
EXTERIOR: Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
EXTERIOR: Wipers, front intermittent wet-arm with pulse washers
EXTERIOR: Door handles, Black
ENTERTAINMENT: Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock (Not available with (U42) rear seat DVD player entertainment system.)
ENTERTAINMENT: SiriusXM Satellite Radio is standard on nearly all 2013 GM models. Enjoy a 3-month trial to the XM Premier package, with over 140 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no cost. Welcome to the world of satellite radio. (Not available with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UE0) OnStar, delete. If you subscribe after your trial period, subscriptions are continuous until you call SiriusXM to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
ENTERTAINMENT: Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
INTERIOR: Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Extended and Crew Cab models
INTERIOR: Seat trim, Premium Cloth
INTERIOR: Seat adjuster, manual lumbar control on the driver-side
INTERIOR: Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)
INTERIOR: Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats) (May be substituted with (BG9) Black rubberized vinyl floor covering.)
INTERIOR: Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock
INTERIOR: Steering wheel, leather-wrapped with theft-deterrent locking feature
INTERIOR: Instrumentation, analog with speedometer, fuel level, engine temperature, tachometer, voltmeter and oil pressure indicators
INTERIOR: Driver Information Center with odometer, trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification) (Driver Information Center controls are operated through the trip button unless (UK3) steering wheel mounted audio controls is ordered. On 1LT and 1LZ, includes 8-point compass and outside temperature.)
INTERIOR: Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
INTERIOR: Windows, power with driver Express-Down
INTERIOR: Door locks, power includes Remote Keyless Entry
INTERIOR: Remote vehicle starter prep package includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. Remote Keyless Entry does not lock/unlock tailgate.)
INTERIOR: Cruise control, electronic with set and resume speed, located on steering wheel
INTERIOR: Air conditioning, single-zone manual front climate control
INTERIOR: Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
INTERIOR: Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
INTERIOR: Mirror, inside rearview auto-dimming
INTERIOR: Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
INTERIOR: Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
INTERIOR: Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
INTERIOR: Coat hooks, rear driver and passenger side
SAFETY: StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist (Standard on single rear wheel GVWR only.)
SAFETY: Daytime Running Lamps with automatic exterior lamp control
SAFETY: Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
SAFETY: OnStar, 6 months of Directions and Connections plan includes, Automatic Crash Response, Emergency Services, Crisis Assist, First Assist, Injury Severity Predictor, Stolen Vehicle Assistance, Stolen Vehicle Slowdown, Remote Ignition Block, Remote Door Unlock (requires power locks), Roadside Assistance, Remote Horn and Lights, Turn-by-Turn Navigation with OnStar eNav, Destination Download (requires navigation radio), OnStar Vehicle Diagnostics, Hands Free Calling and available OnStar RemoteLink mobile app. (Also includes Stolen Vehicle Slowdown when (LML) Duramax 6.6L Turbo Diesel V8 engine is not ordered. Not available with a ship-to of Puerto Rico or the Virgin Islands. Visit onstar.com for details and system limitations.)
SAFETY: Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
SAFETY: Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
SAFETY: OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
SAFETY: Door locks, rear child security (Crew Cab models only.)

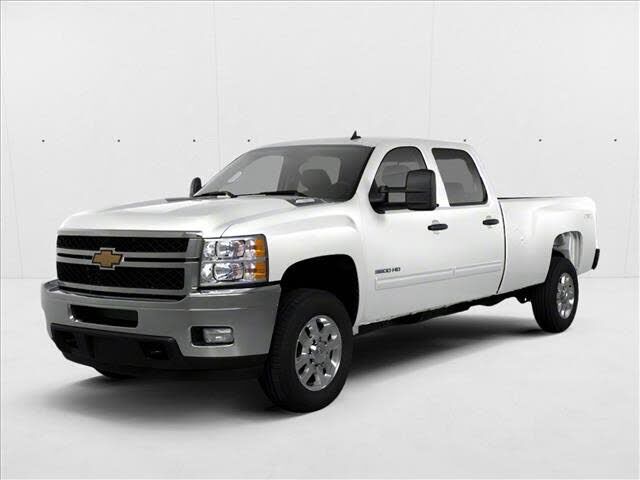

Chevrolet Silverado 3500HD
Body Style: Crew Cab Pickup
Body Code: E63
Drivetrain: 4-Wheel Drive
Trans Order Code: MYD
Trans Type: 6
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.03
Second Gear Ratio (:1): 2.36
Third Gear Ratio (:1): 1.53
Fourth Gear Ratio (:1): 1.15
Fifth Gear Ratio (:1): 0.85
Sixth Gear Ratio (:1): 0.67
Reverse Ratio (:1): 3.06
Transfer Case Model: Magna MP1625/6
Transfer Case Gear Ratio (:1), High: 1.00
Transfer Case Gear Ratio (:1), Low: 2.69
Passenger Capacity: 6
Front Head Room (in): 41.30
Front Leg Room (in): 41.30
Front Shoulder Room (in): 65.20
Front Hip Room (in): 60.30
Second Head Room (in): 40.60
Second Leg Room (in): 39.00
Second Shoulder Room (in): 65.20
Second Hip Room (in): 65.50
Gross Axle Wt Rating - Front (lbs): 4800
Gross Axle Wt Rating - Rear (lbs): 7050
Curb Weight - Front (lbs): 3742
Curb Weight - Rear (lbs): 2870
Gross Vehicle Weight Rating Cap (lbs): 10800
Gross Combined Wt Rating (lbs): - TBD -
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1380
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9200
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2300
Maximum Trailering Capacity (lbs): 17000
Engine Order Code: L96
Engine Type: Gas/Ethanol V8
Displacement: 6.0L/366
Fuel System: Electronic Fuel Injection
SAE Net Horsepower @ RPM: 322 @ 4400
SAE Net Torque @ RPM: 380 @ 4200
Engine Oil Cooler: Yes
Cold Cranking Amps @ 0° F (Primary): 600
Maximum Alternator Capacity (amps): 125
Total Cooling System Capacity (qts): - TBD -
Frame Type: Hydroformed
Suspension Type - Front: Independent
Suspension Type - Rear: Multi-Leaf
Spring Capacity - Front (lbs): 4800
Spring Capacity - Rear (lbs): 7050
Axle Type - Front: Independent
Axle Type - Rear: Full-Floating
Axle Capacity - Front (lbs): 4800
Axle Capacity - Rear (lbs): 7050
Axle Ratio (:1) - Rear: 3.73
Shock Absorber Diameter - Front (mm): 46.00
Shock Absorber Diameter - Rear (mm): 46.00
Stabilizer Bar Diameter - Front (in): 1.30
Front Tire Order Code: QGM
Rear Tire Order Code: QGM
Front Tire Size: LT265/70R18E
Rear Tire Size: LT265/70R18E
Front Tire Capacity (lbs): 2860
Rear Tire Capacity (lbs): 3525
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 18 x 8.0
Rear Wheel Size (in): 18 x 8.0
Spare Wheel Size (in): 17 x 6.5
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Pwr Recirculating Ball
Steering Ratio (:1), On Center: 16.00
Steering Ratio (:1), At Lock: N/A
Turning Diameter - Curb to Curb (ft): 54.8
Turning Diameter - Wall to Wall (ft): N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): - TBD -
Rear Brake Rotor Diam x Thickness (in): - TBD -
Fuel Tank Capacity, Approx (gal): 36.0
Fuel Tank Location: - TBD -
Wheelbase (in): 153.70
Length, Overall w/o rear bumper (in): 240.20
Width, Max w/o mirrors (in): 80.00
Height, Overall (in): 77.40
Overhang, Front (in): 38.80
Overhang, Rear w/o bumper (in): 47.70
Front Bumper to Back of Cab (in): 150.90
Cab to Axle (in): 41.60
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): 37.90
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 10.00
Ground Clearance, Rear (in): 8.40
Cargo Box Length @ Floor (in): 78.80
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 62.50
Cargo Box Width @ Wheelhousings (in): 50.60
Cargo Box (Area) Height (in): 21.00
Tailgate Width (in): 61.60
Cargo Volume (ft³): 60.7
Ext'd Cab Cargo Volume (ft³): - TBD -
