Fleet Free Maintenance Credit. This Option Code Provides A Credit In Lieu Of The Free Oil Changes
Tire Rotations And Inspections For One Maintenance Service During 1St Year Of Ownership. The Invoice Will Detail The Applicable Credit. The Customer Will Be Responsible For All Oil Change
Tire Rotations And Inspections Costs For This Vehicle. (Requires One Of The Following Fleet Or Government Order Types: Fbc
Fbn
Fca
Fcn
Fef
Fls
Fnr Or Frc. Not Available With Fdr Order Type.) *Credit*
Audio System
Gmc Infotainment System With 7" Diagonal Color Touch-Screen
AM/FM Stereo With Seek-And-Scan And Digital Clock
Includes Bluetooth Streaming Audio For Music And Select Phones; Featuring Android Auto And Apple Carplay Capability For Compatible Phones (Std)
Jet Black
Vinyl Seat Trim
Seats
Front 40/20/40 Split-Bench. (Std)
Summit White
Tires
255/70R17 All-Season
Blackwall (Std)
Wheels
17" X 8" (43.2 Cm X 20.3 Cm) Painted Steel
Silver (Std)
Work Truck Preferred Equipment Group Includes Standard Equipment
Rear Axle
3.42 Ratio
Transmission
6-Speed Automatic
Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std) (Included And Only Available With (Lv3) 4.3L Ecotec3 V6 Engine Or (L82) 5.3L Ecotec3 V8 Engine.)
Engine
4.3L Ecotec3 V6 With Active Fuel Management (285 Hp [212 Kw] @ 5300 Rpm
305 Lb-Ft Of Torque [413 Nm] @ 3900 Rpm) (Std) (Requires (Myc) 6-Speed Automatic Transmission.) *Gross*
Emissions
Federal Requirements
HandsFree/Bluetooth
Smart Device Integration
New Arrival
MECHANICAL: Transmission, 6-speed automatic, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (Included and only available with (LV3) 4.3L EcoTec3 V6 engine or (L82) 5.3L EcoTec3 V8 engine.)
MECHANICAL: Rear axle, 3.42 ratio
MECHANICAL: Pickup bed (Deleted when (ZW9) pickup bed delete is ordered on Regular Cab models.)
MECHANICAL: GVWR, 6800 lbs. (3084 kg) (Requires 2WD model with (LV3) 4.3L EcoTec3 V6 engine, 2WD Crew Cab or Double Cab models with (L3B) 2.7L Turbo engine or Double Cab or Regular Cab 2WD model and (L82) 5.3L EcoTec3 V8 engine.) (Requires 2WD model with (LV3) 4.3L EcoTec3 V6 engine or (L3B) 2.7L Turbo engine or Double Cab or Regular Cab model 2WD model and (L82) 5.3L EcoTec3 V8 engine.)
MECHANICAL: Rear wheel drive
MECHANICAL: Cooling, external engine oil cooler (Not available with (L3B) 2.7L Turbo engine.)
MECHANICAL: Alternator, 170 amps
MECHANICAL: Battery, heavy-duty 730 cold-cranking amps/70 Amp-hr, maintenance-free with rundown protection and retained accessory power (Included and only available with (LV3) 4.3L EcoTec3 V6 engine.)
MECHANICAL: Frame, fully-boxed, hydroformed front section
MECHANICAL: Cargo tie downs (12), fixed, rated at 500 lbs per corner
MECHANICAL: Steering, Electric Power Steering (EPS) assist, rack-and-pinion
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
MECHANICAL: Capless Fuel Fill
MECHANICAL: Exhaust, single outlet
MECHANICAL: Exhaust, aluminized stainless-steel muffler and tailpipe
EXTERIOR: Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel, Silver
EXTERIOR: Tires, 255/70R17 all-season, blackwall
EXTERIOR: Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
EXTERIOR: Tire, spare 255/70R17 all-season, blackwall (Included with (QBN) 255/70R17 all-season, blackwall tires.)
EXTERIOR: Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
EXTERIOR: Bumper, front chrome lower (Requires (VJH) rear chrome bumper and (E63) pickup bed.) (Requires (VJH) rear chrome bumper and (E63) pickup bed. Required with (UD7) Rear Park Assist.)
EXTERIOR: Bumper, rear chrome with bumper CornerSteps (Requires (V46) front chrome bumper and (E63) pickup bed.)
EXTERIOR: CornerStep, rear bumper
EXTERIOR: Grille (Chrome surround with Black mesh.)
EXTERIOR: Headlamps, LED reflector with incandescent turn signals and LED signature Daytime Running Lamps
EXTERIOR: Taillamps, LED tail and stop light with incandescent reverse light
EXTERIOR: Mirrors, outside manual, Black
EXTERIOR: Glass, solar absorbing, tinted
EXTERIOR: Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel.
EXTERIOR: Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
EXTERIOR: Tailgate, gate function manual, no lift assist (Deleted with (ZW9) pickup bed delete.)
EXTERIOR: Tailgate and bed rail protection caps, top
EXTERIOR: Tailgate, locking utilizes same key as ignition and door
EXTERIOR: Door handles, Black grained
ENTERTAINMENT: Audio system, GMC Infotainment System with 7" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phones
ENTERTAINMENT: Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
ENTERTAINMENT: Bluetooth for phone connectivity to vehicle infotainment system
INTERIOR: Seats, front 40/20/40 split-bench.
INTERIOR: Seat adjuster, driver 4-way manual
INTERIOR: Seat adjuster, passenger 4-way manual
INTERIOR: Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)
INTERIOR: Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
INTERIOR: Steering column, Tilt-Wheel, manual with wheel locking security feature
INTERIOR: Steering wheel, urethane
INTERIOR: Instrument cluster, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure
INTERIOR: Driver Information Center, 3.5" diagonal monochromatic display
INTERIOR: Exterior Temperature Display, located in radio display
INTERIOR: Brake lining wear indicator
INTERIOR: Windows, power front, drivers express up/down (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
INTERIOR: Window, power front, passenger express down (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
INTERIOR: Windows, power rear, express down (Not available on Regular Cab models.)
INTERIOR: Door locks, power (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
INTERIOR: USB port, located on instrument panel
INTERIOR: Power outlet, front auxiliary, 12-volt
INTERIOR: Air conditioning, single-zone
INTERIOR: Air vents, rear (Not available with Regular Cab model.)
INTERIOR: Mirror, inside rearview, manual tilt
INTERIOR: Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
SAFETY: StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
SAFETY: Daytime Running Lamps LED signature lighting
SAFETY: Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: Rear Vision Camera (Deleted with (ZW9) pickup bed delete.)
SAFETY: Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
SAFETY: Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)
SAFETY: Rear Seat Reminder (Requires Crew Cab or Double Cab model.)

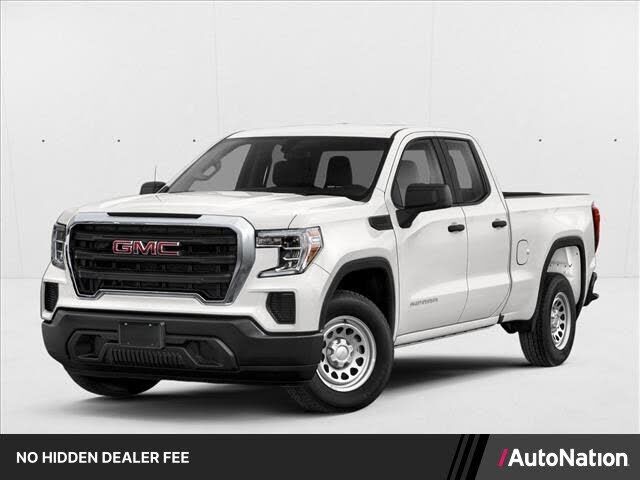

GMC Sierra 1500
Body Style: Double Cab Pickup
Body Code: E63
Drivetrain: Rear Wheel Drive
Trans Order Code: MYC
Trans Type: 6
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.03
Second Gear Ratio (:1): 2.36
Third Gear Ratio (:1): 1.53
Fourth Gear Ratio (:1): 1.15
Fifth Gear Ratio (:1): 0.85
Sixth Gear Ratio (:1): 0.66
Reverse Ratio (:1): 3.06
Passenger Capacity: 6
Front Head Room (in): 43.03
Front Leg Room (in): 44.53
Front Shoulder Room (in): 66.02
Front Hip Room (in): 61.18
Second Head Room (in): 39.88
Second Leg Room (in): 35.24
Second Shoulder Room (in): 64.88
Second Hip Room (in): 60.24
Gross Axle Wt Rating - Front (lbs): 3700
Gross Axle Wt Rating - Rear (lbs): 3800
Curb Weight - Front (lbs): 2744
Curb Weight - Rear (lbs): 1874
Gross Vehicle Weight Rating Cap (lbs): 6800
Gross Combined Wt Rating (lbs): 12800
EPA Greenhouse Gas Score: - TBD -
Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
Fuel Economy Est-Combined (MPG): 17
EPA Fuel Economy Est - City (MPG): 16
EPA Fuel Economy Est - Hwy (MPG): 21
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
Wt Distributing Hitch - Max Tongue Wt. (lbs): 770
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7600
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1900
Maximum Trailering Capacity (lbs): 9800
Engine Type: Gas V6
Fuel System: Direct Injection
Engine Order Code: LV3
Displacement: 4.3L/262
SAE Net Horsepower @ RPM: 285 @ 5300
SAE Net Torque @ RPM: 305 @ 3900
Engine Oil Cooler: Yes
Cold Cranking Amps @ 0° F (Primary): 730
Maximum Alternator Capacity (amps): 170
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity (qts): - TBD -
Frame Type: Hydroformed
Suspension Type - Front: Independent
Suspension Type - Rear: Solid Axle
Spring Capacity - Front (lbs): 3700
Spring Capacity - Rear (lbs): 3850
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): 3700
Axle Capacity - Rear (lbs): 3800
Axle Ratio (:1) - Rear: 3.42
Shock Absorber Diameter - Front (mm): 50
Shock Absorber Diameter - Rear (mm): 50
Stabilizer Bar Diameter - Front (in): 1.30
Front Tire Order Code: QBN
Rear Tire Order Code: QBN
Spare Tire Order Code: QBR
Front Tire Size: 255/70R17
Rear Tire Size: 255/70R17
Spare Tire Size: 255/70R17
Front Tire Capacity (lbs): - TBD -
Rear Tire Capacity (lbs): - TBD -
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 17 x 8.0
Rear Wheel Size (in): 17 x 8.0
Spare Wheel Size (in): 17 x - TBD -
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb (ft): 46.3
Turning Diameter - Wall to Wall (ft): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
Fuel Tank Capacity, Approx (gal): 24
Fuel Tank Location: - TBD -
Wheelbase (in): 147.44
Length, Overall (in): 231.75
Width, Max w/o mirrors (in): 81.24
Height, Overall (in): 75.63
Overhang, Front (in): - TBD -
Overhang, Rear w/o bumper (in): - TBD -
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): - TBD -
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 7.87
Ground Clearance, Rear (in): 7.87
Cargo Box Length @ Floor (in): 79.44
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 71.4
Cargo Box Width @ Wheelhousings (in): 50.63
Cargo Box (Area) Height (in): 22.4
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 71.7
Ext'd Cab Cargo Volume (ft³): - TBD -
