Tailgate
Standard (Deletes (Qk2) Gmc Multipro Tailgate.) *Upon Selection Of This Option The Base Price Will Change*
License Plate Kit
Front (Will Be Forced On Orders With Ship-To States That Require Front License Plate)
Exhaust
Dual With Premium Tips (Included And Only Available With (X31) X31 Off-Road Package.)
Skid Plates (Included And Only Available With (X31) X31 Off-Road Package.)
Trailer Brake Controller
Integrated (Included With (Nht) Max Trailering Package Or (Zl6) Prograde Trailering System. Required With (Pdq) Preferred Package.)
Transfer Case
Two-Speed
Electronic Autotrac With Push Button Control (4Wd Models Only) (Included And Only Available With (X31) X31 Off-Road Package.)
Hill Descent Control (Included And Only Available With (X31) X31 Off-Road Suspension Package.)
Engine Block Heater (Included With (Lm2) Duramax 3.0L Turbo-Diesel I6 Engine.)
Air Filter
Heavy-Duty (Included And Only Available With (X31) X31 Off-Road Package.)
X31 Off-Road Package Includes Off-Road Suspension
(Jhd) Hill Descent Control
(Nzz) Skid Plates
(K47) Heavy-Duty Air Filter And X31 Hard Badge Includes (Qae) 275/60R20Sl All-Terrain
Blackwall Tires And (Nqh) 2-Speed Transfer Case. Includes (N10) Dual Exhaust. (Requires 4Wd Model And At Tires. Included With (Rfx) X31 Off-Road And Protection Package. Not Available With (L3B) 2.7L Turbo Engine
(Nht) Max Trailering Package Or 22" Lpo Wheels.)
Audio System
Gmc Infotainment System With 8" Diagonal Color Touch-Screen
AM/FM Stereo With Seek-And-Scan And Digital Clock
Includes Bluetooth Streaming Audio For Music And Select Phones; Featuring Wired Android Auto And Apple Carplay Capability For Compatible Phones (Std)
Jet Black
Cloth Seat Trim
Seats
Front 40/20/40 Split-Bench With Covered Armrest Storage And Under-Seat Storage (Lockable) (Std)
Onyx Black (Available At Extra Charge.)
Tires
275/60R20Sl All-Terrain
Blackwall (Includes (Qaq) Spare Tire.)
Wheels
20" X 9" (50.8 Cm X 22.9 Cm) Black Gloss Painted Aluminum (Std)
Elevation Preferred Equipment Group Includes Standard Equipment
Rear Axle
3.23 Ratio (Included And Only Available With (L84) 5.3L Ecotec3 V8 Engine Or (Lm2) Duramax 3.0L Turbo-Diesel I6 Engine. Not Available With (Nht) Max Trailering Package.)
Gvwr
7200 Lbs. (3266 Kg) (Requires Crew Cab 4Wd Model And (Lm2) Duramax 3.0L Turbo-Diesel I6 Engine.)
Keyless Start
Transmission
10-Speed Automatic
Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (No Longer Available On 4Wd Models Built With (L84) 5.3L Ecotec3 V8 Engine After December 15
2020. Included And Available With (Lm2) Duramax 3.0L Turbo-Diesel I6 Engine.)
Engine
Duramax 3.0L Turbo-Diesel I6 (277 Hp [206.6 Kw] @ 3750 Rpm
460 Lb-Ft Of Torque [623.7 N-M] @ 1500 Rpm) (Includes (Kw5) 220-Amp Alternator And (K05) Engine Block Heater.)
Emissions Override
Federal (For Vehicles Ordered By Dealers In Federal Emission States With (Yf5) Or (Ne1) Emissions - Not Required For Vehicles Being Shipped To California
Connecticut
Delaware
Maine
Maryland
Massachusetts
New Jersey
New York
Oregon
Pennsylvania
Rhode Island
Vermont Or Washington) (Requires (Yf5) California State Emissions Requirements Or (Ne1) Connecticut
Vermont Or Washington State Emissions Requirements.)
Emissions
Vermont And Washington State Requirements
HandsFree/Bluetooth
Keyless Entry
Satellite Radio
Tow-Package
Smart Device Integration
WiFi Hotspot
Turbocharged
Heated Seats
New Arrival
(277 hp [206.6 kW] @ 3750 rpm, 460 lb-ft of torque [623.7 N-m] @ 1500 rpm) (Includes (KW5) 220-amp alternator and (K05) engine block heater.): LM2-R
(Includes (QAQ) spare tire.): QAE
(Available at extra charge.): GBA
includes Off-Road suspension, (JHD) Hill Descent Control, (NZZ) skid plates, (K47) heavy-duty air filter and X31 hard badge Includes (QAE) 275/60R20SL all-terrain, blackwall tires and (NQH) 2-speed transfer case. Includes (N10) dual exhaust. (Requires 4WD model and AT tires. Included with (RFX) X31 Off-Road and Protection Package. Not available with (L3B) 2.7L Turbo engine, (NHT) Max Trailering Package or 22" LPO wheels.): X31-R
(Included with (LM2) Duramax 3.0L Turbo-Diesel I6 engine.): K05
(Included with (NHT) Max Trailering Package or (ZL6) ProGrade Trailering System. Required with (PDQ) Preferred Package.): JL1-R
PACKAGE: Trailering Package includes trailer hitch, 7-pin and 4-pin connectors and (CTT) Hitch Guidance
PACKAGE: Elevation Convenience Package includes (CJ2) dual climate control, (A2X) 10-way power driver seat including power lumbar, (KA1) heated driver and passenger seats, (KI3) heated steering wheel, (N37) manual tilt/telescoping steering column and (B1J) rear wheelhouse liners (Included with (PDE) Elevation Value Package. Crew Cab models include (R7O) Cloth Rear Seat Storage Package.)
PACKAGE: Elevation Value Package includes (G80) auto-locking rear differential and (Z82) Trailering Package (If (PDQ) Preferred Package is ordered (A50) bucket seats are required.)
MECHANICAL: Rear axle, 3.42 ratio (Included and only available with (L3B) 2.7L Turbo engine or (NHT) Max Trailering Package.)
MECHANICAL: Pickup bed
MECHANICAL: GVWR, 7000 lbs. (3175 kg) (Requires Crew Cab or Double Cab 4WD model and (L3B) 2.7L Turbo engine. Requires Crew Cab 2WD model and (LM2) Duramax 3.0L Turbo-Diesel I6 engine. Requires Double Cab 4WD model with (L84) 5.3L EcoTec3 V8 engine without (NHT) Max Trailering Package.)
MECHANICAL: Automatic Stop/Start
MECHANICAL: Auto-locking rear differential
MECHANICAL: Transfer case, single speed, electronic Autotrac with push button control (4WD models only)
MECHANICAL: Four wheel drive
MECHANICAL: Alternator, 220 amps (Included and only available with (L3B) 2.7L Turbo engine, (LM2) Duramax 3.0L Turbo-Diesel I6 engine or (NHT) Max Trailering Package.)
MECHANICAL: Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power (Included and only available with (L84) 5.3L EcoTec3 V8 engine, (L3B) 2.7L Turbo engine and (L87) 6.2L EcoTec3 V8 engine.)
MECHANICAL: Frame, fully-boxed, hydroformed front section
MECHANICAL: Recovery hooks, front, frame-mounted, Black
MECHANICAL: Cargo tie downs (12), fixed, rated at 500 lbs per corner
MECHANICAL: Steering, Electric Power Steering (EPS) assist, rack-and-pinion
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
MECHANICAL: Capless Fuel Fill
MECHANICAL: Exhaust, single outlet
MECHANICAL: Exhaust, aluminized stainless-steel muffler and tailpipe
EXTERIOR: Wheels, 20" x 9" (50.8 cm x 22.9 cm) Black gloss painted aluminum
EXTERIOR: Tire, spare 255/80R17SL all-season, blackwall (Included and only available with 20" or 22" wheels and tires.)
EXTERIOR: Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
EXTERIOR: Wheelhouse liners, rear
EXTERIOR: Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
EXTERIOR: Bumper, front, body-color lower (Front bumper color will be high gloss black.)
EXTERIOR: Bumper, rear body-color with corner steps
EXTERIOR: CornerStep, rear bumper
EXTERIOR: Grille (Body-color surround with high gloss Black mesh and inserts.)
EXTERIOR: Headlamps, LED reflector with incandescent turn signals and LED signature Daytime Running Lamps
EXTERIOR: Fog lamps, LED
EXTERIOR: Taillamps, LED tail and stop light with incandescent reverse light
EXTERIOR: Mirrors, outside heated power-adjustable
EXTERIOR: Glass, deep-tinted
EXTERIOR: Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
EXTERIOR: LED Cargo Area Lighting located in cargo bed activated with switch on center switch bank or key fob
EXTERIOR: Tailgate, gate function manual with EZ Lift includes power lock and release, includes hitch area light
EXTERIOR: Tailgate and bed rail protection caps, top
EXTERIOR: Door handles, body-color
ENTERTAINMENT: Audio system, GMC Infotainment System with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
ENTERTAINMENT: SiriusXM Radio enjoy an All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the SiriusXM app, online and at home on compatible connected devices is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change. GM connected vehicle services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. See onstar.com for details and limitations.)
ENTERTAINMENT: Audio system feature, 6-speaker system
ENTERTAINMENT: Bluetooth for phone connectivity to vehicle infotainment system
ENTERTAINMENT: Steering wheel audio controls
ENTERTAINMENT: 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
INTERIOR: Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
INTERIOR: Seat adjuster, driver 10-way power including lumbar
INTERIOR: Seat adjuster, passenger 4-way manual
INTERIOR: Seating, heated driver and front outboard passenger
INTERIOR: Seat, Cloth Rear with Storage Package, 60/40 folding bench for Crew Cab models, includes seatback storage on left and right side, center fold out armrest with 2 cupholders, (includes child seat top tether anchor)
INTERIOR: Floor covering, color-keyed carpeting
INTERIOR: Floor mats, rubberized-vinyl front (Deleted when (RIA) All-weather floor liner, LPO is ordered.)
INTERIOR: Floor mats, rubberized-vinyl rear (Deleted when (RIA) All-weather floor liner, LPO is ordered.)
INTERIOR: Steering column, manual Tilt-Wheel and telescoping
INTERIOR: Steering wheel, leather-wrapped
INTERIOR: Steering wheel, heated
INTERIOR: Instrument cluster, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure
INTERIOR: Driver Information Center, 4.2" diagonal color display includes driver personalization
INTERIOR: Compass, located in instrument cluster
INTERIOR: Exterior Temperature Display, located in radio display
INTERIOR: Brake lining wear indicator
INTERIOR: Windows, power front, drivers express up/down
INTERIOR: Window, power front, passenger express down
INTERIOR: Windows, power rear, express down
INTERIOR: Door locks, power
INTERIOR: Keyless Open and Start
INTERIOR: Remote vehicle starter system
INTERIOR: Cruise control, steering wheel-mounted
INTERIOR: Theft-deterrent system, unauthorized entry
INTERIOR: Steering column, lock control, electrical
INTERIOR: USB ports, 2 (first row) located on instrument panel
INTERIOR: Power outlet, front auxiliary, 12-volt
INTERIOR: USB ports, dual, charge-only (2nd row)
INTERIOR: Power outlet, rear auxiliary, 12-volt
INTERIOR: Air conditioning, dual-zone automatic climate control (Models built before 9-6-2021 feature digital temperature displays on the Climate Control Knobs. Certain vehicles built on or after 9-6-2021 will include (00D) Not Equipped with Climate Control Knob Digital Temperature Display, which removes the digital temperatures displayed on the Climate Control Knobs. See dealer for details.)
INTERIOR: Air vents, rear
INTERIOR: Defogger, rear-window electric
INTERIOR: Mirror, inside rearview, manual tilt
INTERIOR: Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
INTERIOR: GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
SAFETY: StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
SAFETY: Daytime Running Lamps, LED signature lighting
SAFETY: Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
SAFETY: Hitch Guidance
SAFETY: Rear Vision Camera
SAFETY: Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
SAFETY: Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)
SAFETY: Rear Seat Reminder

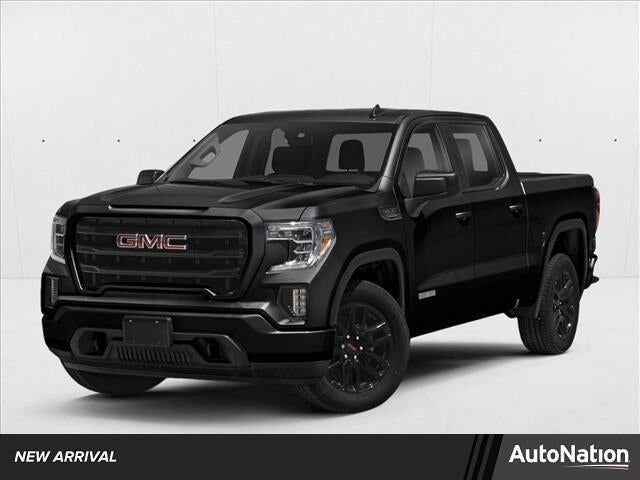

GMC Sierra 1500
Body Style: Crew Cab Pickup
Body Code: E63
Drivetrain: Four Wheel Drive
Trans Order Code: MQB
Trans Type: 10
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.69
Second Gear Ratio (:1): 2.98
Third Gear Ratio (:1): 2.15
Fourth Gear Ratio (:1): 1.8
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.28
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Ninth Gear Ratio (:1): 0.69
Tenth Gear Ratio (:1): 0.63
Reverse Ratio (:1): 4.86
Transfer Case Model: Magna
Transfer Case Gear Ratio (:1), High: 1.0
Transfer Case Gear Ratio (:1), Low: 2.69
Passenger Capacity: 6
Front Head Room (in): 43.03
Front Leg Room (in): 44.53
Front Shoulder Room (in): 66.02
Front Hip Room (in): 61.18
Second Head Room (in): 40.12
Second Leg Room (in): 43.4
Second Shoulder Room (in): 65.16
Second Hip Room (in): 60.24
Gross Axle Wt Rating - Front (lbs): 3800
Gross Axle Wt Rating - Rear (lbs): 3800
Curb Weight - Front (lbs): 2839
Curb Weight - Rear (lbs): 1976
Gross Vehicle Weight Rating Cap (lbs): 7200
Gross Combined Wt Rating (lbs): 15000
Tons/yr of CO2 Emissions @ 15K mi/year: 8.5
Fuel Economy Est-Combined (MPG): 24
EPA Fuel Economy Est - City (MPG): 22
EPA Fuel Economy Est - Hwy (MPG): 26
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 8500
Wt Distributing Hitch - Max Tongue Wt. (lbs): 850
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7000
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1750
Maximum Trailering Capacity (lbs): 10900
Engine Type: Diesel I6
Fuel System: Direct Injection
Engine Order Code: LM2
Displacement: 3.0L/183
SAE Net Horsepower @ RPM: 277 @ 3750
SAE Net Torque @ RPM: 460 @ 1500
Engine Oil Cooler: Yes
Cold Cranking Amps @ 0° F (Primary): 850
Maximum Alternator Capacity (amps): 220
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity (qts): - TBD -
Frame Type: Hydroformed
Suspension Type - Front: Independent
Suspension Type - Rear: Solid Axle
Spring Capacity - Front (lbs): 3800
Spring Capacity - Rear (lbs): 3850
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): 3800
Axle Capacity - Rear (lbs): 3800
Axle Ratio (:1) - Front: 3.23
Axle Ratio (:1) - Rear: 3.23
Shock Absorber Diameter - Front (mm): 50
Shock Absorber Diameter - Rear (mm): 50
Stabilizer Bar Diameter - Front (in): 1.30
Front Tire Order Code: QAE
Rear Tire Order Code: QAE
Spare Tire Order Code: QAQ
Front Tire Size: 275/60R20SL
Rear Tire Size: 275/60R20SL
Spare Tire Size: 255/80R17SL
Front Tire Capacity (lbs): - TBD -
Rear Tire Capacity (lbs): - TBD -
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 20 x 9.0
Rear Wheel Size (in): 20 x 9.0
Spare Wheel Size (in): 17 x - TBD -
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb (ft): 46.9
Turning Diameter - Wall to Wall (ft): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
Fuel Tank Capacity, Approx (gal): 24
Fuel Tank Location: - TBD -
Wheelbase (in): 147.43
Length, Overall (in): 231.72
Width, Max w/o mirrors (in): 81.24
Height, Overall (in): 75.51
Overhang, Front (in): - TBD -
Overhang, Rear w/o bumper (in): - TBD -
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): - TBD -
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 8.09
Ground Clearance, Rear (in): 8.09
Cargo Box Length @ Floor (in): 69.92
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 71.4
Cargo Box Width @ Wheelhousings (in): 50.63
Cargo Box (Area) Height (in): 22.4
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 62.9
Ext'd Cab Cargo Volume (ft³): - TBD -
