SiriusXM delete
Audio system Chevrolet Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps (late feature availability); USB ports; auxiliary jack. (Includes (UQ3) 6-speaker audio system.
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Assist Steps aluminum
Tire valve cap (Alligaro V2B) flo-thru
Grille chrome
Tires front 225/70R19.5H traction blackwall Continental Max Axle Load: 8000 lb.
Paints solid Wheatland Yellow All normally body colored non-sheet metal parts will be Black. May require extended lead time.
Air Compressor Accessory Drive
Bumper front chrome
Door handles outside chrome
Tires rear 225/70R19.5H traction blackwall Continental Max Axle Load: 16000 lb.
Special Paint Solid one color All normally body colored non-sheet metal parts will be Black. May require extended lead time.
Tire Spare 225/70R19.5H traction blackwall Continental Includes (V33) Rim Wrench and handle only tool kit.)
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Paint Scheme Style 1
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Wheels 19.5" x 6.75" 6-aluminum wheels 8-holes hub piloted Dura-Bright finish is on the outside of the wheel
Wheel 19.5" x 6.75" spare aluminum 8-holes temporary mounted on frame. Dura-Bright finish is on the outside of the wheel.
Glass deep-tinted
Visors driver and front passenger vinyl
Seat trim Vinyl
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane
Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
Mirror inside rearview manual day/night
Seat Belt Black
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Key system 2 spare keys
Seats front 40/20/40 split-bench cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
Remote Keyless Entry
Provisions for electrical switch bank consists of (6) two position latching rocker style switch modules with an on/off indicator window. The application of each switch will be defined by the customer/up fitter. Located on Headliner.
Jet Black Cloth seat trim includes manually adjustable driver lumbar
Seat adjuster driver 10-way power
Windows power with driver express up and down and express down on all other windows
Emissions 50 state certification
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Emissions USA 50 State certified
Rear wheel drive
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Shock Absorbers rear (Included with (FTC) 6250 lb. front axle.)
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Exhaust brake
Trailer brake controller integrated
Front suspension 8000 lb. (3629 kg) multi-leaf includes shock absorbers
Rear axle 15500 lb. (7031 kg)
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Battery top post threaded battery jump start stud (located on battery box)
GVWR 23500 lb. (10659 kg)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Rear axle 4.56 ratio Max road speed: 70 MPH
Tool kit Rim Wrench and handle only
Fuel tank front and rear 65 gallon total
Axle to End of Frame 91"
Rear suspension - Air 15500 lb. (7031 kg) 5.3" ride height with shock absorbers
Alternators dual 150 amps and 220 amps each

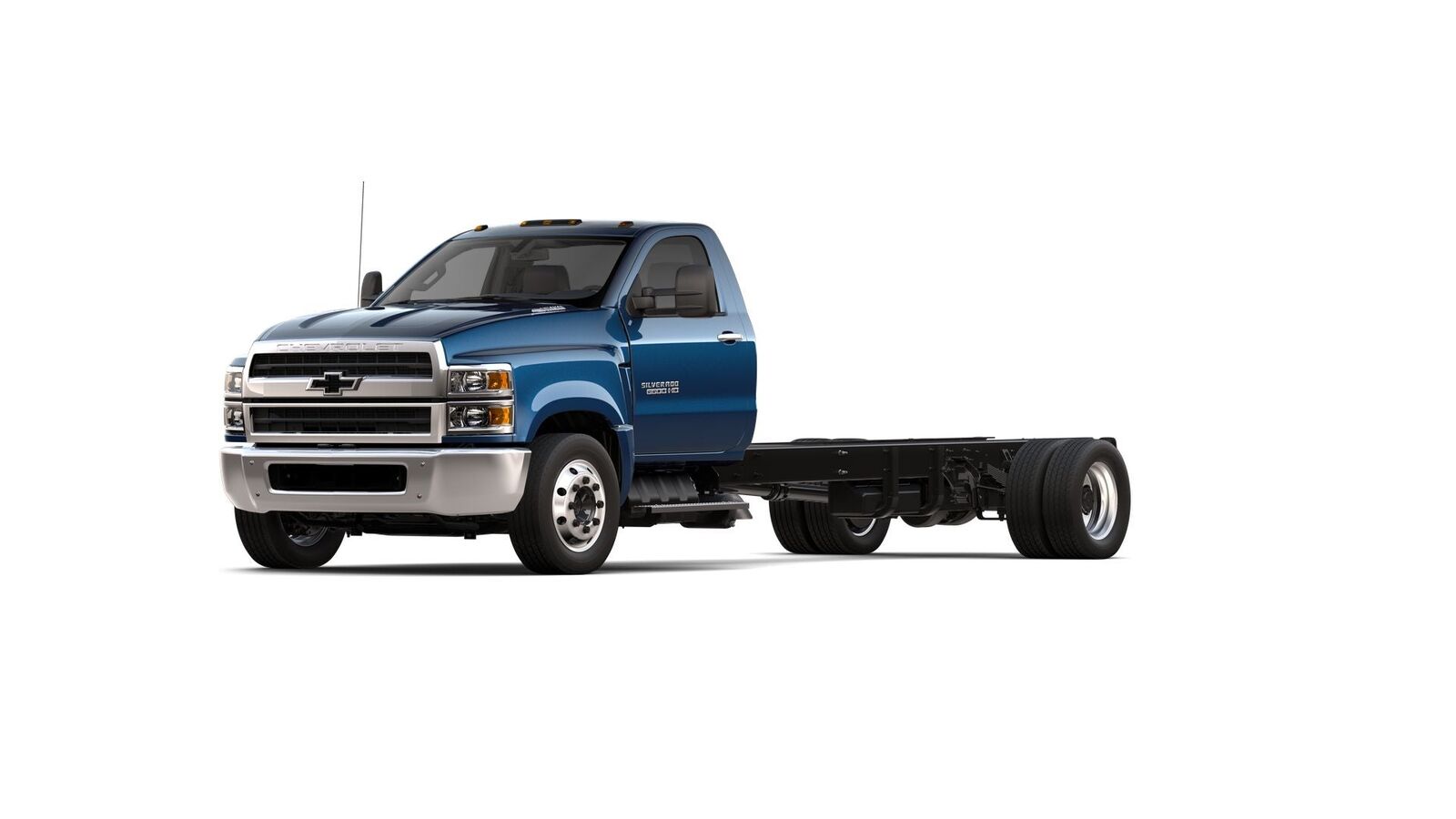

6500 HD Series
35000 lb. GCWR (15875 kg)
Front axle 8000 lb. Dana/Spicer D800-N "I"-beam non-driving
Exhaust system right side exit ahead of rear wheels
Front stabilizer bar
Wheelbase 231" (586.7 cm) 150" CA
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
Work Truck Preferred Equipment Group includes standard equipment
Wrecker/Rollback Vocational Package
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Horn dual-note
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
REAR AXLE 4.56 RATIO
Max road speed: 70 MPH
WORK TRUCK PREFERRED EQUIPMENT GROUP
includes standard equipment
ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING
includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS
includes battery box mounted to left side under cab
PAINTS SOLID WHEATLAND YELLOW
All normally body colored non-sheet metal parts will be Black. May require extended lead time.
SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER.
Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
BATTERY TOP POST THREADED BATTERY JUMP START STUD
(located on battery box)
MIRRORS OUTSIDE BLACK HEATED POWER-ADJUSTABLE HIGH-VISIBILITY VERTICAL CAMPER-STYLE AND LOWER CONVEX SPOTTER GLASS MANUAL-FOLDING.
Convex glass is not heated and not power adjustable. 102"
Wide Load
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION
customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
JET BLACK CLOTH SEAT TRIM
includes manually adjustable driver lumbar
AUDIO SYSTEM CHEVROLET INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN
AM/FM stereo with seek-and-scan and digital clock
includes Bluetooth® handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps (late feature availability); USB ports; auxiliary jack. (Includes (UQ3) 6-speaker audio system.
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE
350 hp @ 2500 rpm
750 lb.-ft. torque @ 1400 rpm (STD)
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2750RDS
ratios: 3.10 1ST
1.80 2ND
1.40 3RD
1.00 4TH
0.70 5TH
0.61 6TH Rugged Duty Series
includes park pawl
POWER TAKE OFF ENGINE CONTROL PROVISIONS
Access is available on left-hand and right-hand side
WHEELS 19.5" X 6.75" 6-ALUMINUM WHEELS 8-HOLES HUB PILOTED
Dura-Bright finish is on the outside of the wheel
WHEEL 19.5" X 6.75" SPARE ALUMINUM 8-HOLES
temporary mounted on frame. Dura-Bright finish is on the outside of the wheel.
BACK-UP ALARM CALIBRATION
This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
SPECIAL PAINT SOLID ONE COLOR
PROVISIONS FOR ELECTRICAL SWITCH BANK
consists of (6) two position
latching
rocker style switch modules with an on/off indicator window. The application of each switch will be defined by the customer/up fitter. Located on Headliner.
BACKUP ALARM
(Includes (SFW) SEO Calibration for backup alarm.
TIRES FRONT 225/70R19.5H TRACTION BLACKWALL CONTINENTAL
Max Axle Load: 8
000 lb.
TIRES REAR 225/70R19.5H TRACTION BLACKWALL CONTINENTAL
Max Axle Load: 16
TIRE SPARE 225/70R19.5H TRACTION BLACKWALL CONTINENTAL
Includes (V33) Rim Wrench and handle only tool kit.)
PAINT SCHEME
STYLE 1
KEY SYSTEM
2 SPARE KEYS
WINDOWS
POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
SEAT ADJUSTER
DRIVER 10-WAY POWER
GLASS
DEEP-TINTED
GVWR
23
500 LB. (10
659 KG)
ASSIST STEPS
ALUMINUM
DOOR HANDLES
OUTSIDE
CHROME
AXLE TO END OF FRAME
91"
WHEELBASE
231" (586.7 CM)
150" CA
FRONT SUSPENSION
8
000 LB. (3
629 KG) MULTI-LEAF
INCLUDES SHOCK ABSORBERS
FRONT AXLE
DANA/SPICER D800-N
"I"-BEAM
NON-DRIVING
AXLE
LIMITED SLIP
DANA SPICER TRUETRAC
TORQUE PROPORTIONING LIMITED SLIP
REAR SUSPENSION - AIR
15
500 LB. (7
031 KG)
5.3" RIDE HEIGHT WITH SHOCK ABSORBERS
REAR AXLE
DANA SPICER S16-140
SINGLE REDUCTION
ALTERNATORS
DUAL
150 AMPS AND 220 AMPS EACH
EXHAUST SYSTEM
RIGHT SIDE EXIT AHEAD OF REAR WHEELS
FUEL TANK
FRONT AND REAR
65 GALLON TOTAL
TIRE VALVE CAP
(ALLIGARO V2B) FLO-THRU
35
000 LB. GCWR (15
875 KG)
HORN
DUAL-NOTE
GRILLE
TOOL KIT
RIM WRENCH AND HANDLE ONLY
BUMPER
FRONT CHROME
