Tailgate
Multi-Flex With Six Functional Load/Access Features
Note: Auto Release Can Be Disabled If Ball Hitch Is Installed. See Owner'S Manual For Details
License Plate Kit
Front (Will Be Shipped To Orders With Ship-To States That Require Front License Plate)
Navigation System
Chevytec Spray-On Bedliner
Black (Does Not Include Spray-On Liner On Tailgate Due To Black Composite Inner Panel) (Included With (Wjp) Midnight Edition
(G0S) Realtree Special Edition Or (Cwk) Dark Appearance Package. Available With Ship Thru Codes (Vco)
(Vdt)
(Vyc)
(Vys)
(A6T)
(Tw3)
(Vi1)
(Vdj)
(Vkz)
(Wez) Or (Tfa).)
Lpo
Off-Road High Clearance Steps (Dealer-Installed) (Not Available With Any Other Assist Steps.)
Exhaust
Dual With Polished Outlets (Included And Only Available With (L84) 5.3L Ecotec3 V8 Engine Or (Lz0) Duramax 3.0L Turbo-Diesel I6 Engine.)
Trailer Brake Controller
Integrated
Alternator
170 Amps (Included And Only Available With (L84) 5.3L Ecotec3 V8 Engine. Not Available With (L3B) Turbomax Engine.)
Cooling
Auxiliary External Transmission Oil Cooler (Included And Only Available With V8 Engines.)
External Engine Oil Cooler (Included And Only Available With V8 Engines.)
Audio System
Chevrolet Infotainment 3 System 7" Diagonal Hd Color Touchscreen
AM/FM Stereo
Bluetooth Audio Streaming For 2 Active Devices
Voice Command Pass-Through To Phone
Wireless Apple Carplay And Wireless Android Auto Compatibility (Std)
Jet Black
Cloth Seat Trim
Seats
Front 40/20/40 Split-Bench With Covered Armrest Storage And Under-Seat Storage (Lockable) (Std)
Slate Gray Metallic (Not Available On 1Wt
1Lt
2Fl Or 2Lt.)
Tire
Spare 265/70R17Sl All-Season
Blackwall (Std)
Tires
Lt275/65R18C Blackwall Goodyear Wrangler Territory Mt (Std)
Wheels
18" X 8.5" (45.7 Cm X 21.6 Cm) High Gloss Black Painted Aluminum (Std)
Custom Trail Boss Preferred Equipment Group Includes Standard Equipment
Rear Axle
3.23 Ratio (Included And Only Available With (L84) 5.3L Ecotec3 V8 Engine Or (Lz0) Duramax 3.0L Turbo-Diesel I6 Engine.)
Lane Keeping Assist
Gvwr
7100 Lbs. (3221 Kg) (Requires (L84) 5.3L Ecotec3 V8 Engine.)
Keyless Start
Transmission
10-Speed Automatic
Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Included And Only Available With (L84) 5.3L Ecotec3 V8 Engine.)
Engine
5.3L Ecotec3 V8 (355 Hp [265 Kw] @ 5600 Rpm
383 Lb-Ft Of Torque [518 Nm] @ 4100 Rpm); Featuring Available Dynamic Fuel Management That Enables The Engine To Operate In 17 Different Patterns Between 2 And 8 Cylinders
Depending On Demand
To Optimize Power Delivery And Efficiency
Emissions
Colorado
Connecticut
Delaware
Maine
Maryland
Massachusetts
Minnesota
Nevada
New Jersey
New York
Oregon
Pennsylvania
Rhode Island
Vermont
Virginia And Washington State Requirements
HandsFree/Bluetooth
Keyless Entry
Satellite Radio
Tow-Package
Smart Device Integration
WiFi Hotspot
New Arrival
(355 hp [265 kW] @ 5600 rpm, 383 lb-ft of torque [518 Nm] @ 4100 rpm); featuring available Dynamic Fuel Management that enables the engine to operate in 17 different patterns between 2 and 8 cylinders, depending on demand, to optimize power delivery and efficiency: L84-R
JL1
(dealer-installed) (Not available with any other assist steps.): VXW
with six functional load/access features, NOTE: Auto release can be disabled if ball hitch is installed. See Owner's manual for details: QK2
PACKAGE: Trailering Package includes trailer hitch, 7-pin and 4-pin connectors and (CTT) Hitch Guidance
PACKAGE: Chevy Safety Assist includes (UHY) Automatic Emergency Braking, (UKJ) Front Pedestrian Braking, (UHX) Lane Keep Assist with Lane Departure Warning, (UE4) Following Distance Indicator, (UEU) Forward Collision Alert and (TQ5) IntelliBeam
PACKAGE: Custom Convenience Package includes (BTV) Remote Start with (UTJ) content theft alarm, (C49) rear-window defogger, (UF2) bed LED cargo area lighting and (QT5) EZ Lift power lock and release tailgate
MECHANICAL: Rear axle, 3.42 ratio
MECHANICAL: Durabed, pickup bed
MECHANICAL: GVWR, 7000 lbs. (3175 kg) (Requires (L3B) TurboMax engine.)
MECHANICAL: Push Button Start
MECHANICAL: Automatic Stop/Start
MECHANICAL: Hill Descent Control
MECHANICAL: Transfer case, two-speed electronic Autotrac with push button control (4WD models only)
MECHANICAL: Auto-locking rear differential
MECHANICAL: Four wheel drive
MECHANICAL: Air filter, heavy-duty
MECHANICAL: Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
MECHANICAL: Alternator, 220 amps (Included and only available with (L3B) TurboMax engine or (LZ0) Duramax 3.0L Turbo-Diesel I6 engine.)
MECHANICAL: Recovery hooks, performance Red
MECHANICAL: Skid Plates
MECHANICAL: Frame, fully-boxed, hydroformed front section
MECHANICAL: Suspension Package, Z71 Off-Road equipment with 2" lift. Includes (Z7X) Off-Road suspension with 2" lift and monotube shocks, (JHD) Hill Descent Control, (NZZ) skid plates, (K47) heavy-duty air filter and Z71 hard badge
MECHANICAL: Steering, Electric Power Steering (EPS) assist, rack-and-pinion
MECHANICAL: Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
MECHANICAL: Brake lining wear indicator
MECHANICAL: Capless Fuel Fill
MECHANICAL: Exhaust, single outlet
EXTERIOR: Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) High gloss Black painted aluminum
EXTERIOR: Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
EXTERIOR: Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
EXTERIOR: Bumper, front (High gloss black.)
EXTERIOR: Bumper, rear (High gloss black.)
EXTERIOR: CornerStep, rear bumper
EXTERIOR: Cargo tie downs (12), fixed rated at 500 lbs per corner
EXTERIOR: Headlamps, halogen reflector with halogen Daytime Running Lamps
EXTERIOR: IntelliBeam, automatic high beam on/off
EXTERIOR: Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel (incandescent on Regular Cab models, LED on Crew Cab and Double Cab models)
EXTERIOR: LED Cargo Area Lighting located in pickup bed, activated with switch on center switch bank or key fob
EXTERIOR: Taillamps with incandescent tail, stop and reverse lights
EXTERIOR: Mirrors, outside heated power-adjustable
EXTERIOR: Glass, deep-tinted
EXTERIOR: Door handles, Black
EXTERIOR: Tailgate and bed rail protection cap, top
EXTERIOR: Tailgate, standard
EXTERIOR: Tailgate, gate function manual with EZ Lift includes power lock and release
ENTERTAINMENT: Audio system, Chevrolet Infotainment 3 system 7" diagonal HD color touchscreen, AM/FM stereo, Bluetooth audio streaming for 2 active devices, voice command pass-through to phone, Wireless Apple CarPlay and Wireless Android Auto compatibility
ENTERTAINMENT: SiriusXM Trial Subscription (IMPORTANT: The SiriusXM trial subscription is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. Trial subscription is subject to the SiriusXM Customer Agreement and privacy policy, visit www.siriusxm.com which includes full terms and how to cancel. All fees, content, features, and availability are subject to change.)
ENTERTAINMENT: Audio system feature, 6-speaker system
ENTERTAINMENT: Wireless phone projection for Apple CarPlay and Android Auto
ENTERTAINMENT: Bluetooth for phone, connectivity to vehicle infotainment system
ENTERTAINMENT: Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
INTERIOR: Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
INTERIOR: Seat trim, Cloth
INTERIOR: Seat adjuster, driver 10-way power including lumbar
INTERIOR: Seat adjuster, passenger 4-way manual
INTERIOR: Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
INTERIOR: Floor covering, color-keyed carpeting
INTERIOR: Floor mats, rubberized vinyl, front (Deleted when LPO floor liners are ordered.)
INTERIOR: Floor mats, rubberized-vinyl rear (Deleted when LPO floor liners are ordered.)
INTERIOR: Steering wheel, urethane
INTERIOR: Steering column, Tilt-Wheel, manual with wheel locking security feature
INTERIOR: Steering column lock, electrical
INTERIOR: Instrument cluster, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure
INTERIOR: Driver Information Center, 3.5" diagonal monochromatic display
INTERIOR: Exterior Temperature Display located in radio display
INTERIOR: Compass located in instrument cluster
INTERIOR: Window, power front, drivers express up/down
INTERIOR: Window, power front, passenger express down
INTERIOR: Windows, power rear, express down
INTERIOR: Door locks, power
INTERIOR: Remote Keyless Entry, with 2 transmitters
INTERIOR: Remote vehicle starter system
INTERIOR: Cruise control, electronic with set and resume speed, steering wheel-mounted
INTERIOR: Theft-deterrent system, unauthorized entry
INTERIOR: Power outlet, front auxiliary, 12-volt
INTERIOR: Power outlet, interior power outlet, 120-volt (400 watts shared with (KC9) bed mounted power outlet)
INTERIOR: USB Ports, 2, Charge/Data ports located on instrument panel
INTERIOR: USB ports, rear, dual, charge-only
INTERIOR: Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) interior power outlet)
INTERIOR: Air conditioning, single-zone manual
INTERIOR: Air vents, rear, heating/cooling
INTERIOR: Defogger, rear-window electric
INTERIOR: Mirror, inside rearview, manual tilt
INTERIOR: Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
SAFETY: Automatic Emergency Braking
SAFETY: Front Pedestrian Braking
SAFETY: StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
SAFETY: Daytime Running Lamps with automatic exterior lamp control
SAFETY: Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
SAFETY: OnStar Services capable (See onstar.com for details and limitations. Services vary by model. Service plan required.)
SAFETY: OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. For MY25 vehicles, OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)
SAFETY: HD Rear Vision Camera
SAFETY: Hitch Guidance dynamic single line to aid in trailer alignment for hitching
SAFETY: Lane Keep Assist with Lane Departure Warning
SAFETY: Following Distance Indicator
SAFETY: Forward Collision Alert
SAFETY: Rear Seat Reminder
SAFETY: Rear Seat Belt Indicator
SAFETY: Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
SAFETY: Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
SAFETY: Tire Pressure Monitoring System, auto learn includes Tire Fill Alert (does not apply to spare tire)

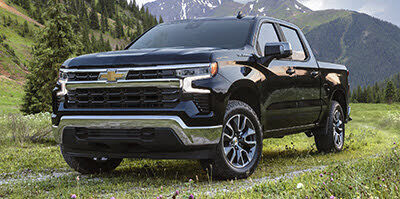

Chevrolet Silverado 1500
Body Style: Crew Cab Pickup
Body Code: E63
Drivetrain: Four Wheel Drive
Trans Order Code: MHT
Trans Type: 10
Trans Description Cont.: Automatic
First Gear Ratio (:1): 4.70
Second Gear Ratio (:1): 2.99
Third Gear Ratio (:1): 2.15
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.28
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Ninth Gear Ratio (:1): 0.69
Tenth Gear Ratio (:1): 0.64
Reverse Ratio (:1): 4.87
Transfer Case Model: - TBD -
Transfer Case Gear Ratio (:1), High: - TBD -
Transfer Case Gear Ratio (:1), Low: - TBD -
Passenger Capacity: 6
Front Head Room (in): 43.03
Front Leg Room (in): 44.53
Front Shoulder Room (in): 66.02
Front Hip Room (in): 61.18
Second Head Room (in): 40.12
Second Leg Room (in): 43.4
Second Shoulder Room (in): 65.16
Second Hip Room (in): 60.24
Gross Axle Wt Rating - Front (lbs): 3800
Gross Axle Wt Rating - Rear (lbs): 3800
Curb Weight - Front (lbs): 2845
Curb Weight - Rear (lbs): 1981
Gross Vehicle Weight Rating Cap (lbs): 7100
Gross Combined Wt Rating (lbs): 15000
Fuel Economy Est-Combined (MPG): 16
EPA Fuel Economy Est - City (MPG): 15
EPA Fuel Economy Est - Hwy (MPG): 18
Tons/yr of CO2 Emissions @ 15K mi/year: 9
EPA Greenhouse Gas Score: 3
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8700
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2175
Maximum Trailering Capacity (lbs): 9300
Engine Type: Gas V8
Fuel System: Direct Injection
Engine Order Code: L84
Displacement: 5.3L/325
SAE Net Horsepower @ RPM: 355 @ 5600
SAE Net Torque @ RPM: 383 @ 4100
Engine Oil Cooler: - TBD -
Cold Cranking Amps @ 0° F (Primary): 730
Maximum Alternator Capacity (amps): 170
Total Cooling System Capacity (qts): - TBD -
Frame Type: Box Ladder
Suspension Type - Front: Lifted w/Independent coil-over-shock
Suspension Type - Rear: Lifted w/Solid Axle
Spring Capacity - Front (lbs): - TBD -
Spring Capacity - Rear (lbs): - TBD -
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): - TBD -
Axle Capacity - Rear (lbs): - TBD -
Axle Ratio (:1) - Front: 3.23
Axle Ratio (:1) - Rear: 3.23
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): 1.30
Front Tire Order Code: R3O
Rear Tire Order Code: R3O
Spare Tire Order Code: XCQ
Front Tire Size: LT275/65R18C
Rear Tire Size: LT275/65R18C
Spare Tire Size: 265/70R17SL
Front Tire Capacity (lbs): - TBD -
Rear Tire Capacity (lbs): - TBD -
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: N/A
Revolutions/Mile @ 45 mph - Rear: N/A
Revolutions/Mile @ 45 mph - Spare: N/A
Front Wheel Size (in): 18 x 8.5
Rear Wheel Size (in): 18 x 8.5
Spare Wheel Size (in): 17 x 8
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb (ft): 47.1
Turning Diameter - Wall to Wall (ft): N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13 x 1.18
Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
Fuel Tank Capacity, Approx (gal): 24
Fuel Tank Location: - TBD -
Wheelbase (in): 147.5
Length, Overall (in): 232.87
Width, Max w/o mirrors (in): 81.24
Height, Overall (in): 78.35
Overhang, Front (in): - TBD -
Overhang, Rear w/o bumper (in): - TBD -
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): - TBD -
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 11.1
Ground Clearance, Rear (in): 11.1
Cargo Box Length @ Floor (in): 69.92
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 71.4
Cargo Box Width @ Wheelhousings (in): 50.63
Cargo Box (Area) Height (in): 22.4
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 62.9
Ext'd Cab Cargo Volume (ft³): - TBD -
