Sliding Rear Window W/Privacy Glass
AM/FM Stereo W/6-Disc CD Changer
Sr5 Fabric Trim (Std)
Front Bucket Seats -Inc: 8-Way Pwr Drivers Seat
50-State Emissions
Keyless Entry
Tow-Package
8-way pwr drivers seat: BU
DZ
WR
MECHANICAL: 5.7L DOHC EFI 32-valve V8 engine w/dual VVT-i
MECHANICAL: Rear wheel drive
MECHANICAL: 6,900# GVWR
MECHANICAL: Vehicle stability control
MECHANICAL: Traction control (TRAC)
MECHANICAL: Automatic limited-slip differential
MECHANICAL: Tow equipment-inc: HD tow hitch receiver, 7-pin connector trailer brake control prewire, supplemental transmission cooler
MECHANICAL: TOW/HAUL mode, transmission temp gauge
MECHANICAL: Deck rail caps
MECHANICAL: Independent coil-spring high-mounted double wishbone front suspension w/low- pressure nitrogen gas shocks, stabilizer bar
MECHANICAL: Trapezoidal multi-leaf live axle rear suspension w/staggered low-pressure nitrogen gas shocks
MECHANICAL: P255/70R18 tires
MECHANICAL: 18" steel wheels
MECHANICAL: Hydraulic pwr rack & pinion steering
MECHANICAL: Pwr vented disc brakes
MECHANICAL: 4-wheel anti-lock brakes (ABS) w/brake assist
MECHANICAL: Electronic Brake-force Distribution (EBD)
EXTERIOR: Color-keyed upper & chrome lower front bumper w/chrome rear bumper
EXTERIOR: Chrome grille surround
EXTERIOR: Black pwr mirrors
EXTERIOR: High solar energy-absorbing rear glass
EXTERIOR: Variable intermittent windshield wipers
EXTERIOR: Black door/tailgate handles
EXTERIOR: Tailgate assist
INTERIOR: 2-way adjustable headrests
INTERIOR: Carpet flooring
INTERIOR: Tilt steering wheel w/column shifter
INTERIOR: Instrumentation-inc: tachometer, tripmeter, temp gauge, digital clock
INTERIOR: Pwr windows/door locks
INTERIOR: Cruise control
INTERIOR: Remote keyless entry system
INTERIOR: Engine immobilizer
INTERIOR: Dual zone air conditioning
INTERIOR: Rear heat ducts
INTERIOR: AM/FM stereo w/CD player, (6) speakers, digital audio input
INTERIOR: Fixed mast antenna
INTERIOR: Glove box illumination
INTERIOR: (4) front/(2) rear cup holders
INTERIOR: Cigarette lighter/ashtray w/illumination
INTERIOR: (2) front pwr points/(1) rear pwr point
INTERIOR: Overhead console
INTERIOR: Visors vanity mirrors w/extenders
INTERIOR: Illuminated entry system
INTERIOR: Map lamp
INTERIOR: Driver/front passenger seatback pockets
SAFETY: 4-wheel anti-lock brakes (ABS) w/brake assist
SAFETY: Electronic Brake-force Distribution (EBD)
SAFETY: Driver/front passenger advanced airbags w/occupant classification system, front passenger cutoff switch
SAFETY: Driver/front passenger seat mounted side airbags
SAFETY: Roll-sensing side curtain airbags
SAFETY: 3-point seatbelts in all seating positions
SAFETY: Child restraint system top tether anchors for center/passenger seats w/front passenger ISO-FIX anchor
SAFETY: Traction control (TRAC)

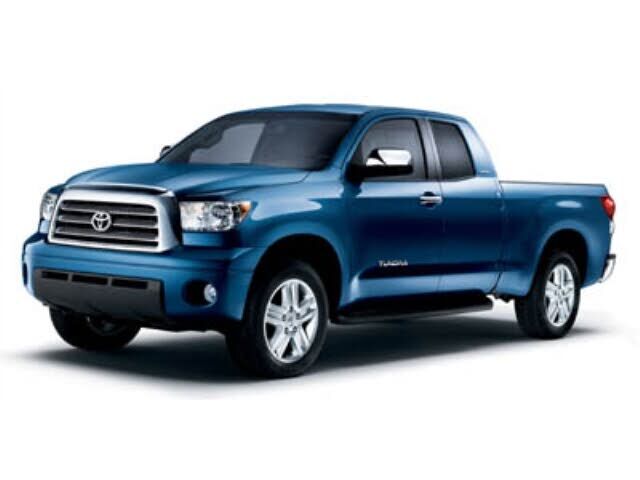

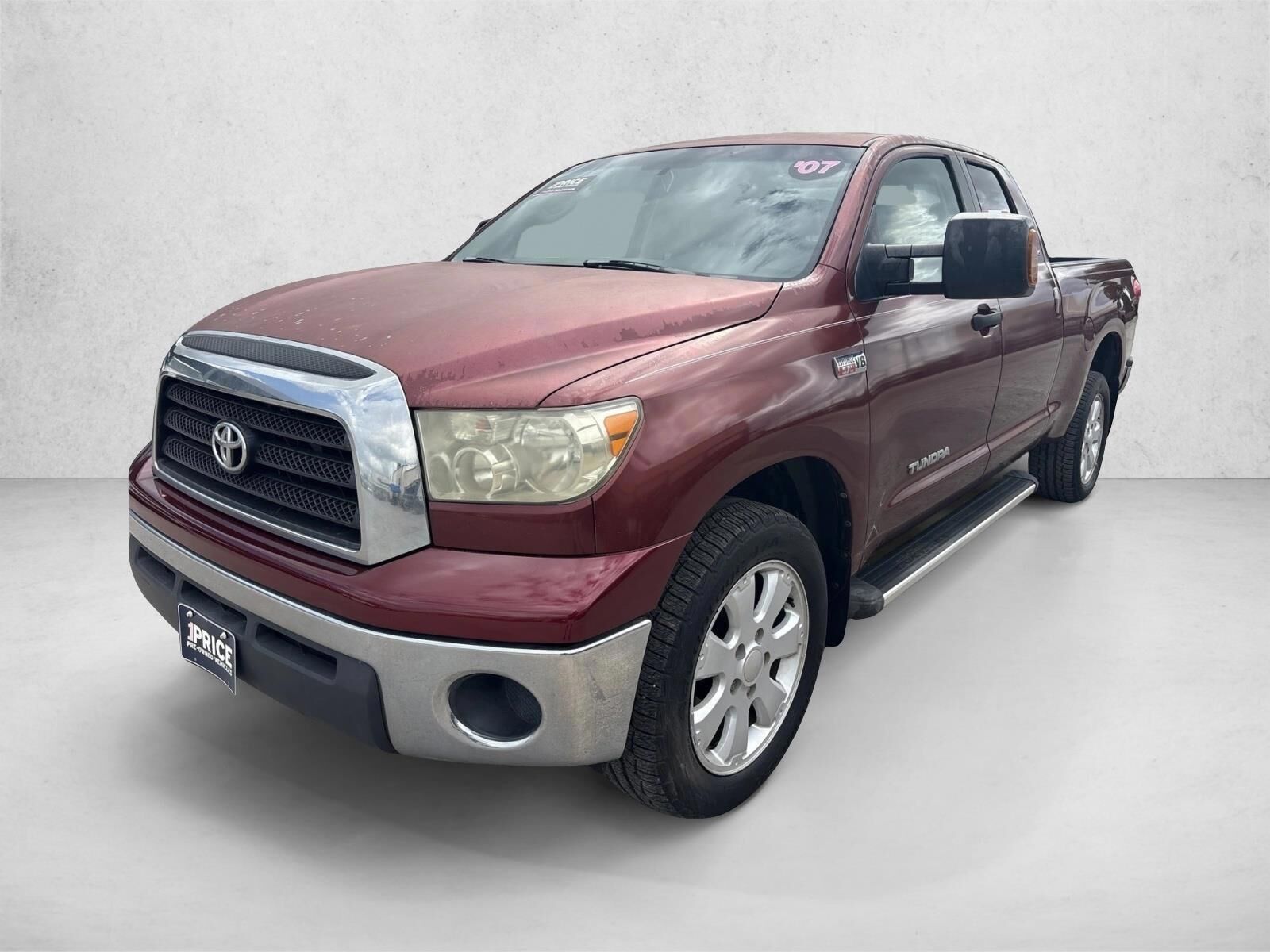

Toyota Tundra
Body Style: Double Cab
Body Code: - TBD -
Drivetrain: Rear Wheel Drive
Trans Type: 6
Trans Description Cont.: Automatic w/OD
First Gear Ratio (:1): 3.33
Second Gear Ratio (:1): 1.96
Third Gear Ratio (:1): 1.35
Fourth Gear Ratio (:1): 1.00
Fifth Gear Ratio (:1): 0.73
Sixth Gear Ratio (:1): 0.59
Reverse Ratio (:1): 3.06
Trans Power Take Off: - TBD -
Trans PTO Access: - TBD -
Passenger Capacity: 6
Front Head Room (in): 40.2
Front Leg Room (in): 42.5
Front Shoulder Room (in): 66.6
Front Hip Room (in): 63.0
Second Head Room (in): 38.7
Second Leg Room (in): 34.7
Second Shoulder Room (in): 65.7
Second Hip Room (in): 62.6
Gross Axle Wt Rating - Front (lbs): 3900
Gross Axle Wt Rating - Rear (lbs): 4100
Curb Weight - Front (lbs): 2960
Curb Weight - Rear (lbs): 2260
Gross Vehicle Weight Rating Cap (lbs): 6900
Gross Combined Wt Rating (lbs): 16000
EPA Fuel Economy Est - City (MPG): 16
EPA Fuel Economy Est - Hwy (MPG): 20
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 10600
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1060
Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10600
Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1060
Engine Type: Gas V8
Displacement: 5.7L/346
Fuel System: EFI
SAE Net Horsepower @ RPM: 381 @ 5600
SAE Net Torque @ RPM: 401 @ 3600
Cold Cranking Amps @ 0° F (Primary): - TBD -
Cold Cranking Amps @ 0° F (2nd): - TBD -
Maximum Alternator Capacity (amps): 150
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity (qts): 14.3
Frame Type: - TBD -
Suspension Type - Front: Independent
Suspension Type - Rear: Trapezoidal
Spring Capacity - Front (lbs): Coil-Spring
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): - TBD -
Axle Capacity - Rear (lbs): - TBD -
Axle Ratio (:1) - Rear: - TBD -
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): 1.42
Front Tire Size: P255/70R18
Rear Tire Size: P255/70R18
Spare Tire Size: - TBD -
Front Tire Capacity (lbs): - TBD -
Rear Tire Capacity (lbs): - TBD -
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 18 x - TBD -
Rear Wheel Size (in): 18 x - TBD -
Spare Wheel Size (in): - TBD -
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: - TBD -
Steering Type: Pwr Rack & Pinion
Steering Ratio (:1), On Center: 18.1
Steering Ratio (:1), At Lock: 3.71
Turning Diameter - Curb to Curb (ft): 44.0
Turning Diameter - Wall to Wall (ft): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.9 x - TBD -
Rear Brake Rotor Diam x Thickness (in): 13.6 x - TBD -
Fuel Tank Capacity, Approx (gal): 26.4
Wheelbase (in): 145.7
Length, Overall w/o rear bumper (in): 228.7
Width, Max w/o mirrors (in): 79.9
Height, Overall (in): 76.0
Overhang, Front (in): 35.1
Overhang, Rear w/o bumper (in): 47.9
Front Bumper to Back of Cab (in): 142.6
Cab to Axle (in): 38.9
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): - TBD -
Ground Clearance, Rear (in): - TBD -
Cargo Box Length @ Floor (in): 83.3
Cargo Box Width @ Top, Rear (in): 62.6
Cargo Box Width @ Floor (in): 64.8
Cargo Box Width @ Wheelhousings (in): 50.0
Cargo Box (Area) Height (in): 22.9
Tailgate Width (in): - TBD -
Cargo Volume (ft³): - TBD -
Ext'd Cab Cargo Volume (ft³): - TBD -
