4-Piece Carpeted Floor Mat Set (Ppo)
High 4 Selector Switch (Req: Pp Pwr Pkg)
Cloth Bucket Seats W/Headrests -Inc: Center Console Box (N/A W/Ll Limited Pkg)
Convenience Pkg -Inc: Pwr Windows/Door Locks/Mirrors
Keyless Entry
Fabric Door Trim Molding
Glove Box/Front Personal Lamp
Cruise Control
Sliding Rear Window (N/A W/Qx Sr5 Pkg)
Toyota Racing Development (Trd) Offroad Pkg -Inc: Locking Rear Differential
P265/70R16 Tires
16" X 7" Aluminum Wheels
Offroad Suspension
Black Overfenders
"Off Road" Badging (Req: Ta Tachometer
Bu Bucket Seats) (Req: Pp Pwr Pkg Or Ll Limited Pkg) (N/A W/Vd Vehicle Stability Control)
Metallic Paint
Sr5 Pkg -Inc: Deluxe Etr AM/FM Stereo W/Cassette/CD Player
Tilt Steering Wheel
Chrome Grille/Bumpers
Variable Intermittent Wipers
Tachometer
Digital Clock
Visor Extensions & Mirrors
Air Cond
Sr5 Badging (Req: St
Cw Or Aa Wheels)
50-State Emissions
New Arrival
deluxe ETR AM/FM stereo w/cassette/CD player, tilt steering wheel, chrome grille/bumpers, variable intermittent wipers, tachometer, digital clock, visor extensions & mirrors, air cond, SR5 badging (REQ: ST, CW or AA Wheels): LX
locking rear differential, P265/70R16 tires, 16" x 7" aluminum wheels, offroad suspension, black overfenders, "Off Road" badging (REQ: TA Tachometer, BU Bucket Seats) (REQ: PP Pwr Pkg or LL Limited Pkg) (N/A w/VD Vehicle Stability Control): OF
pwr windows/door locks/mirrors, keyless entry, fabric door trim molding, glove box/front personal lamp, cruise control, sliding rear window (N/A w/QX SR5 Pkg): CQ
center console box (N/A w/LL Limited Pkg): BU
(REQ: PP Pwr Pkg): FB
(PPO): CF-N
NOTE: **ALL STANDARDS ARE 2004 UNLESS OTHERWISE NOTED**
MECHANICAL: 3.4L DOHC EFI 24-valve V6 engine
MECHANICAL: 4-wheel drive w/4WDemand system
MECHANICAL: 2-speed transfer case
MECHANICAL: 3.91 axle ratio
MECHANICAL: HD battery (2003)
MECHANICAL: Skid plates-inc: front suspension, transfer case, fuel tank
MECHANICAL: 121.9" wheelbase
MECHANICAL: 6.2' double-wall box
MECHANICAL: 5100# GVWR
MECHANICAL: Front tow hook
MECHANICAL: Independent coil-spring double-wishbone front suspension w/gas-filled shock absorbers
MECHANICAL: Rear leaf-spring suspension w/staggered gas-filled shock absorbers
MECHANICAL: Front stabilizer bar
MECHANICAL: 15" x 6" styled steel wheels
MECHANICAL: Full-size spare tire
MECHANICAL: Pwr rack & pinion steering
MECHANICAL: Pwr ventilated front disc/rear drum brakes w/rear load-sensing proportioning valve
MECHANICAL: 4-wheel anti-lock brakes (ABS)
MECHANICAL: 18.5 gallon fuel tank
EXTERIOR: Black painted rear bumper
EXTERIOR: Front/rear mudguards
EXTERIOR: Aerodynamic multi-reflector halogen headlamps
EXTERIOR: Rear center high-mounted stop lamp
EXTERIOR: Tilt-out rear quarter windows
EXTERIOR: Black manual remote mirrors
EXTERIOR: Tinted windshield glass
EXTERIOR: Mist-cycle windshield wipers
INTERIOR: Forward-facing rear jump seats
INTERIOR: Fabric seat trim
INTERIOR: Sculpted door trim w/cloth inserts, dual armrests, map pockets
INTERIOR: Full carpeting
INTERIOR: Dual cup holders
INTERIOR: Instrumentation-inc: coolant temp, warning lights
INTERIOR: Deluxe AM/FM radio w/cassette-inc: (6) speakers
INTERIOR: Dual auxiliary pwr outlets
SAFETY: 4-wheel anti-lock brakes (ABS)
SAFETY: Driver/front passenger airbags
SAFETY: Passenger airbag cutoff switch
SAFETY: 3-point seat belts at outboard positions & center lap belt
SAFETY: Front adjustable shoulder belt anchors at outboard positions
SAFETY: Front seat belt pretensioners & force limiters
SAFETY: Child restraint system lower anchors on front passenger seat
SAFETY: Rear child restraint system
SAFETY: Side-door impact beams

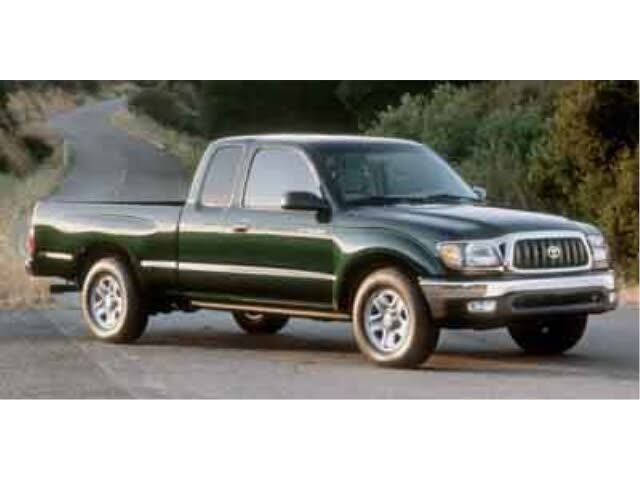

Toyota Tacoma
Body Style: Xtracab
Body Code: 121.9
Drivetrain: Four Wheel Drive
Trans Type: 5
Trans Description Cont.: Manual w/OD
First Gear Ratio (:1): 3.830
Second Gear Ratio (:1): 2.062
Third Gear Ratio (:1): 1.436
Fourth Gear Ratio (:1): 1.000
Fifth Gear Ratio (:1): 0.838
Reverse Ratio (:1): 4.220
Clutch Size (in): 9.8
Trans Power Take Off: - TBD -
Trans PTO Access: - TBD -
Transfer Case Model: - TBD -
Transfer Case Gear Ratio (:1), High: 1.00
Transfer Case Gear Ratio (:1), Low: 2.57
Transfer Case Power Take Off: - TBD -
Passenger Capacity: 4
Front Head Room (in): 38.7
Front Leg Room (in): 42.8
Front Shoulder Room (in): 53.9
Front Hip Room (in): 49.6
Second Head Room (in): 34.8
Second Leg Room (in): 27.2
Second Shoulder Room (in): 52.3
Second Hip Room (in): 48.8
Gross Axle Wt Rating - Front (lbs): - TBD -
Gross Axle Wt Rating - Rear (lbs): - TBD -
Curb Weight - Front (lbs): 1933
Curb Weight - Rear (lbs): 1582
Gross Vehicle Weight Rating Cap (lbs): 5100
Gross Combined Wt Rating (lbs): 9000
EPA Fuel Economy Est - City (MPG): 17
EPA Fuel Economy Est - Hwy (MPG): 20
Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
Dead Weight Hitch - Max Tongue Wt. (lbs): 350
Wt Distributing Hitch - Max Trailer Wt. (lbs): N/A
Wt Distributing Hitch - Max Tongue Wt. (lbs): N/A
Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
Engine Type: Gas V6
Displacement: 3.4L/208
Fuel System: EFI
SAE Net Horsepower @ RPM: 190 @ 4800
SAE Net Torque @ RPM: 220 @ 3600
Cold Cranking Amps @ 0° F (Primary): 356
Maximum Alternator Capacity (amps): 70
Maximum Alternator Watts: 1050
Total Cooling System Capacity (qts): 10.3
Frame Type: Ladder
Suspension Type - Front: Double-Wishbone
Suspension Type - Rear: Leaf Spring
Spring Capacity - Front (lbs): - TBD -
Spring Capacity - Rear (lbs): - TBD -
Axle Type - Front: Hypoid
Axle Type - Rear: Hypoid
Axle Capacity - Front (lbs): - TBD -
Axle Capacity - Rear (lbs): - TBD -
Axle Ratio (:1) - Front: 3.91
Axle Ratio (:1) - Rear: 3.91
Shock Absorber Diameter - Front (mm): 36
Shock Absorber Diameter - Rear (mm): 36
Stabilizer Bar Diameter - Front (in): 1.02
Front Tire Size: P265/70R16
Rear Tire Size: P265/70R16
Spare Tire Size: P265/70R16
Front Tire Capacity (lbs): - TBD -
Rear Tire Capacity (lbs): - TBD -
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 16 x 7
Rear Wheel Size (in): 16 x 7
Spare Wheel Size (in): 16 x 7
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Pwr Rack & Pinion
Steering Ratio (:1), On Center: 19.4
Steering Ratio (:1), At Lock: 3.5
Turning Diameter - Curb to Curb (ft): 40.0
Turning Diameter - Wall to Wall (ft): - TBD -
Brake Type: Pwr-Assisted
Brake ABS System: Four-Wheel
Disc - Front (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 11.6 x 0.87
Drum - Rear (Yes or ): Yes
Rear Drum Diam x Width (in): 11.6 x - TBD -
Fuel Tank Capacity, Approx (gal): 18.5
Fuel Tank Location: Midship
Wheelbase (in): 121.9
Length, Overall w/o rear bumper (in): 202.9
Width, Max w/o mirrors (in): 66.5
Height, Overall (in): 67.5
Overhang, Front (in): 31.5
Overhang, Rear w/o bumper (in): 48.8
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): - TBD -
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 10.8
Ground Clearance, Rear (in): 10.8
Cargo Box Length @ Floor (in): 74.5
Cargo Box Width @ Top, Rear (in): 57.9
Cargo Box Width @ Floor (in): 57.9
Cargo Box Width @ Wheelhousings (in): 40.9
Cargo Box (Area) Height (in): 15.9
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 39.7
Ext'd Cab Cargo Volume (ft³): 15.0
426,346 km
Automatic
4WD
Gasoline
3.4L V6 Cylinder Engine
6 Cylinder
Pickup
Owners
